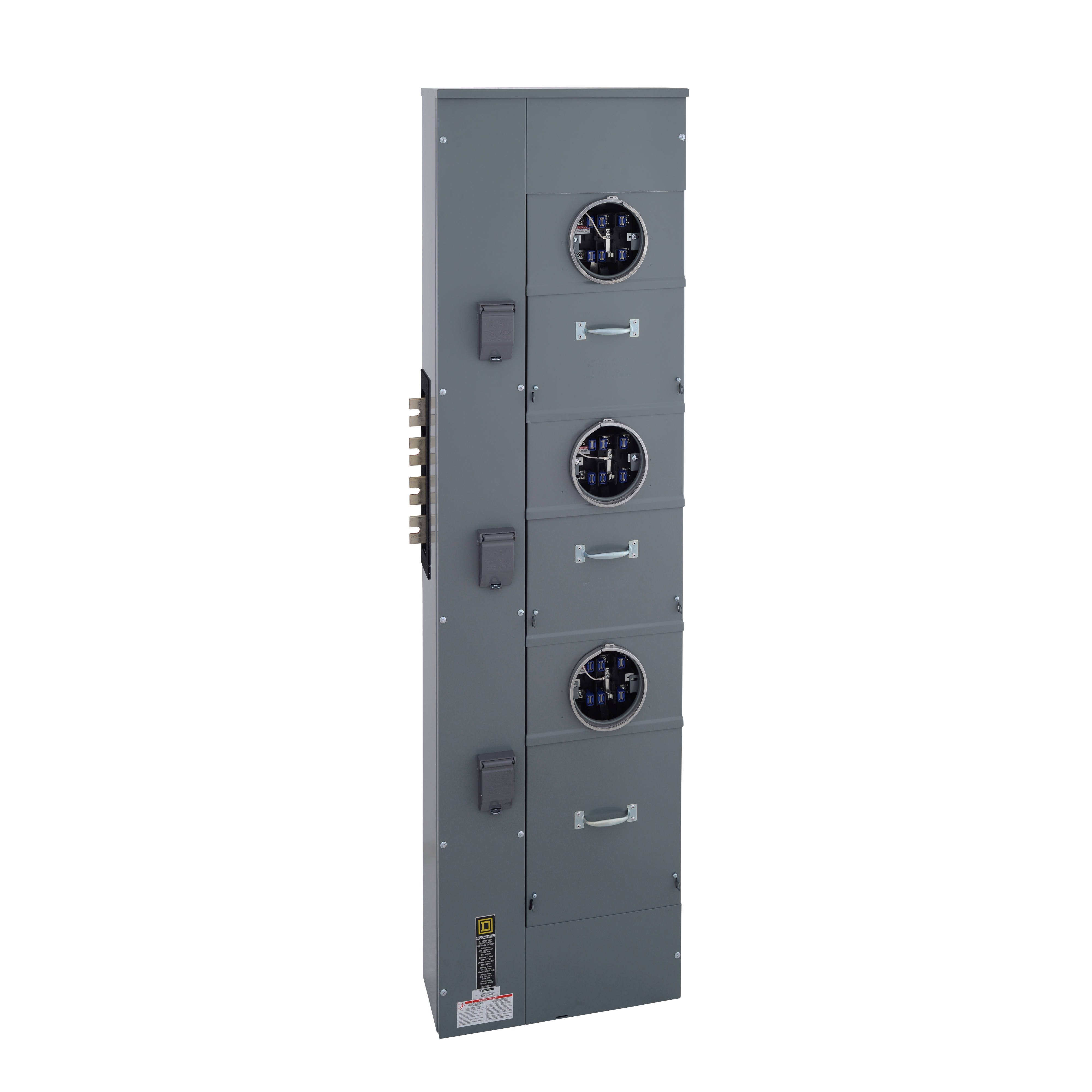

Square D™ Meter-Pak™ EZMT333225 EZM 3-Position Meter Center Branch Unit With Test Block Bypass, 208Y/120 VAC, 240/120 Delta VAC, 225 A, 3 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ Meter-Pak™ EZMT333225 EZM 3-Position Meter Center Branch Unit With Test Block Bypass, 208Y/120 VAC, 240/120 Delta VAC, 225 A, 3 ph Phase, NEMA 3R Enclosure
SKUPDW~6399952
MFGR #EZMT333225
Your Cost: $4,557.85/ea
List: Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Position, Series: EZM, 208Y/120 VAC, 240/120 Delta VAC, 225 A, 3 ph Phase, 3 Jaws, Ring Cover, Surface Mount, NEMA 3R, 79.56 in H x 22.42 in W x 9.38 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Position, Series: EZM, 208Y/120 VAC, 240/120 Delta VAC, 225 A, 3 ph Phase, 3 Jaws, Ring Cover, Surface Mount, NEMA 3R, 79.56 in H x 22.42 in W x 9.38 in D
Alternate Catalog Number EZMT333225 Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Bypass Type Test block bypass Catalog Number EZMT333225 Country of Origin MX Cover Type Ring Currency USD Dimensions 79.56 in H x 22.42 in W x 9.38 in D Enclosure NEMA 3R EU RoHS Indicator Y Gross Volume Per Pack 24960.00 Gross Volume per Pack Metric 409019.52 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.9163 lb Gross Weight per Pack Metric 91.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 30.5000 in Height [Metric] 30.5000 cm Item Group 00020 Length 203.2000 in Length [Metric] 203.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358713&lang=en-us Mounting Surface Mount Mounting Type Surface Number of Jaws 3 Number of Meter Positions 3 Returnable Y Series EZM Size 22.42 IN,79.56 IN in Standard UL LISTED Sub Brand METER-PAK Substitute Product Catalog Number 5J Type RINGED METER CENTER UNSPSC 39121102 UPC 11 78590157395 UPC 12 785901573951 Warranty Description Contractual Warranty:18 months Width 66.0000 in Width [Metric] 66.0000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 225 A Enclosure Type NEMA 3R Phase 3 Voltage Rating 120/208/240 VAC For used as service equipment and use on the line side of service equipment TEST BLOCK BYPASS RING TYPE 3 phase 4-wire service/load feed Aluminum horizontal cross busbar Without jaw release
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZMT333225 |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | Test block bypass |
| Catalog Number | EZMT333225 |
| Country of Origin | MX |
| Cover Type | Ring |
| Currency | USD |
| Dimensions | 79.56 in H x 22.42 in W x 9.38 in D |
| Enclosure | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 24960.00 |
| Gross Volume per Pack Metric | 409019.52 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.9163 lb |
| Gross Weight per Pack Metric | 91.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 30.5000 in |
| Height [Metric] | 30.5000 cm |
| Item Group | 00020 |
| Length | 203.2000 in |
| Length [Metric] | 203.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358713&lang=en-us |
| Mounting | Surface Mount |
| Mounting Type | Surface |
| Number of Jaws | 3 |
| Number of Meter Positions | 3 |
| Returnable | Y |
| Series | EZM |
| Size | 22.42 IN,79.56 IN in |
| Standard | UL LISTED |
| Sub Brand | METER-PAK |
| Substitute Product Catalog Number | 5J |
| Type | RINGED METER CENTER |
| UNSPSC | 39121102 |
| UPC 11 | 78590157395 |
| UPC 12 | 785901573951 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 66.0000 in |
| Width [Metric] | 66.0000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 225 A |
| Enclosure Type | NEMA 3R |
| Phase | 3 |
| Voltage Rating | 120/208/240 VAC |
| For used as service equipment and use on the line side of service equipment |
| TEST BLOCK BYPASS RING TYPE |
| 3 phase 4-wire service/load feed |
| Aluminum horizontal cross busbar |
| Without jaw release |
