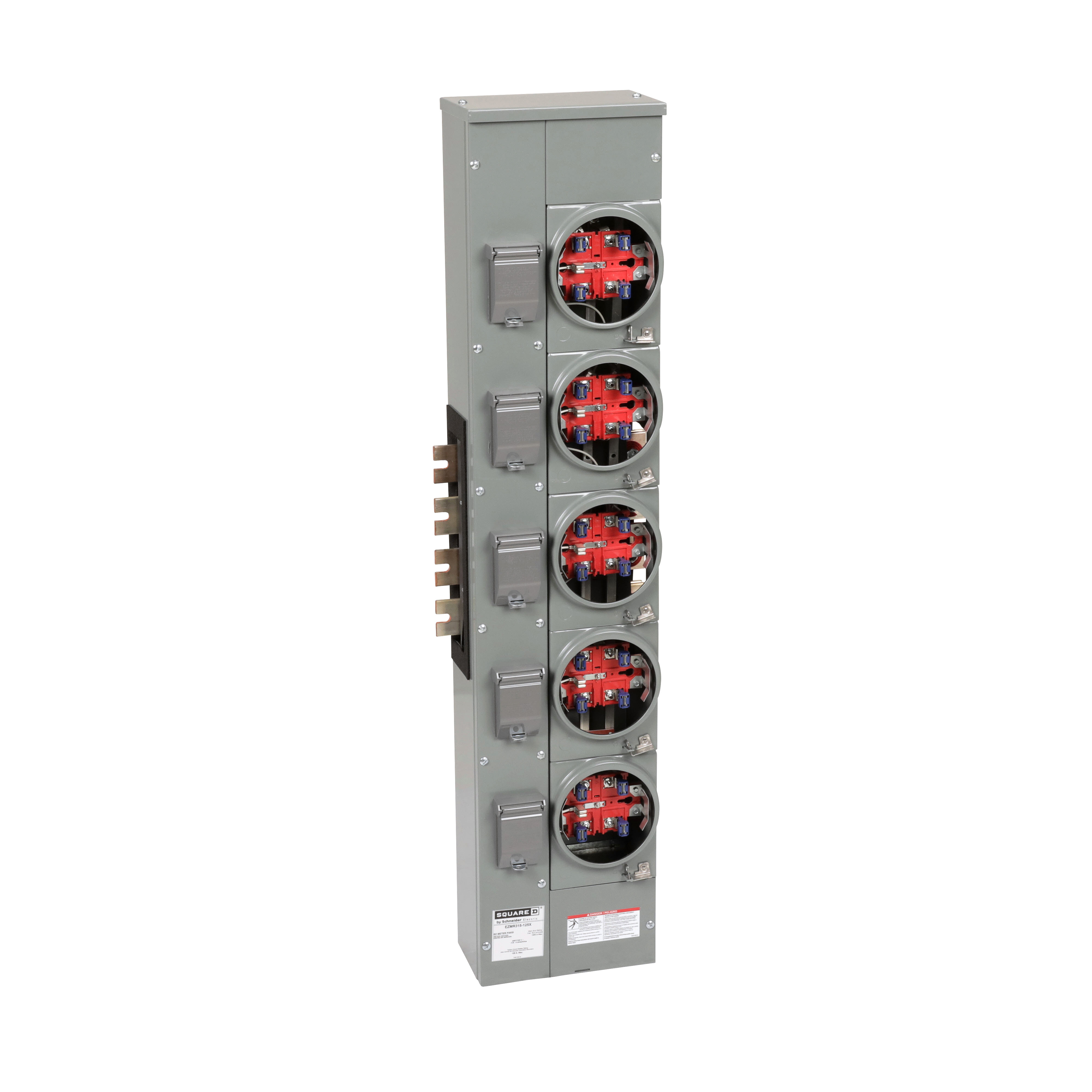

Square D™ Meter-Pak™ EZMR315125X 5-Position Meter Center Branch Unit, 208Y/120 VAC, 125 A, 1/3 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ Meter-Pak™ EZMR315125X 5-Position Meter Center Branch Unit, 208Y/120 VAC, 125 A, 1/3 ph Phase, NEMA 3R Enclosure
SKUPDW~6399921
MFGR #EZMR315125X
Your Cost: $2,214.47/ea
List: Square D™ Meter-Pak™ Meter Center Branch Unit, 5-Position, Series: EZM, 208Y/120 VAC, 125 A, 1/3 ph, 5 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 57.12 in H x 12.25 in W x 7.09 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 5-Position, Series: EZM, 208Y/120 VAC, 125 A, 1/3 ph, 5 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 57.12 in H x 12.25 in W x 7.09 in D
Alternate Catalog Number EZMR315125X Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Bypass Type No Bypass Catalog Number EZMR315125X Country of Origin US Cover Type Ringless Currency USD Dimensions 57.12 in H x 12.25 in W x 7.09 in D Enclosure NEMA 3R,STEEL EU RoHS Indicator Y Gross Weight Per Pack 0.0454 lb Gross Weight per Pack Metric 4.54 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 145.1000 in Height [Metric] 145.1000 cm Item Group 00020 Length 18.0000 in Length [Metric] 18.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358635&lang=en-us Mounting Surface Mounting Type Surface Number of Jaws 5 Number of Meter Positions 5 Returnable N Series EZM Size 12.25 IN,57.12 IN in Standard UL LISTED Sub Brand METER-PAK Substitute Product Catalog Number EZM31600TB Type METER CENTER BRANCH UNIT,RINGLESS UNSPSC 39121102 UPC 11 78590137386 UPC 12 785901373865 Warranty Description Contractual Warranty:18 months Width 31.1000 in Width [Metric] 31.1000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1200 A,125 A Enclosure Type NEMA 3R Phase 1 PHASE OUT-3 PHASE IN Voltage Rating 120/208 VAC For used as service equipment and use on the line side of service equipment ALUMINIUM/COPPER BUSBAR 3 phase 4-wire service feed, 1 phase 3-wire load feed 1200 A copper horizontal cross busbar Without jaw release Without bypass
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZMR315125X |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | No Bypass |
| Catalog Number | EZMR315125X |
| Country of Origin | US |
| Cover Type | Ringless |
| Currency | USD |
| Dimensions | 57.12 in H x 12.25 in W x 7.09 in D |
| Enclosure | NEMA 3R,STEEL |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0454 lb |
| Gross Weight per Pack Metric | 4.54 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 145.1000 in |
| Height [Metric] | 145.1000 cm |
| Item Group | 00020 |
| Length | 18.0000 in |
| Length [Metric] | 18.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358635&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number of Jaws | 5 |
| Number of Meter Positions | 5 |
| Returnable | N |
| Series | EZM |
| Size | 12.25 IN,57.12 IN in |
| Standard | UL LISTED |
| Sub Brand | METER-PAK |
| Substitute Product Catalog Number | EZM31600TB |
| Type | METER CENTER BRANCH UNIT,RINGLESS |
| UNSPSC | 39121102 |
| UPC 11 | 78590137386 |
| UPC 12 | 785901373865 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 31.1000 in |
| Width [Metric] | 31.1000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1200 A,125 A |
| Enclosure Type | NEMA 3R |
| Phase | 1 PHASE OUT-3 PHASE IN |
| Voltage Rating | 120/208 VAC |
| For used as service equipment and use on the line side of service equipment |
| ALUMINIUM/COPPER BUSBAR |
| 3 phase 4-wire service feed, 1 phase 3-wire load feed |
| 1200 A copper horizontal cross busbar |
| Without jaw release |
| Without bypass |
