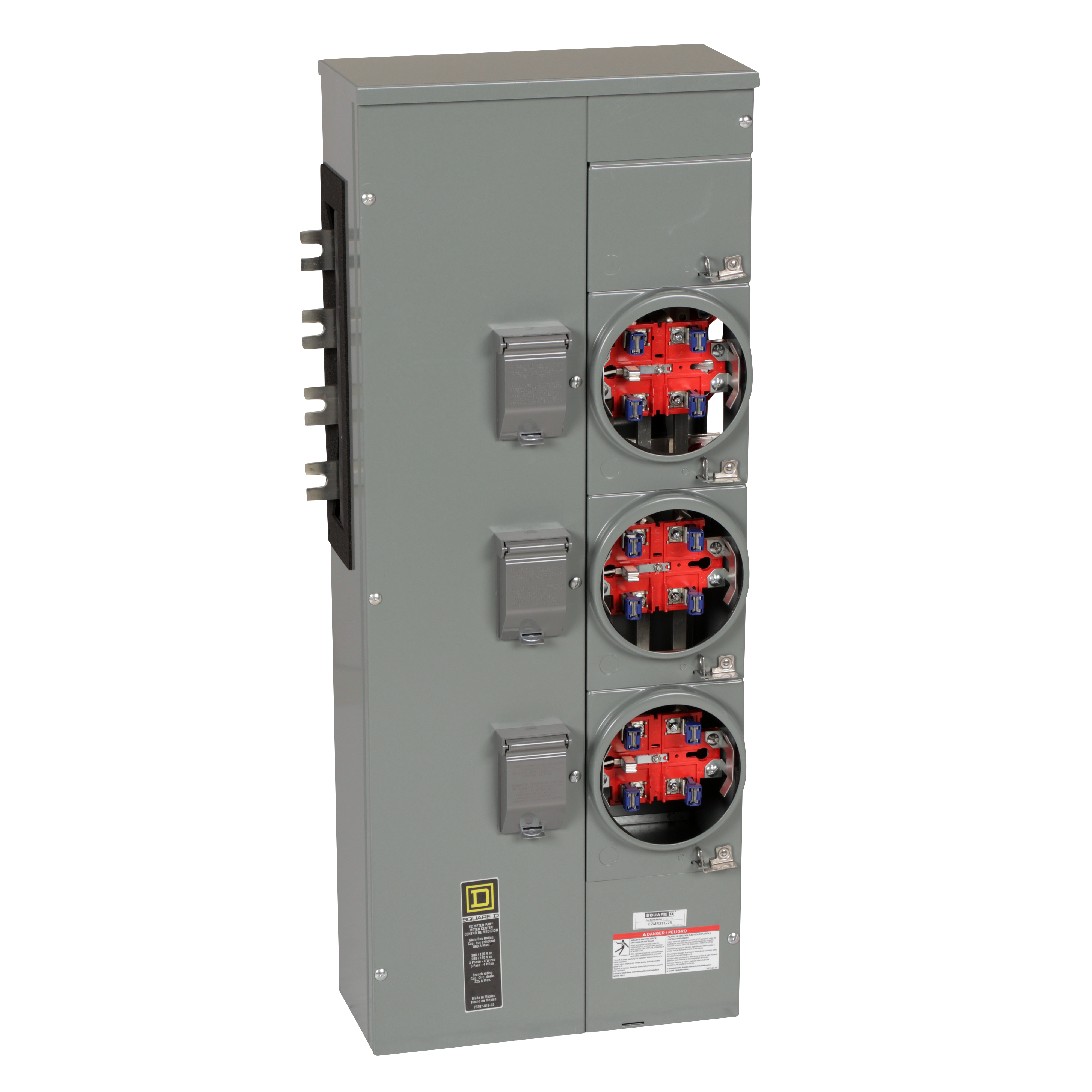

Square D™ Meter-Pak™ EZMR313225 EZM 3-Position Meter Center Branch Unit, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ Meter-Pak™ EZMR313225 EZM 3-Position Meter Center Branch Unit, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
SKUPDW~6399906
MFGR #EZMR313225
Your Cost: $1,235.01/ea
List: Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph Phase, 3 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 43.41 in H x 17.38 in W x 8.09 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph Phase, 3 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 43.41 in H x 17.38 in W x 8.09 in D
Alternate Catalog Number EZMR313225 Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Bypass Type No Bypass Catalog Number EZMR313225 Country of Origin MX Cover Type Ringless Currency USD Depth 8.09 in Dimensions 43.41 in H x 17.38 in W x 8.09 in D Enclosure Steel EU RoHS Indicator Y Gross Volume Per Pack 8546.67 Gross Volume per Pack Metric 140054.28 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.3538 lb Gross Weight per Pack Metric 35.38 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 24.6000 in Height [Metric] 24.6000 cm Item Group 00020 Length 113.0000 in Length [Metric] 113.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358579&lang=en-us Mounting Surface Mounting Type Surface Number of Jaws 3 Number of Meter Positions 3 Returnable Y Series EZM Size 43.41 in Standard UL LISTED Sub Brand METER-PAK Substitute Product Catalog Number EZMSK2 Type 3-Position UNSPSC 39121102 UPC 11 78590133301 UPC 12 785901333012 Warranty Description Contractual Warranty:18 months Width 50.3000 in Width [Metric] 50.3000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 225 A Enclosure Type NEMA 3R Phase 1/3 Voltage Rating 208Y/120 VAC For used as service equipment and use on the line side of service equipment Aluminium busbar 3 phase 4-wire service feed, 1 phase 3-wire load feed Aluminum horizontal cross busbar Without jaw release Without bypass
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZMR313225 |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | No Bypass |
| Catalog Number | EZMR313225 |
| Country of Origin | MX |
| Cover Type | Ringless |
| Currency | USD |
| Depth | 8.09 in |
| Dimensions | 43.41 in H x 17.38 in W x 8.09 in D |
| Enclosure | Steel |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 8546.67 |
| Gross Volume per Pack Metric | 140054.28 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.3538 lb |
| Gross Weight per Pack Metric | 35.38 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 24.6000 in |
| Height [Metric] | 24.6000 cm |
| Item Group | 00020 |
| Length | 113.0000 in |
| Length [Metric] | 113.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358579&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number of Jaws | 3 |
| Number of Meter Positions | 3 |
| Returnable | Y |
| Series | EZM |
| Size | 43.41 in |
| Standard | UL LISTED |
| Sub Brand | METER-PAK |
| Substitute Product Catalog Number | EZMSK2 |
| Type | 3-Position |
| UNSPSC | 39121102 |
| UPC 11 | 78590133301 |
| UPC 12 | 785901333012 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 50.3000 in |
| Width [Metric] | 50.3000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 225 A |
| Enclosure Type | NEMA 3R |
| Phase | 1/3 |
| Voltage Rating | 208Y/120 VAC |
| For used as service equipment and use on the line side of service equipment |
| Aluminium busbar |
| 3 phase 4-wire service feed, 1 phase 3-wire load feed |
| Aluminum horizontal cross busbar |
| Without jaw release |
| Without bypass |
