Square D™

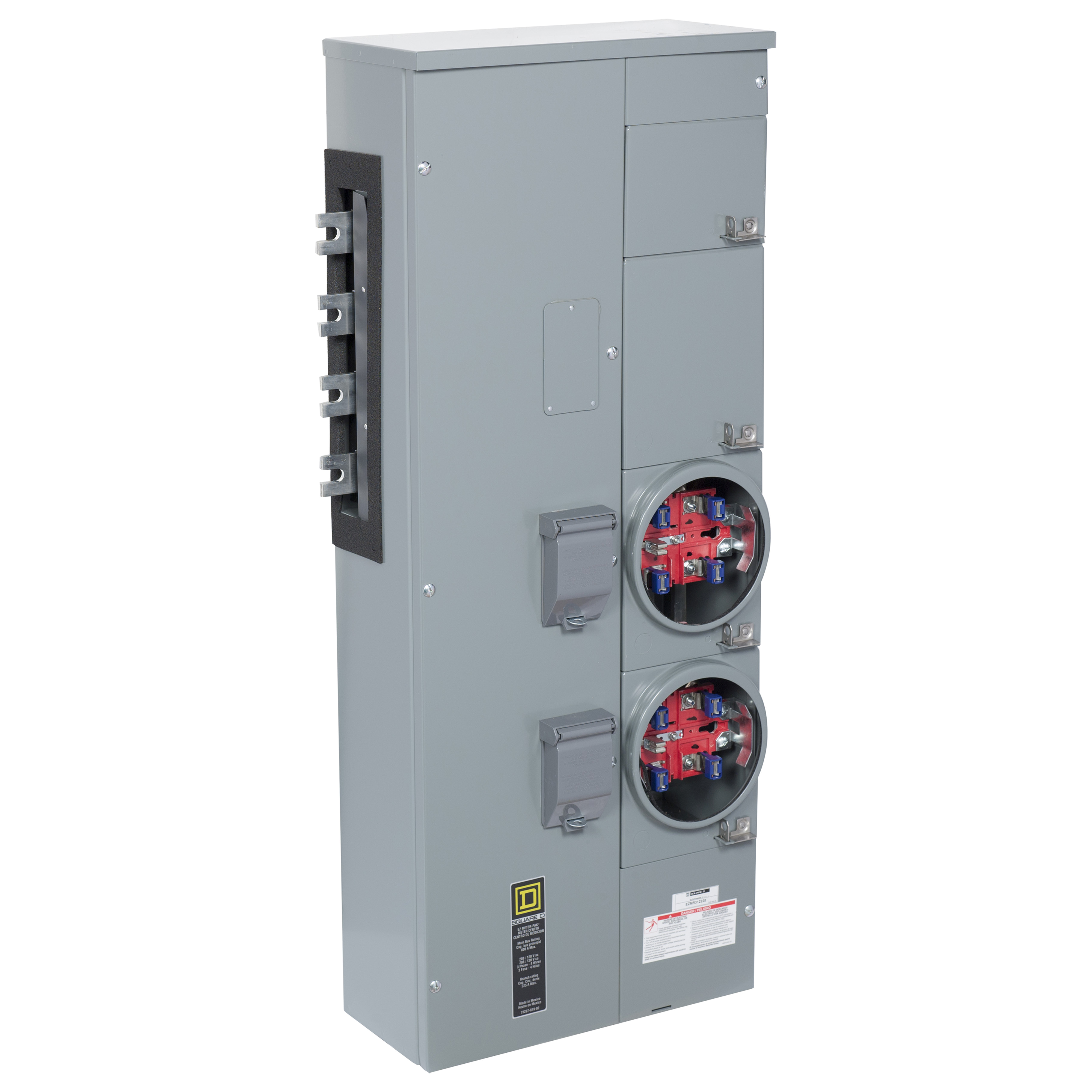

Square D™ Meter-Pak™ EZMR312225X 2-Position Meter Center Branch Unit, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™
Square D™ Meter-Pak™ EZMR312225X 2-Position Meter Center Branch Unit, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
SKUPDW~6399899
MFGR #EZMR312225X
Your Cost: $2,044.49/ea
List: Square D™ Meter-Pak™ Meter Center Branch Unit, 2-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph, 2 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 43.41 in H x 17.38 in W x 8.09 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 2-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph, 2 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 43.41 in H x 17.38 in W x 8.09 in D
Alternate Catalog Number EZMR312225X Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Bypass Type No Bypass Catalog Number EZMR312225X Country of Origin MX Cover Type Ringless Currency USD Depth 8.09 in Dimensions 43.41 in H x 17.38 in W x 8.09 in D Enclosure Steel EU RoHS Indicator Y Gross Weight Per Pack 0.3629 lb Gross Weight per Pack Metric 36.29 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 110.3000 in Height [Metric] 110.3000 cm Item Group 00020 Length 20.5000 in Length [Metric] 20.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358555&lang=en-us Mounting Surface Mounting Type Surface Number of Jaws 2 Number of Meter Positions 2 Returnable N Series EZM Size 43.41 in Standard UL LISTED Sub Brand METER-PAK Type 2-Position UNSPSC 39121102 UPC 11 78590154655 UPC 12 785901546559 Warranty Description Contractual Warranty:18 months Width 44.1000 in Width [Metric] 44.1000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 225 Enclosure Type NEMA 3R Phase 1/3 Voltage Rating 208Y/120 VAC For used as service equipment and use on the line side of service equipment Aluminium/copper busbar 3 phase 4-wire service feed, 1 phase 3-wire load feed 1200 A copper horizontal cross busbar Without jaw release Without bypass
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZMR312225X |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | No Bypass |
| Catalog Number | EZMR312225X |
| Country of Origin | MX |
| Cover Type | Ringless |
| Currency | USD |
| Depth | 8.09 in |
| Dimensions | 43.41 in H x 17.38 in W x 8.09 in D |
| Enclosure | Steel |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.3629 lb |
| Gross Weight per Pack Metric | 36.29 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 110.3000 in |
| Height [Metric] | 110.3000 cm |
| Item Group | 00020 |
| Length | 20.5000 in |
| Length [Metric] | 20.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358555&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number of Jaws | 2 |
| Number of Meter Positions | 2 |
| Returnable | N |
| Series | EZM |
| Size | 43.41 in |
| Standard | UL LISTED |
| Sub Brand | METER-PAK |
| Type | 2-Position |
| UNSPSC | 39121102 |
| UPC 11 | 78590154655 |
| UPC 12 | 785901546559 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 44.1000 in |
| Width [Metric] | 44.1000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 225 |
| Enclosure Type | NEMA 3R |
| Phase | 1/3 |
| Voltage Rating | 208Y/120 VAC |
| For used as service equipment and use on the line side of service equipment |
| Aluminium/copper busbar |
| 3 phase 4-wire service feed, 1 phase 3-wire load feed |
| 1200 A copper horizontal cross busbar |
| Without jaw release |
| Without bypass |
