Square D™ Meter-Pak™ EZMR114125CUX 4-Position Meter Center Branch Unit, 120/240 VAC, 125 A, 1 ph Phase, NEMA 3R Enclosure

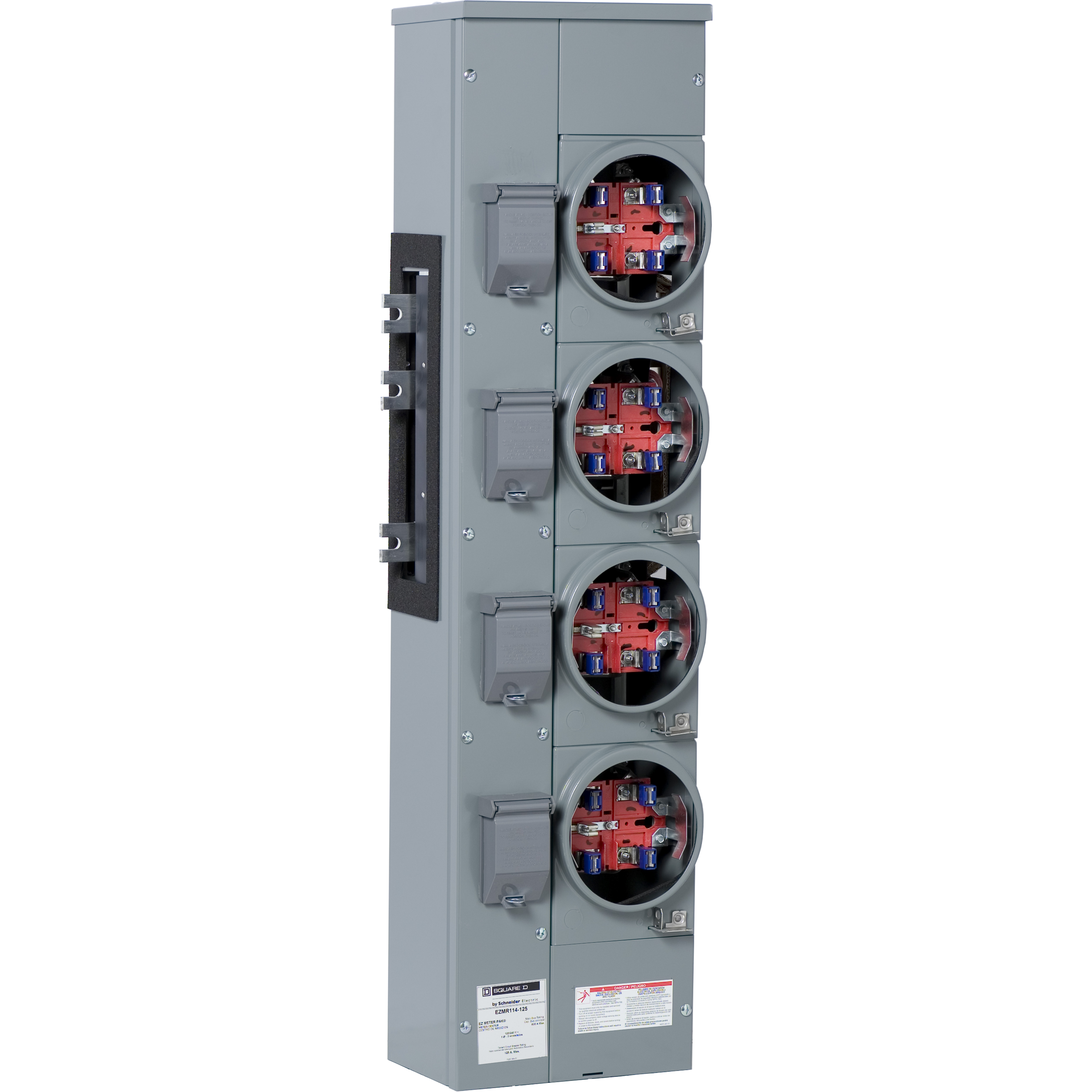

Custom_Product_Images_Illustration
Square D™ Meter-Pak™ EZMR114125CUX 4-Position Meter Center Branch Unit, 120/240 VAC, 125 A, 1 ph Phase, NEMA 3R Enclosure
SKUPDW~6399887
MFGR #EZMR114125CUX
Your Cost: $1,262.88/ea
List: Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position, Series: EZM, 120/240 VAC, 125 A, 1 ph, 5 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 48.12 in H x 12.25 in W x 7.09 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position, Series: EZM, 120/240 VAC, 125 A, 1 ph, 5 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 48.12 in H x 12.25 in W x 7.09 in D
Alternate Catalog Number EZMR114125CUX Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Catalog Number EZMR114125CUX Country of Origin MX Currency USD Enclosure NEMA 3R,STEEL EU RoHS Indicator Y Gross Weight Per Pack 82.5200 lb Gross Weight per Pack Metric 37.43 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 48.0315 in Height [Metric] 122.2000 cm Item Group 00020 Length 7.0866 in Length [Metric] 18.0000 cm Material Copper busbar Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358505&lang=en-us Mounting Surface Returnable N Size 12.25 IN,48.12 IN,7.09 IN in Standard UL Listed Type METER CENTER BRANCH UNIT UNSPSC 39121103 UPC 11 78590118226 UPC 12 785901182269 Warranty Description Contractual Warranty:18 months Width 12.2047 in Width [Metric] 31.1000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Phase 1 PHASE IN-1 PHASE OUT Voltage Rating 120/240 VAC For used as service equipment and use on the line side of service equipment COPPER BUSBAR,NO BYPASS 1 ph 3-wire service/load feed 1200 A copper horizontal cross busbar Without bypass
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZMR114125CUX |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EZMR114125CUX |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 3R,STEEL |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 82.5200 lb |
| Gross Weight per Pack Metric | 37.43 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 48.0315 in |
| Height [Metric] | 122.2000 cm |
| Item Group | 00020 |
| Length | 7.0866 in |
| Length [Metric] | 18.0000 cm |
| Material | Copper busbar |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358505&lang=en-us |
| Mounting | Surface |
| Returnable | N |
| Size | 12.25 IN,48.12 IN,7.09 IN in |
| Standard | UL Listed |
| Type | METER CENTER BRANCH UNIT |
| UNSPSC | 39121103 |
| UPC 11 | 78590118226 |
| UPC 12 | 785901182269 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 12.2047 in |
| Width [Metric] | 31.1000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Phase | 1 PHASE IN-1 PHASE OUT |
| Voltage Rating | 120/240 VAC |
| For used as service equipment and use on the line side of service equipment |
| COPPER BUSBAR,NO BYPASS |
| 1 ph 3-wire service/load feed |
| 1200 A copper horizontal cross busbar |
| Without bypass |
