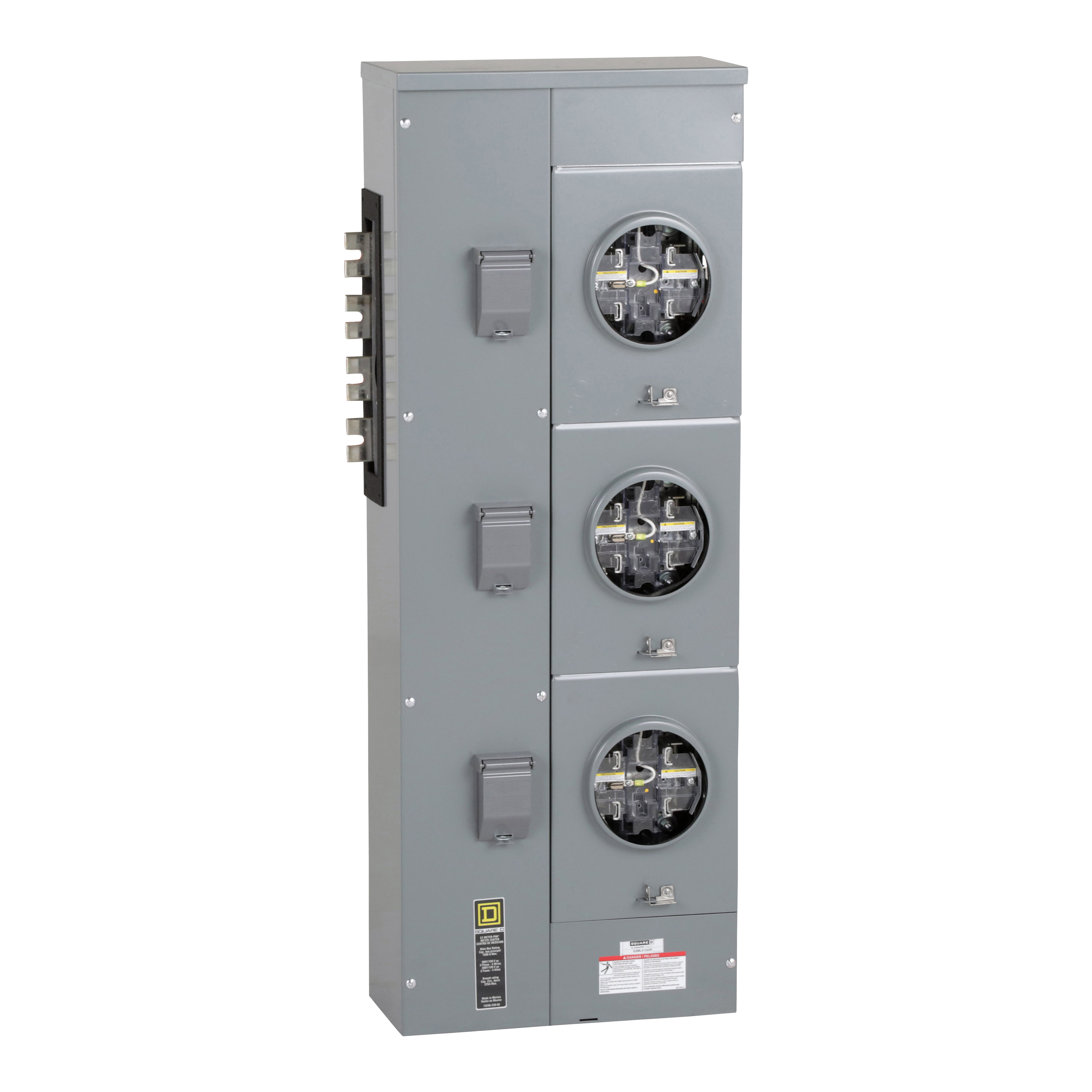

Square D™ Meter-Pak™ EZML313225 EZM 3-Position Meter Center Branch Unit With Lever Bypass, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™
Square D™ Meter-Pak™ EZML313225 EZM 3-Position Meter Center Branch Unit With Lever Bypass, 208Y/120 VAC, 225 A, 1/3 ph Phase, NEMA 3R Enclosure
SKU499626
MFGR #EZML313225
Your Cost: $3,063.08/ea
List: Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph Phase, 5/7 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 53.06 in H x 19.44 in W x 9.44 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Position, Series: EZM, 208Y/120 VAC, 225 A, 1/3 ph Phase, 5/7 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 53.06 in H x 19.44 in W x 9.44 in D
Alternate Catalog Number EZML313225 Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Bypass Type Lever Bypass Catalog Number EZML313225 Country of Origin US Cover Type Ringless Currency USD Depth 9.44 in Dimensions 53.06 in H x 19.44 in W x 9.44 in D Enclosure Steel EU RoHS Indicator Y Gross Volume Per Pack 13006.98 Gross Volume per Pack Metric 213145.38 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 159.0000 lb Gross Weight per Pack Metric 72.12 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 28.1940 in Height [Metric] 28.2000 cm Item Group 00020 Length 137.1600 in Length [Metric] 137.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358369&lang=en-us Mounting Surface Mounting Type Surface Number of Meter Positions 3 Returnable Y Series EZM Size 53.06 in Standard UL Listed Sub Brand METER-PAK Type 3-Position UNSPSC 39121102 UPC 11 78590140874 UPC 12 785901408741 Warranty Description Contractual Warranty:18 months Width 55.1180 in Width [Metric] 55.1000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 225 Enclosure Type NEMA 3R Phase 1/3 Voltage Rating 208Y/120 VAC For used as service equipment and use on the line side of service equipment Aluminium/copper busbar 3 phase 4-wire service feed, 1 phase 3-wire load feed Aluminum horizontal cross busbar
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZML313225 |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | Lever Bypass |
| Catalog Number | EZML313225 |
| Country of Origin | US |
| Cover Type | Ringless |
| Currency | USD |
| Depth | 9.44 in |
| Dimensions | 53.06 in H x 19.44 in W x 9.44 in D |
| Enclosure | Steel |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 13006.98 |
| Gross Volume per Pack Metric | 213145.38 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 159.0000 lb |
| Gross Weight per Pack Metric | 72.12 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 28.1940 in |
| Height [Metric] | 28.2000 cm |
| Item Group | 00020 |
| Length | 137.1600 in |
| Length [Metric] | 137.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358369&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number of Meter Positions | 3 |
| Returnable | Y |
| Series | EZM |
| Size | 53.06 in |
| Standard | UL Listed |
| Sub Brand | METER-PAK |
| Type | 3-Position |
| UNSPSC | 39121102 |
| UPC 11 | 78590140874 |
| UPC 12 | 785901408741 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 55.1180 in |
| Width [Metric] | 55.1000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 225 |
| Enclosure Type | NEMA 3R |
| Phase | 1/3 |
| Voltage Rating | 208Y/120 VAC |
| For used as service equipment and use on the line side of service equipment |
| Aluminium/copper busbar |
| 3 phase 4-wire service feed, 1 phase 3-wire load feed |
| Aluminum horizontal cross busbar |
