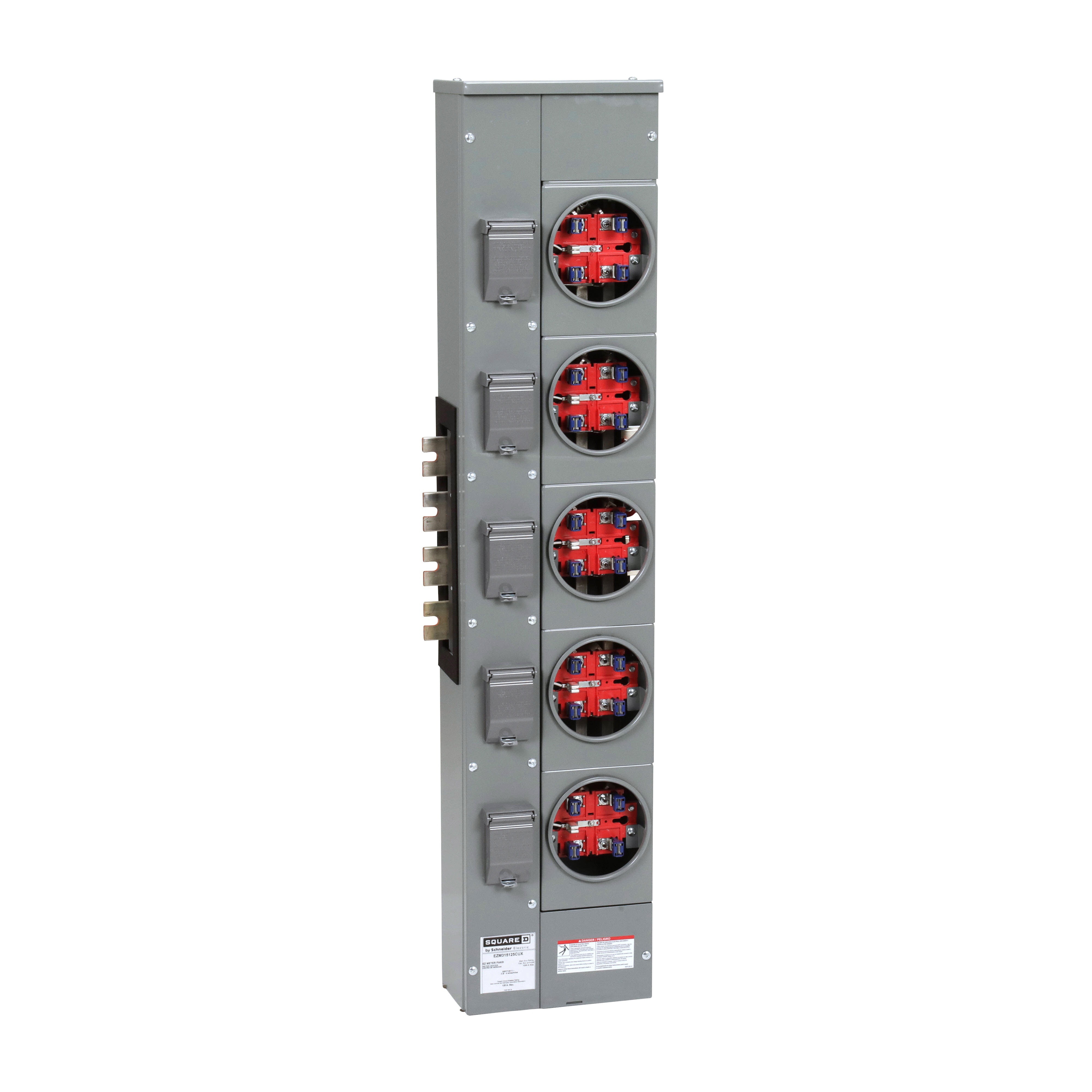

Square D™ Meter-Pak™ EZM315125CUX 5-Position Meter Center Branch Unit, 208Y/120 VAC, 125 A, 1/3 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™ Meter-Pak™ EZM315125CUX 5-Position Meter Center Branch Unit, 208Y/120 VAC, 125 A, 1/3 ph Phase, NEMA 3R Enclosure
SKUPDW~6400121
MFGR #EZM315125CUX
Your Cost: $4,261.49/ea
Square D™ Meter-Pak™ Meter Center Branch Unit, 5-Position, Series: EZM, 208Y/120 VAC, 125 A, 1/3 ph, 5 Jaws, Ring Cover, Surface Mount, NEMA 3R, 57.12 in H x 12.25 in W x 7.09 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 5-Position, Series: EZM, 208Y/120 VAC, 125 A, 1/3 ph, 5 Jaws, Ring Cover, Surface Mount, NEMA 3R, 57.12 in H x 12.25 in W x 7.09 in D
Alternate Catalog Number EZM315125CUX Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Catalog Number EZM315125CUX Country of Origin MX Cover Type Ring Currency USD Dimensions 57.12 in H x 12.25 in W x 7.09 in D Enclosure NEMA 3R,STEEL EU RoHS Indicator Y Gross Weight Per Pack 100.1100 lb Gross Weight per Pack Metric 45.41 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 57.0866 in Height [Metric] 145.1000 cm Item Group 00025 Length 7.0866 in Length [Metric] 18.0000 cm Material Copper busbar Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357751&lang=en-us Mounting Surface Mounting Type Surface Number of Jaws 5 Returnable N Series EZM Size 12.25 IN,57.12 IN,7.09 IN in Standard UL Listed Substitute Product Catalog Number 5J Type METER CENTER BRANCH UNIT UNSPSC 39121103 UPC 11 78590119777 UPC 12 785901197775 Upsell Product Catalog Number EZM31200GCBUMS Warranty Description Contractual Warranty:18 months Width 12.2047 in Width [Metric] 31.1000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Enclosure Type NEMA 3R Phase 1 PHASE OUT-3 PHASE IN Voltage Rating 120/208 VAC For used as service equipment and use on the line side of service equipment COPPER BUSBAR,NO BYPASS 3 phase 4-wire service feed, 1 phase 3-wire load feed 1200 A copper horizontal cross busbar Without bypass
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZM315125CUX |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EZM315125CUX |
| Country of Origin | MX |
| Cover Type | Ring |
| Currency | USD |
| Dimensions | 57.12 in H x 12.25 in W x 7.09 in D |
| Enclosure | NEMA 3R,STEEL |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 100.1100 lb |
| Gross Weight per Pack Metric | 45.41 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 57.0866 in |
| Height [Metric] | 145.1000 cm |
| Item Group | 00025 |
| Length | 7.0866 in |
| Length [Metric] | 18.0000 cm |
| Material | Copper busbar |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357751&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number of Jaws | 5 |
| Returnable | N |
| Series | EZM |
| Size | 12.25 IN,57.12 IN,7.09 IN in |
| Standard | UL Listed |
| Substitute Product Catalog Number | 5J |
| Type | METER CENTER BRANCH UNIT |
| UNSPSC | 39121103 |
| UPC 11 | 78590119777 |
| UPC 12 | 785901197775 |
| Upsell Product Catalog Number | EZM31200GCBUMS |
| Warranty Description | Contractual Warranty:18 months |
| Width | 12.2047 in |
| Width [Metric] | 31.1000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Enclosure Type | NEMA 3R |
| Phase | 1 PHASE OUT-3 PHASE IN |
| Voltage Rating | 120/208 VAC |
| For used as service equipment and use on the line side of service equipment |
| COPPER BUSBAR,NO BYPASS |
| 3 phase 4-wire service feed, 1 phase 3-wire load feed |
| 1200 A copper horizontal cross busbar |
| Without bypass |
