Square D™

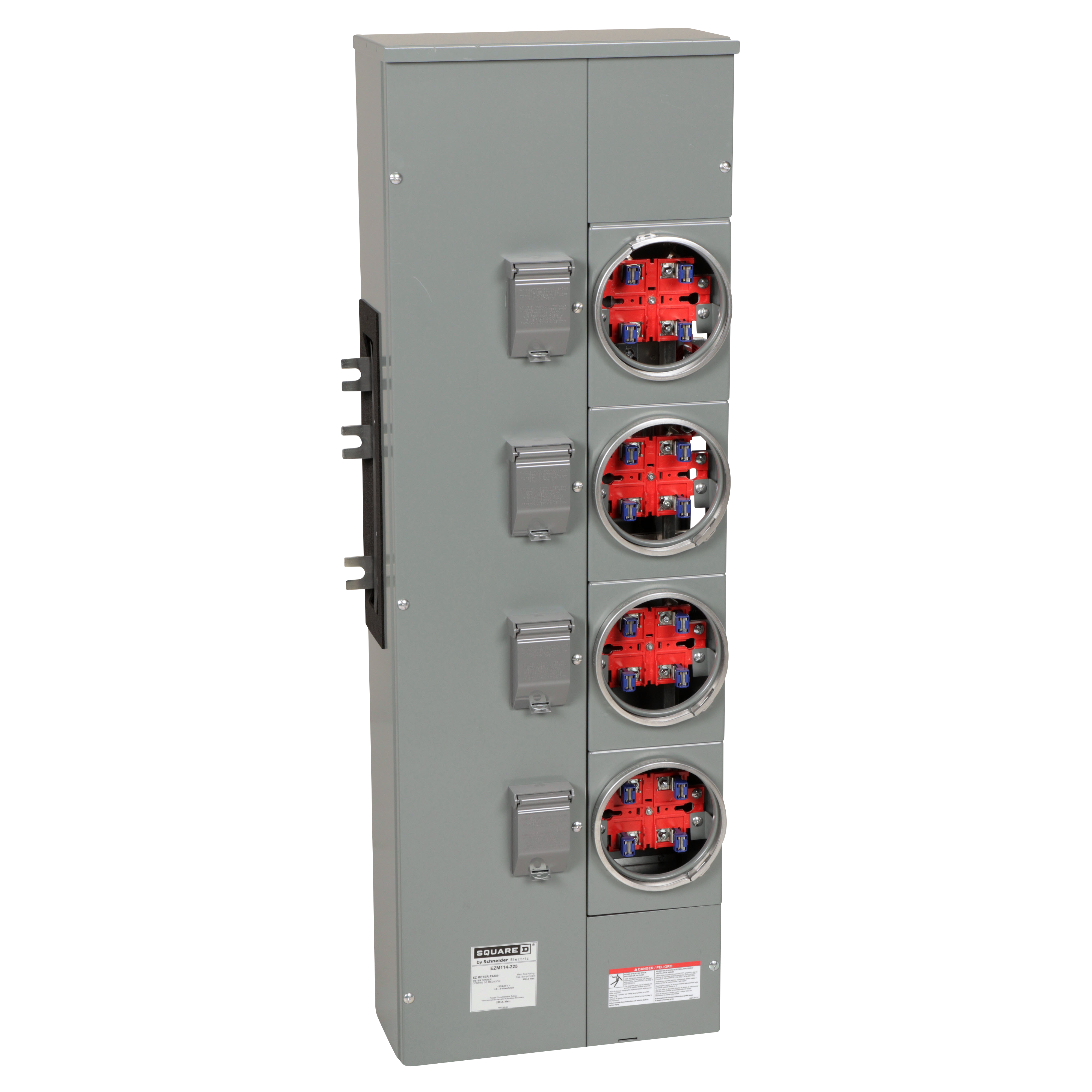

Square D™ Meter-Pak™ EZM114225 EZM 4-Position Meter Center Branch Unit, 120/240 VAC, 225 A, 1 ph Phase, NEMA 3R Enclosure
Custom_Product_Images_Illustration
Square D™
Square D™ Meter-Pak™ EZM114225 EZM 4-Position Meter Center Branch Unit, 120/240 VAC, 225 A, 1 ph Phase, NEMA 3R Enclosure
SKU1190745
MFGR #EZM114225
Your Cost: $1,336.98/ea
List: Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position, Series: EZM, 120/240 VAC, 225 A, 1 ph Phase, 4 Jaws, Ring Cover, Surface Mount, NEMA 3R, 52 in H x 17.38 in W x 8.09 in D
Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position, Series: EZM, 120/240 VAC, 225 A, 1 ph Phase, 4 Jaws, Ring Cover, Surface Mount, NEMA 3R, 52 in H x 17.38 in W x 8.09 in D
Alternate Catalog Number EZM114225 Application For used as service equipment and use on the line side of service equipment ARRA Compliant N Buy American Compliant N Bypass Type No Bypass Catalog Number EZM114225 Country of Origin MX Cover Type Ring Currency USD Depth 8.09 in Dimensions 52 in H x 17.38 in W x 8.09 in D Enclosure NEMA 3R,STEEL EU RoHS Indicator Y Gross Volume Per Pack 10193.57 Gross Volume per Pack Metric 167042.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 91.0100 lb Gross Weight per Pack Metric 41.28 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109150 Height 24.8920 in Height [Metric] 24.9000 cm Item Group 00020 Length 134.1120 in Length [Metric] 134.1000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357365&lang=en-us Mounting Surface Mounting Type Surface Number of Jaws 4 Number of Meter Positions 4 Returnable Y Series EZM Size 17.38 IN,52 IN in Standard UL LISTED Sub Brand METER-PAK Substitute Product Catalog Number MMLK600 Type METER CENTER BRANCH UNIT,RINGED UNSPSC 39121102 UPC 11 78590129961 UPC 12 785901299615 Warranty Description Contractual Warranty:18 months Width 50.0380 in Width [Metric] 50.0000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 225 A,800 A Enclosure Type NEMA 3R Phase 1 PHASE IN-1 PHASE OUT Voltage Rating 120/240 VAC For used as service equipment and use on the line side of service equipment ALUMINIUM BUSBAR 1 ph 3-wire service/load feed Aluminum horizontal cross busbar Without bypass
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EZM114225 |
| Application | For used as service equipment and use on the line side of service equipment |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Bypass Type | No Bypass |
| Catalog Number | EZM114225 |
| Country of Origin | MX |
| Cover Type | Ring |
| Currency | USD |
| Depth | 8.09 in |
| Dimensions | 52 in H x 17.38 in W x 8.09 in D |
| Enclosure | NEMA 3R,STEEL |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 10193.57 |
| Gross Volume per Pack Metric | 167042.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 91.0100 lb |
| Gross Weight per Pack Metric | 41.28 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 24.8920 in |
| Height [Metric] | 24.9000 cm |
| Item Group | 00020 |
| Length | 134.1120 in |
| Length [Metric] | 134.1000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357365&lang=en-us |
| Mounting | Surface |
| Mounting Type | Surface |
| Number of Jaws | 4 |
| Number of Meter Positions | 4 |
| Returnable | Y |
| Series | EZM |
| Size | 17.38 IN,52 IN in |
| Standard | UL LISTED |
| Sub Brand | METER-PAK |
| Substitute Product Catalog Number | MMLK600 |
| Type | METER CENTER BRANCH UNIT,RINGED |
| UNSPSC | 39121102 |
| UPC 11 | 78590129961 |
| UPC 12 | 785901299615 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 50.0380 in |
| Width [Metric] | 50.0000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 225 A,800 A |
| Enclosure Type | NEMA 3R |
| Phase | 1 PHASE IN-1 PHASE OUT |
| Voltage Rating | 120/240 VAC |
| For used as service equipment and use on the line side of service equipment |
| ALUMINIUM BUSBAR |
| 1 ph 3-wire service/load feed |
| Aluminum horizontal cross busbar |
| Without bypass |
