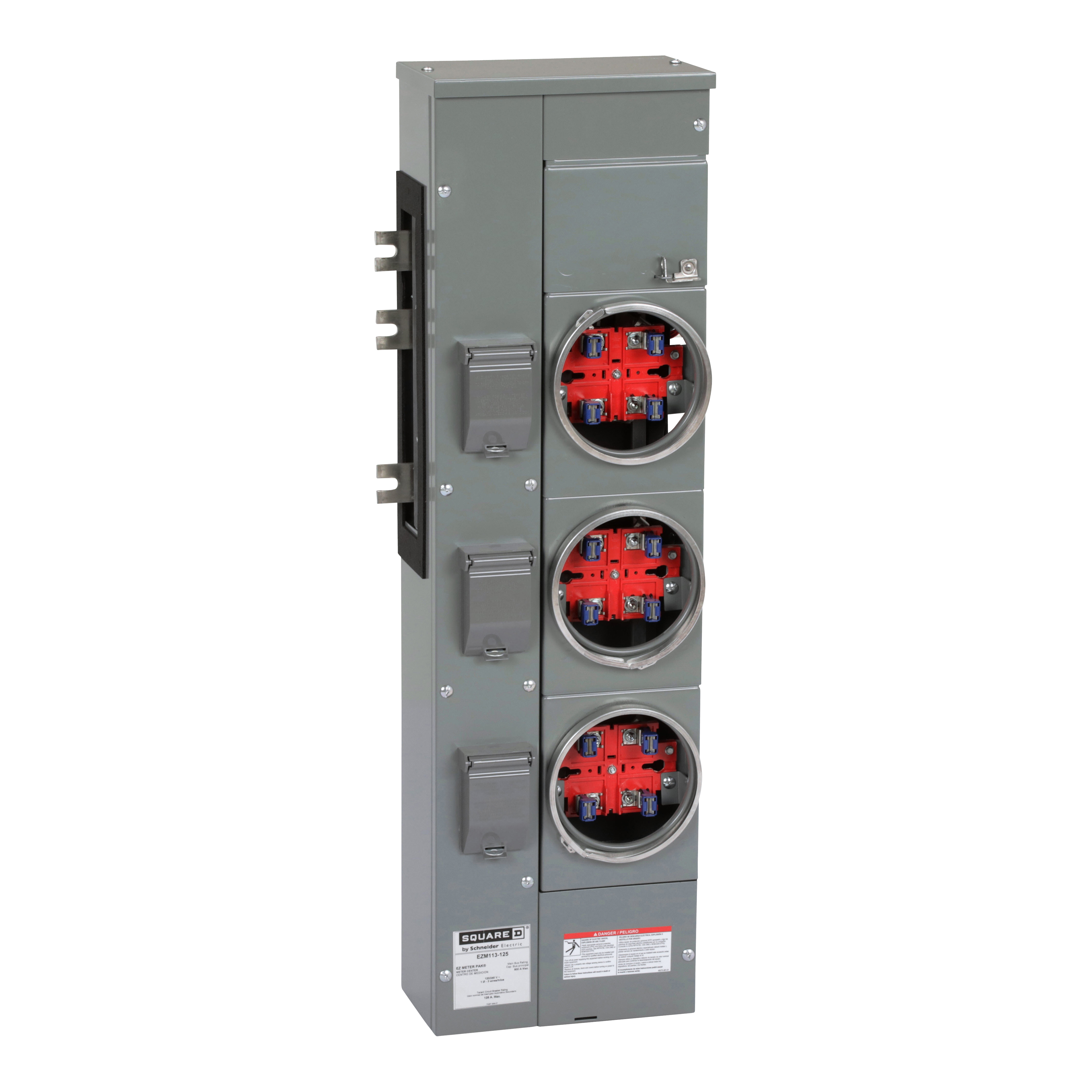

Square D™ Meter-Pak™ EZM113125 3-Position 3-Wire Meter Center Branch Unit, 120/240 VAC, 125/800 A, 1 Phase, NEMA 3R Enclosure
Meter Sockets - Multi Position
240805
MFG #: EZM113125
Square D™
559.17000
/ ea
Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Position 3-Wire, Series: EZM, 120/240 VAC, 125/800 A, 1 ph, Overhead/Underground Feed, 4 Jaws, Ring Cover, Bus Bar Terminal, Surface Mounting, NEMA 3R Enclosure, 12.25 in W x 7.09 in D x 42.37 in H Dimensions
- 360 Degree View URL - index.html?pid=11003&id=8028859360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_Y51AV7HDSXRF3QP6.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3121.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_LORC9X3B8JG24YUI.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_MF73D9K8CSYXGULT.dwg(Tech Drawing URL)
- Applications
- Features
| For service equipment applications |
| Aluminium: busbar |
| Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit |
| Meter-breaker units can be supplied with either one phase 3-wire or three-phase four wire service |
| The main bus on residential units with 40 to 200 a circuit breaker provisions is 800 or 1200 a in units using commercial 200 and 400 a branch circuit breakers |
| To suit individual applications, residential and commercial devices may be interconnected |
| Basic devices for connection to three-phase four wire 120/208 vac service are factory phase balanced to save installation time |
| The phase balancing may be modified in the field to meet most system variations |
| Aluminum horizontal cross busbar |
| One phase 3-wire service/load feed |
