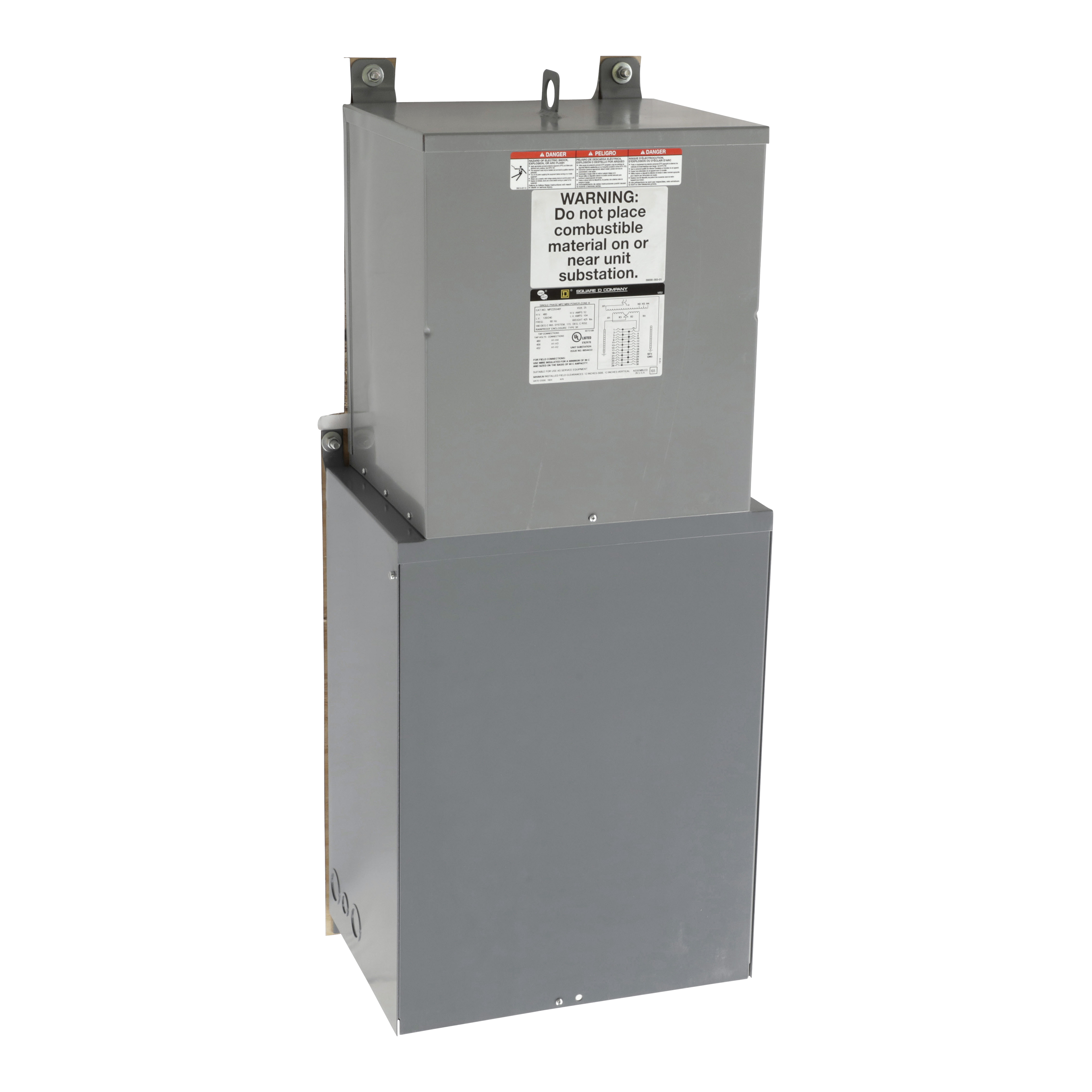

Square D™ MPU25S40F Mini Power-Zone Sealed Transformer, 480 V Primary, 120/240 V Secondary, 25 kVA Power Rating, 1 Phase
General Purpose - Multi-Use Transformers
1224360
MFG #: MPU25S40F
Square D™
15984.32000
/ ea
Square D™, MPU25S40F, Sealed Transformer, Mini Power-Zone, 480 V Primary, 120/240 V Secondary, 25 kVA Power, 1 ph, 365 deg F Insulation, NEMA 3R Enclosure, 115 deg C, Copper Housing Material, 43.20 in H x 21 in W x 13.50 in D Dimensions
- Brochure URL - 11003_3P2Y6IMFZCLA0WNE.pdf(Brochure URL)
- Brochure URL - 11003_KCNRU3QMIL42HE5O.pdf(Brochure URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_XVHYB05M6DOAIC73.pdf(Spec Sheet URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=MPU25S40F.DWG(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=MPU25S40F.DWG(Tech Drawing URL)
- Features
| Available in single phase and 3-phase solutions |
| Multiple AIC ratings available via changing of the Primary Breaker - Main Disconnect |
| Available for plug-on (most cost effective solution) or Bolt-on |
| Standard Steel or Stainless Steel Enclosure - both Type 3R enclosure |
| Device can be disassembled in the field for easier installation |
| Leverage standard Schneider Electric PowerPact Breakers for primary disconnect |
| Standard Low Voltage General Purpose Transformers |
| Secondary Load Center or NQ interior - with field installed QO branch breakers |
| NEMA Type 4X enclosed circuit breakers (primary main) |
