Square D™

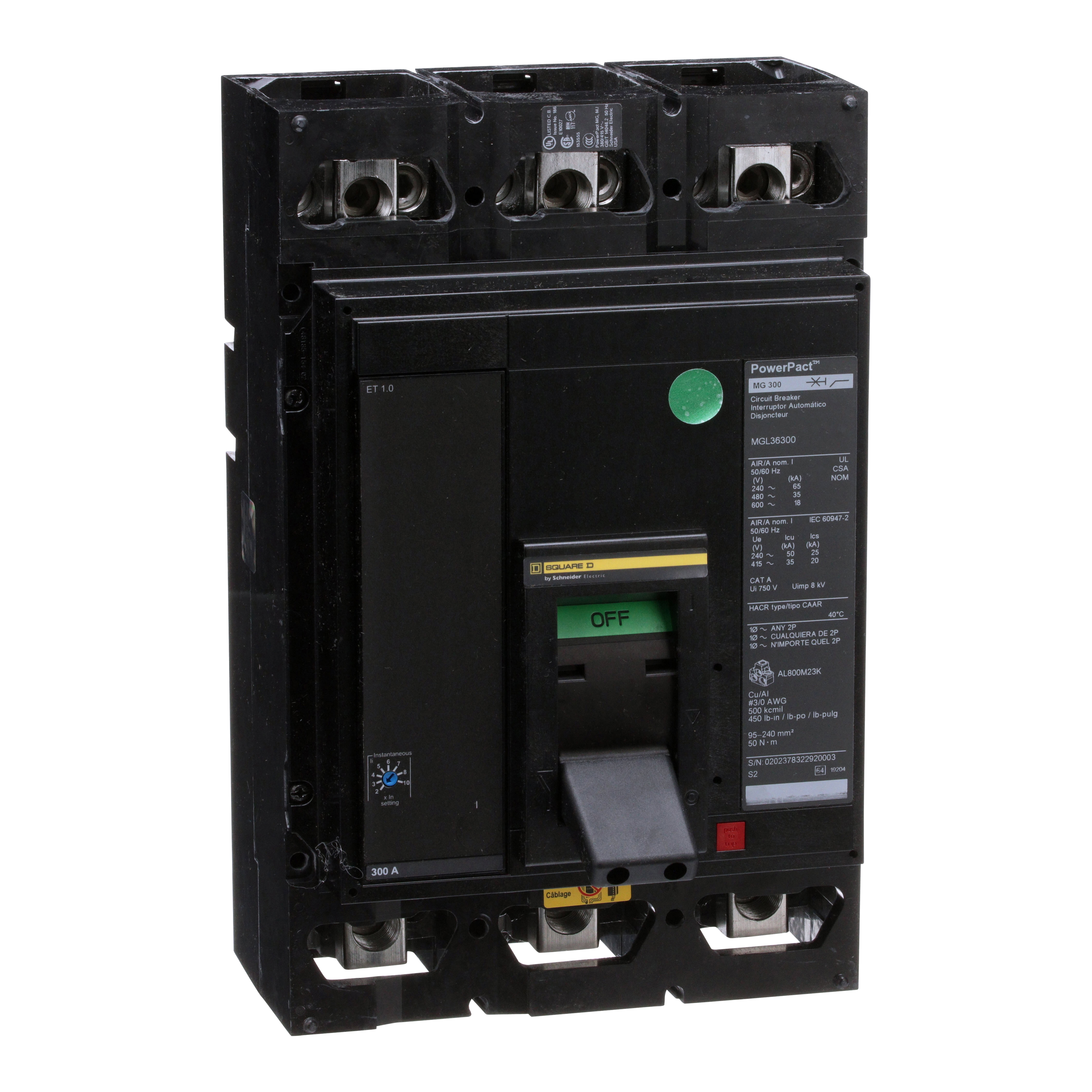

Square D™ MGL36600LW 80% Rated Molded Case Circuit Breaker With Control Cable ON and OFF End, 600 VAC, 600 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, 3 Poles, Electronic Basic ET 1.0 LI Trip
Custom_Product_Images_Illustration
Square D™
Square D™ MGL36600LW 80% Rated Molded Case Circuit Breaker With Control Cable ON and OFF End, 600 VAC, 600 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, 3 Poles, Electronic Basic ET 1.0 LI Trip
SKUPDW~11744418
MFGR #MGL36600LW
Your Cost: $7,283.00/ea
List: Schneider Electric PowerPact™ Molded Case Circuit Breaker, 80% Rated, Series, 600, Amperage Rating VAC, A 600, Frequency Rating, Hz 50/60, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, Frame, Electronic Basic ET 1.0 LI Trip, Trip Range, 3 Pole, Phase, Connection Type, Wire Size, Enclosure Type, Unit Mount, Temperature Rating, deg F 104, 8.1 in L x 8.3 in W x 12.8 in H, Material, Finish
Schneider Electric PowerPact™ Molded Case Circuit Breaker, 80% Rated, Series, 600, Amperage Rating VAC, A 600, Frequency Rating, Hz 50/60, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Interrupt, Frame, Electronic Basic ET 1.0 LI Trip, Trip Range, 3 Pole, Phase, Connection Type, Wire Size, Enclosure Type, Unit Mount, Temperature Rating, deg F 104, 8.1 in L x 8.3 in W x 12.8 in H, Material, Finish
Alternate Catalog Number MGL36600LW Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number MGL36600LW Connection Lugs load;lugs line; 3 x AWG 3/0...3 x 500 kcmil aluminium/copper Connection Type Line/Load Lugs Country of Origin US Currency USD Dimensions 8.1 in L x 8.3 in W x 12.8 in H Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame M Frame Frequency Rating 50/60 Gross Weight Per Pack 0.1315 lb Gross Weight per Pack Metric 13.15 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 25.4000 in Height [Metric] 25.4000 cm Item Group 01205 Length 45.2450 in Length [Metric] 45.2450 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268668394&lang=en-us Mounting Type Unit Number Of Poles 3 Returnable Y Standard UL LISTED-CSA-IEC Temperature Rating 104 Trip Range 300 to 800 A Type 80% Rated UNSPSC 39121601 UPC 11 78590195553 UPC 12 785901955535 Warranty Description Contractual Warranty:18 months Width 29.8450 in Width [Metric] 29.8450 cm Wire Size 3/0 AWG to 500 kcmil Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 600 Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Trip Type Electronic Basic ET 1.0 LI Voltage Rating 600 VAC Distribution Control wire ON and OFF end
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | MGL36600LW |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MGL36600LW |
| Connection | Lugs load;lugs line; 3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
| Connection Type | Line/Load Lugs |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 8.1 in L x 8.3 in W x 12.8 in H |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | M Frame |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 0.1315 lb |
| Gross Weight per Pack Metric | 13.15 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 25.4000 in |
| Height [Metric] | 25.4000 cm |
| Item Group | 01205 |
| Length | 45.2450 in |
| Length [Metric] | 45.2450 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268668394&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | UL LISTED-CSA-IEC |
| Temperature Rating | 104 |
| Trip Range | 300 to 800 A |
| Type | 80% Rated |
| UNSPSC | 39121601 |
| UPC 11 | 78590195553 |
| UPC 12 | 785901955535 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.8450 in |
| Width [Metric] | 29.8450 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 600 |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC |
| Trip Type | Electronic Basic ET 1.0 LI |
| Voltage Rating | 600 VAC |
| Distribution |
| Control wire ON and OFF end |
