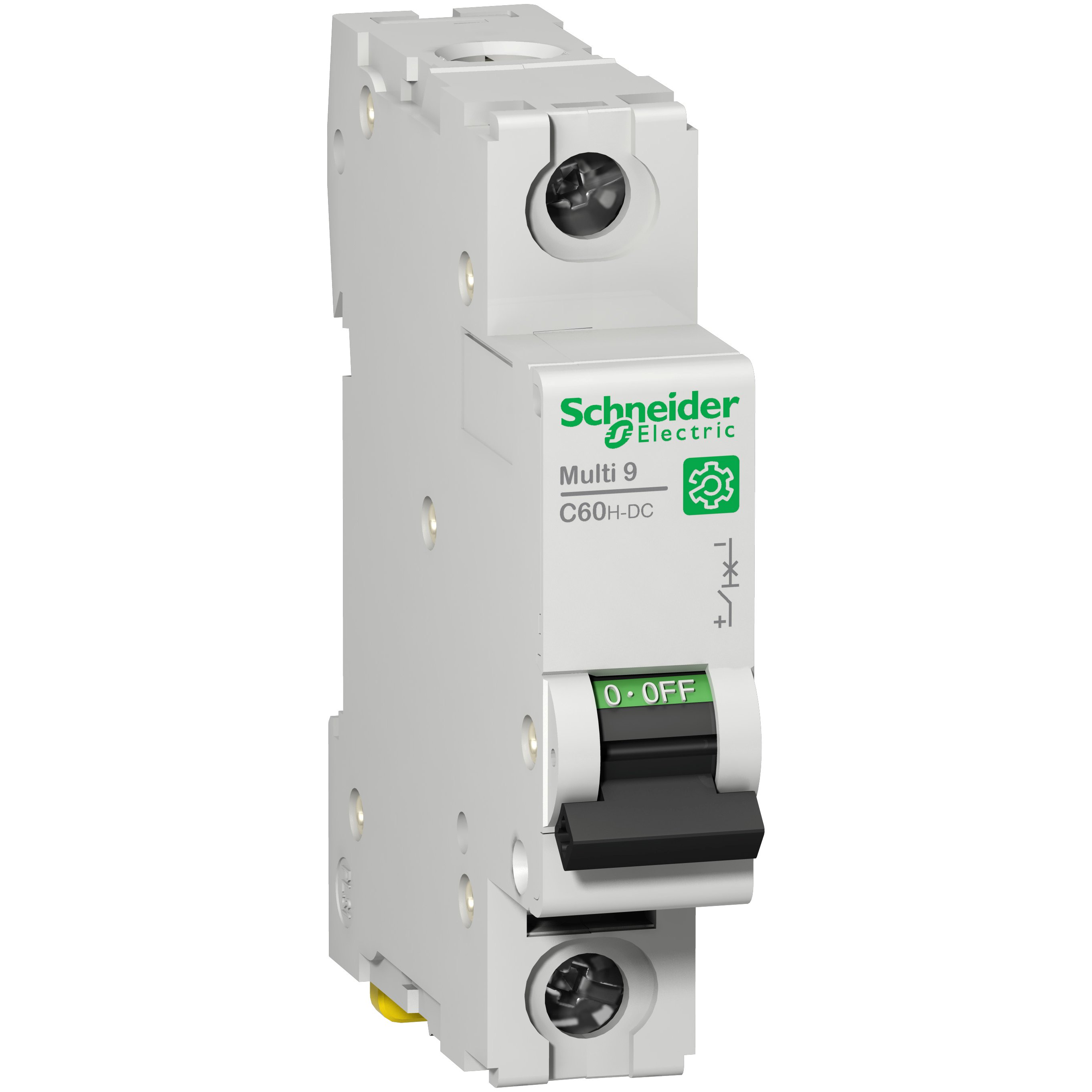

Square D™ M9U31110 C60H-DC Multi-Standard Miniature Circuit Breaker, 110/220/250 VDC, 10 A, 10 kA Interrupt, 1 Poles, D-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ M9U31110 C60H-DC Multi-Standard Miniature Circuit Breaker, 110/220/250 VDC, 10 A, 10 kA Interrupt, 1 Poles, D-Curve/Thermal Magnetic Trip
SKUPDW~13031860
MFGR #M9U31110
Your Cost: $211.00/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60H-DC, 110/220/250 VDC, 10 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 10 to 14X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Connection, 18 to 4 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -13 to 158 deg F, 3.19 in H x 0.71 in W x 2.87 in D Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60H-DC, 110/220/250 VDC, 10 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 10 to 14X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Connection, 18 to 4 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -13 to 158 deg F, 3.19 in H x 0.71 in W x 2.87 in D Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9U31110 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9U31110 Color Gray Connection Type Tunnel Country of Origin CN Currency USD Dimensions 3.19 in H x 0.71 in W x 2.87 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Gross Volume Per Pack 8.16 Gross Volume per Pack Metric 133.72 Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 110.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 3.1496 in Height [Metric] 8.5000 cm Item Group 00948 Length 2.7559 in Length [Metric] 7.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710966&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 1 Returnable N Series C60H-DC Standard EN/IEC 60947-2;GB 14048.2;UL 1077;IEC;CCC;UR Sub Brand Multi9 C60H-DC;C60H-DC Substitute Product Catalog Number M9A26929 Temperature Rating -13 to 158 Trip Range 10 to 14X In DC Type Multi-Standard UNSPSC 39121603 UPC 11 785901777601 UPC 12 785901777601 Upsell Product Catalog Number MGN26381 Width 0.7874 in Width [Metric] 1.8000 cm Wire Size 18 to 4 AWG Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 10 Interrupt Rating 10 Trip Type D-Curve/Thermal Magnetic Voltage Rating 110/220/250 Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9U31110 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9U31110 |
| Color | Gray |
| Connection Type | Tunnel |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 3.19 in H x 0.71 in W x 2.87 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 8.16 |
| Gross Volume per Pack Metric | 133.72 |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 110.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.1496 in |
| Height [Metric] | 8.5000 cm |
| Item Group | 00948 |
| Length | 2.7559 in |
| Length [Metric] | 7.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710966&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 1 |
| Returnable | N |
| Series | C60H-DC |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;IEC;CCC;UR |
| Sub Brand | Multi9 C60H-DC;C60H-DC |
| Substitute Product Catalog Number | M9A26929 |
| Temperature Rating | -13 to 158 |
| Trip Range | 10 to 14X In DC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 785901777601 |
| UPC 12 | 785901777601 |
| Upsell Product Catalog Number | MGN26381 |
| Width | 0.7874 in |
| Width [Metric] | 1.8000 cm |
| Wire Size | 18 to 4 AWG Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 10 |
| Interrupt Rating | 10 |
| Trip Type | D-Curve/Thermal Magnetic |
| Voltage Rating | 110/220/250 |
| Distribution |
| ON/OFF indication |
