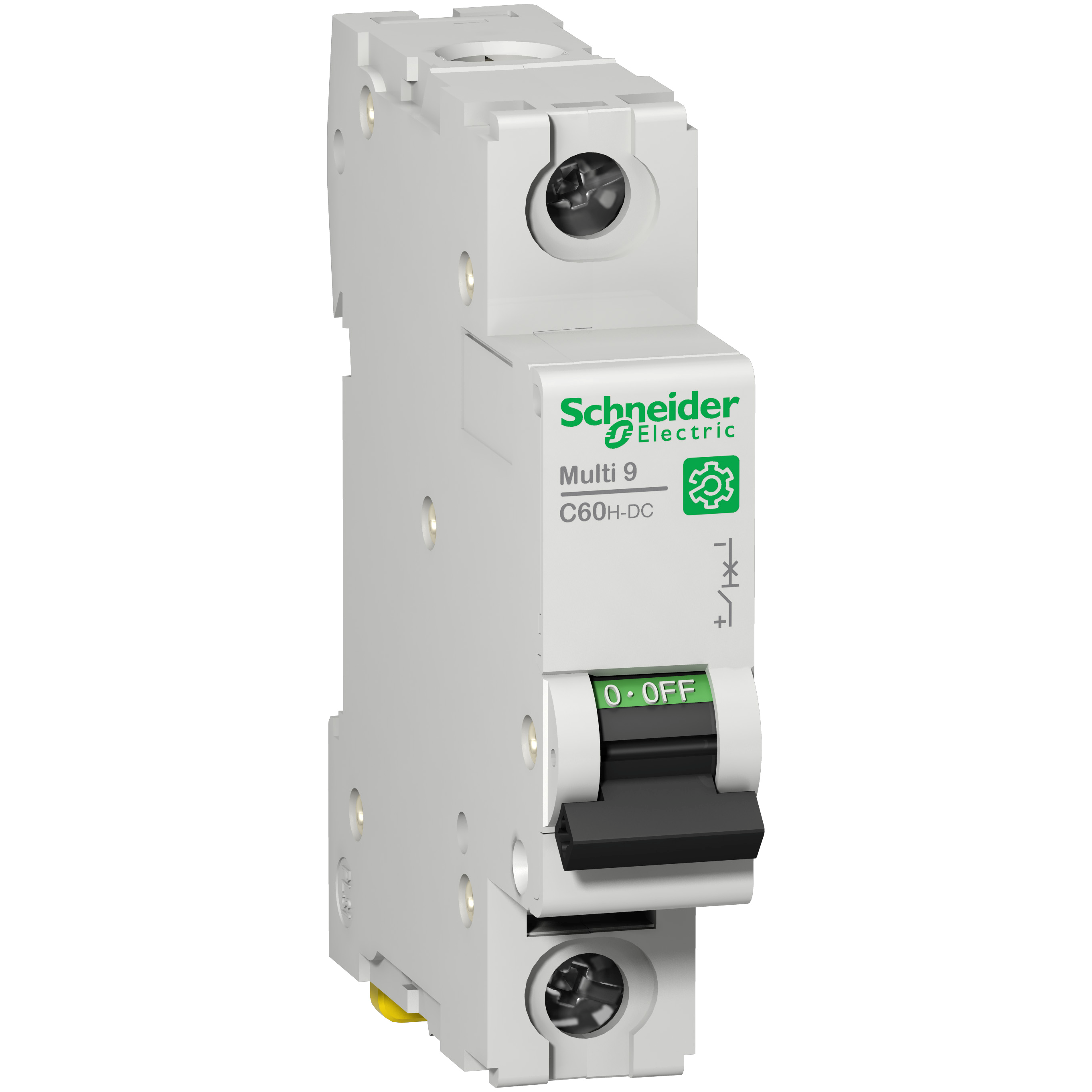

Square D™ M9U31104 C60H-DC Multi-Standard Miniature Circuit Breaker, 110/220/250 VDC, 4 A, 10 kA Interrupt, 1 Poles, D-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ M9U31104 C60H-DC Multi-Standard Miniature Circuit Breaker, 110/220/250 VDC, 4 A, 10 kA Interrupt, 1 Poles, D-Curve/Thermal Magnetic Trip
SKUPDW~13031858
MFGR #M9U31104
Your Cost: $211.00/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60H-DC, 110/220/250 VDC, 4 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 10 to 14X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 4 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -13 to 158 deg F, 0.71 in W x 2.87 in D x 3.19 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60H-DC, 110/220/250 VDC, 4 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 10 to 14X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 4 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -13 to 158 deg F, 0.71 in W x 2.87 in D x 3.19 in H Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9U31104 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9U31104 Color Gray Connection Type Tunnel Terminal Country of Origin CN Currency USD Dimensions 0.71 in W x 2.87 in D x 3.19 in H Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Gross Volume Per Pack 8.16 Gross Volume per Pack Metric 133.72 Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.1496 in Height [Metric] 8.5000 cm Item Group 00948 Length 3.5433 in Length [Metric] 7.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710964&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 1 Returnable N Series C60H-DC Standard EN/IEC 60947-2;GB 14048.2;UL 1077;IEC;CCC;UR Sub Brand Multi9 C60H-DC;C60H-DC Substitute Product Catalog Number M9A26948 Temperature Rating -13 to 158 Trip Range 10 to 14X In DC Type Multi-Standard UNSPSC 39121603 UPC 11 785901777441 UPC 12 785901777441 Upsell Product Catalog Number MGN26381 Width 0.7874 in Width [Metric] 1.8000 cm Wire Size 18 to 4 AWG Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 4 Interrupt Rating 10 Trip Type D-Curve/Thermal Magnetic Voltage Rating 110/220/250 Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9U31104 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9U31104 |
| Color | Gray |
| Connection Type | Tunnel Terminal |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 0.71 in W x 2.87 in D x 3.19 in H |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 8.16 |
| Gross Volume per Pack Metric | 133.72 |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.1496 in |
| Height [Metric] | 8.5000 cm |
| Item Group | 00948 |
| Length | 3.5433 in |
| Length [Metric] | 7.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710964&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 1 |
| Returnable | N |
| Series | C60H-DC |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;IEC;CCC;UR |
| Sub Brand | Multi9 C60H-DC;C60H-DC |
| Substitute Product Catalog Number | M9A26948 |
| Temperature Rating | -13 to 158 |
| Trip Range | 10 to 14X In DC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 785901777441 |
| UPC 12 | 785901777441 |
| Upsell Product Catalog Number | MGN26381 |
| Width | 0.7874 in |
| Width [Metric] | 1.8000 cm |
| Wire Size | 18 to 4 AWG Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 4 |
| Interrupt Rating | 10 |
| Trip Type | D-Curve/Thermal Magnetic |
| Voltage Rating | 110/220/250 |
| Distribution |
| ON/OFF indication |
