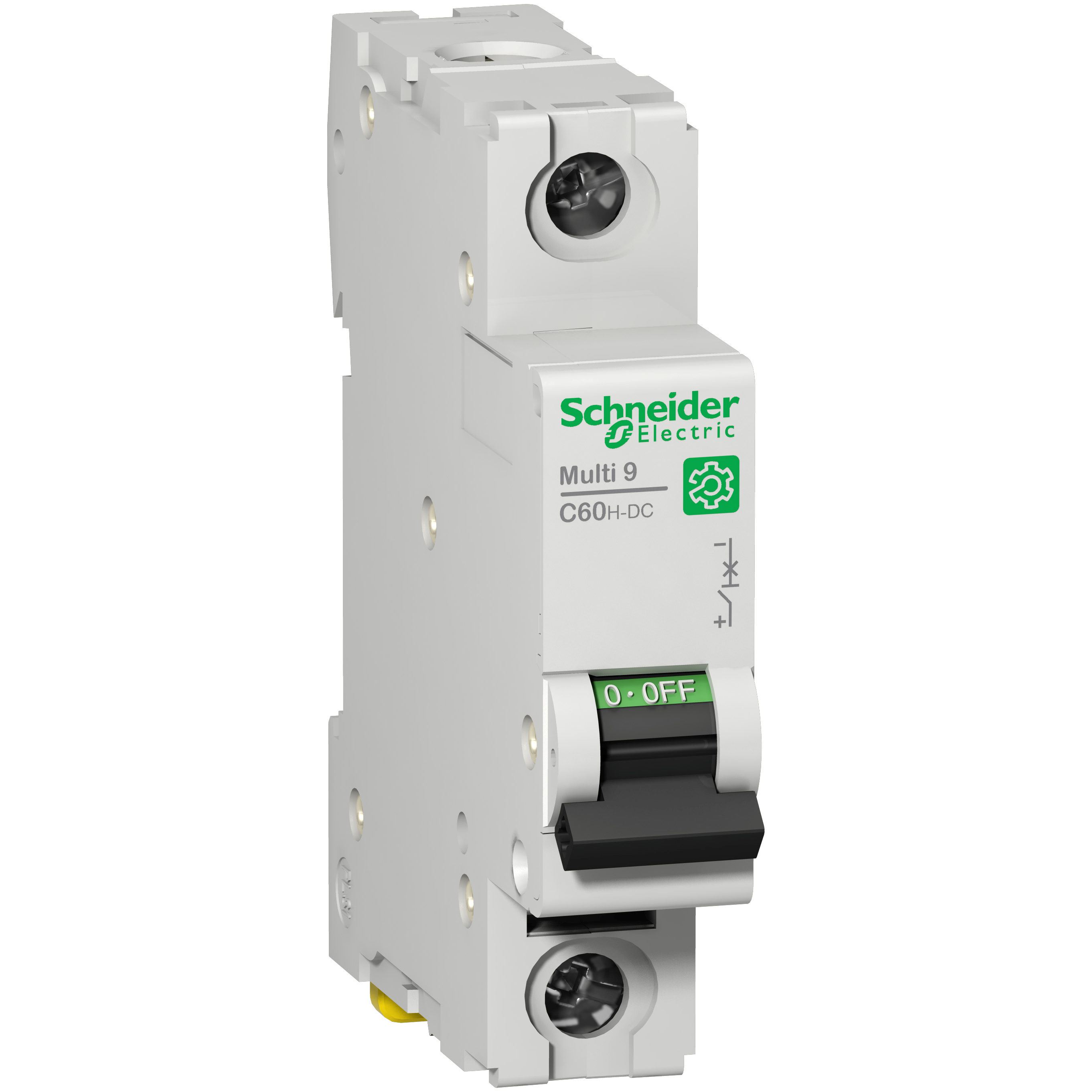

Square D™ M9U31101 C60H-DC Multi-Standard Miniature Circuit Breaker, 110/220/250 VDC, 1 A, 10 kA Interrupt, 1 Poles, D-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ M9U31101 C60H-DC Multi-Standard Miniature Circuit Breaker, 110/220/250 VDC, 1 A, 10 kA Interrupt, 1 Poles, D-Curve/Thermal Magnetic Trip
SKUPDW~13031855
MFGR #M9U31101
Your Cost: $211.00/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60H-DC, 110/220/250 VDC, 1 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 10 to 14X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 4 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -13 to 158 deg F, 0.71 in W x 2.87 in D x 3.19 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60H-DC, 110/220/250 VDC, 1 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 10 to 14X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 4 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -13 to 158 deg F, 0.71 in W x 2.87 in D x 3.19 in H Dimensions, Gray
Actuator Toggle Alternate Catalog Number M9U31101 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9U31101 Country of Origin CN Currency USD EU RoHS Indicator Y Gross Volume Per Pack 8.16 Gross Volume per Pack Metric 133.72 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 111.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 3.1496 in Height [Metric] 8.5000 cm Item Group 00948 Length 2.7559 in Length [Metric] 7.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710961&lang=en-us Number Of Poles 1 Returnable N Standard EN/IEC 60947-2;GB 14048.2;UL 1077;IEC;CCC;UR Sub Brand Multi9 C60H-DC;C60H-DC Substitute Product Catalog Number M9A26927 Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 785901777144 UPC 12 785901777144 Upsell Product Catalog Number MGN26381 Width 0.7874 in Width [Metric] 1.8000 cm Brand Square D™ Manufacturer Schneider Electric Trip Type Thermal-magnetic Voltage Rating 220 V DC;440 V DC;500 V DC Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | M9U31101 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9U31101 |
| Country of Origin | CN |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 8.16 |
| Gross Volume per Pack Metric | 133.72 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 111.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.1496 in |
| Height [Metric] | 8.5000 cm |
| Item Group | 00948 |
| Length | 2.7559 in |
| Length [Metric] | 7.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710961&lang=en-us |
| Number Of Poles | 1 |
| Returnable | N |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;IEC;CCC;UR |
| Sub Brand | Multi9 C60H-DC;C60H-DC |
| Substitute Product Catalog Number | M9A26927 |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 785901777144 |
| UPC 12 | 785901777144 |
| Upsell Product Catalog Number | MGN26381 |
| Width | 0.7874 in |
| Width [Metric] | 1.8000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Trip Type | Thermal-magnetic |
| Voltage Rating | 220 V DC;440 V DC;500 V DC |
| Distribution |
| ON/OFF indication |
