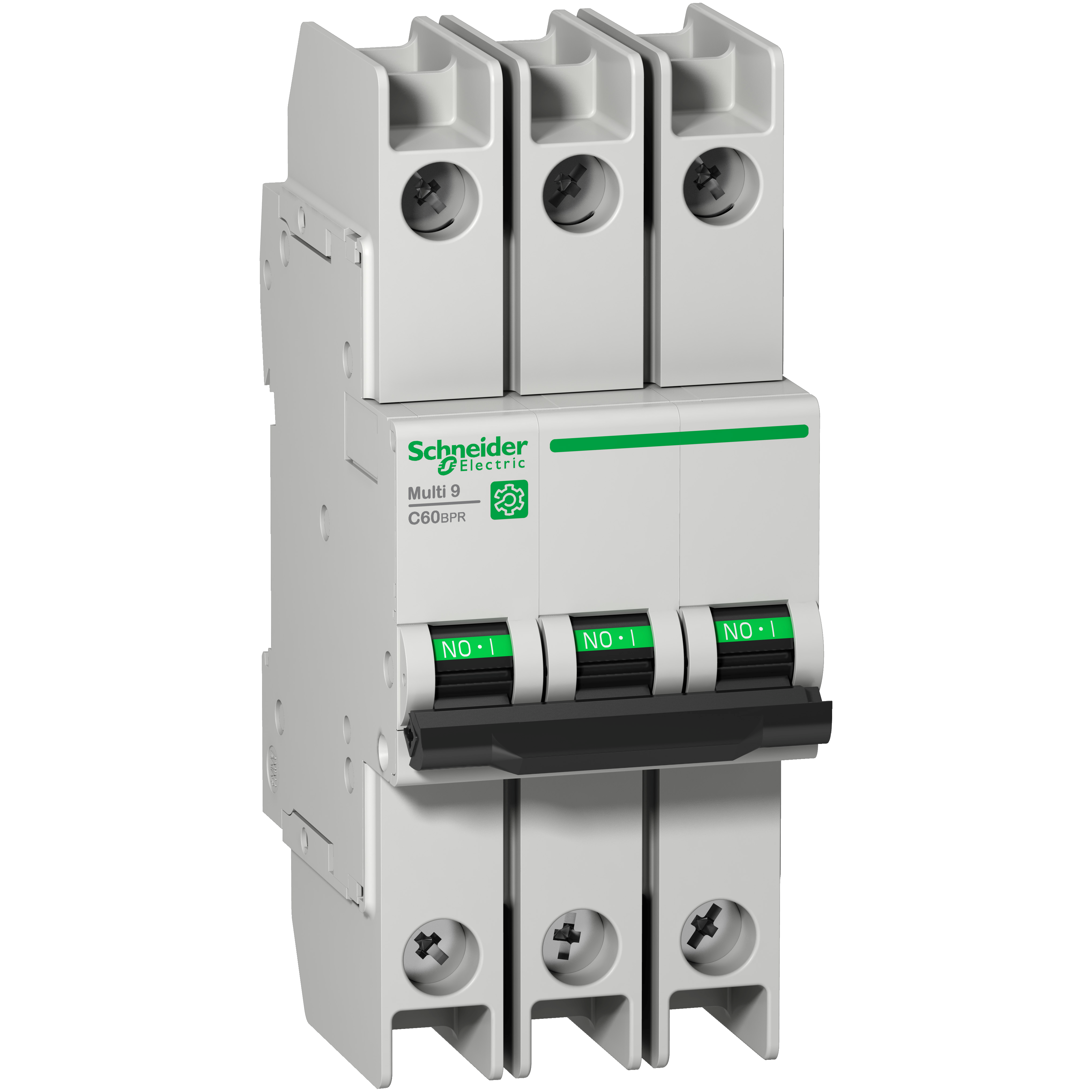

Square D™ M9F52315 Multi 9™ C60N Curve C Miniature Circuit Breaker, 240/415/440 VAC, 60 VDC, 15 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Square D™ M9F52315 Multi 9™ C60N Curve C Miniature Circuit Breaker, 240/415/440 VAC, 60 VDC, 15 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKUPDW~13031718
MFGR #M9F52315
Your Cost: $250.06/ea
List: Schneider Electric Square D™ Miniature Circuit Breaker, Curve C, Series: Multi 9™ C60N, 240/415/440 VAC, 60 VDC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 3 Poles, Toggle Actuator, Ring Tongue Connection, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -30 to 70 deg C, 54 mm W x 72 mm D x 127 mm H Dimensions, Gray
Schneider Electric Square D™ Miniature Circuit Breaker, Curve C, Series: Multi 9™ C60N, 240/415/440 VAC, 60 VDC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 3 Poles, Toggle Actuator, Ring Tongue Connection, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -30 to 70 deg C, 54 mm W x 72 mm D x 127 mm H Dimensions, Gray
Actuator Toggle Alternate Catalog Number M9F52315 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F52315 Connection Ring terminal top or bottom) Country of Origin FR Currency USD EU RoHS Indicator Y Gross Volume Per Pack 33.66 Gross Volume per Pack Metric 551.59 Gross Weight Per Pack 4.5000 lb Gross Weight per Pack Metric 450.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.5000 in Height [Metric] 7.5000 cm Item Group 00949 Length 12.7000 in Length [Metric] 12.7000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710564&lang=en-us Number Of Poles 3 Returnable Y Standard EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL Sub Brand Multi9 C60;C60BPR Substitute Product Catalog Number M9A26948 Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 78590113020 UPC 12 785901130208 Width 5.4000 in Width [Metric] 5.4000 cm Brand Square D™ Manufacturer Schneider Electric Trip Type Thermal-magnetic Voltage Rating 240 V AC 50/60 Hz;415 V AC 50/60 Hz;440 V AC 50/60 Hz Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | M9F52315 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F52315 |
| Connection | Ring terminal top or bottom) |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 33.66 |
| Gross Volume per Pack Metric | 551.59 |
| Gross Weight Per Pack | 4.5000 lb |
| Gross Weight per Pack Metric | 450.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.5000 in |
| Height [Metric] | 7.5000 cm |
| Item Group | 00949 |
| Length | 12.7000 in |
| Length [Metric] | 12.7000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710564&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL |
| Sub Brand | Multi9 C60;C60BPR |
| Substitute Product Catalog Number | M9A26948 |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 78590113020 |
| UPC 12 | 785901130208 |
| Width | 5.4000 in |
| Width [Metric] | 5.4000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Trip Type | Thermal-magnetic |
| Voltage Rating | 240 V AC 50/60 Hz;415 V AC 50/60 Hz;440 V AC 50/60 Hz |
| Distribution |
| ON/OFF indication |
