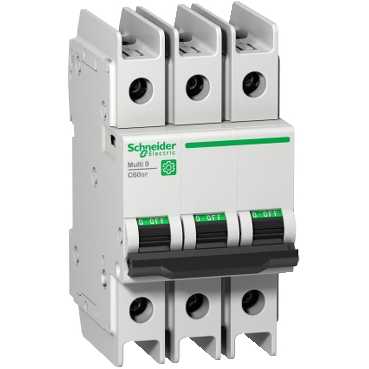

Square D™ M9F43340 C60BP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 40 A, 10 kA Interrupt, 3 Poles, D-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ M9F43340 C60BP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 40 A, 10 kA Interrupt, 3 Poles, D-Curve/Thermal Magnetic Trip
SKU1307477
MFGR #M9F43340
Your Cost: $237.09/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60BP, 240/415/440 VAC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 12X In AC Trip, 3 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 2 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 2.13 in W x 2.83 in D x 4.06 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60BP, 240/415/440 VAC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 12X In AC Trip, 3 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 2 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 2.13 in W x 2.83 in D x 4.06 in H Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F43340 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F43340 Color Gray Connection Tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible Connection Type Tunnel Terminal Country of Origin US Currency USD Dimensions 2.13 in W x 2.83 in D x 4.06 in H Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Gross Volume Per Pack 27.72 Gross Volume per Pack Metric 454.25 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.8600 lb Gross Weight per Pack Metric 391.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Hazard Class N Height 7.5000 in Height [Metric] 7.5000 cm Item Group 00949 Length 10.3000 in Length [Metric] 10.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710473&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 3 Returnable Y Series C60BP Standard EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL Sub Brand Multi9 C60;C60BP Substitute Product Catalog Number M9A26478 Temperature Rating -22 to 158 Trip Range 12X In AC Type Multi-Standard UNSPSC 39121603 UPC 11 78590171422 UPC 12 785901714224 Width 5.4000 in Width [Metric] 5.4000 cm Wire Size 18 to 2 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 40 Interrupt Rating 10 Trip Type D-Curve/Thermal Magnetic Voltage Rating 240/415/440 Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F43340 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F43340 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible |
| Connection Type | Tunnel Terminal |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.13 in W x 2.83 in D x 4.06 in H |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 27.72 |
| Gross Volume per Pack Metric | 454.25 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.8600 lb |
| Gross Weight per Pack Metric | 391.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Hazard Class | N |
| Height | 7.5000 in |
| Height [Metric] | 7.5000 cm |
| Item Group | 00949 |
| Length | 10.3000 in |
| Length [Metric] | 10.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710473&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 3 |
| Returnable | Y |
| Series | C60BP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL |
| Sub Brand | Multi9 C60;C60BP |
| Substitute Product Catalog Number | M9A26478 |
| Temperature Rating | -22 to 158 |
| Trip Range | 12X In AC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590171422 |
| UPC 12 | 785901714224 |
| Width | 5.4000 in |
| Width [Metric] | 5.4000 cm |
| Wire Size | 18 to 2 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 40 |
| Interrupt Rating | 10 |
| Trip Type | D-Curve/Thermal Magnetic |
| Voltage Rating | 240/415/440 |
| Distribution |
| ON/OFF indication |
