Square D™

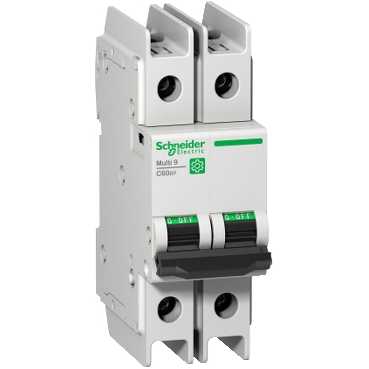

Square D™ M9F42250 C60BP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 50 A, 10 kA Interrupt, 2 Poles, C-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ M9F42250 C60BP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 50 A, 10 kA Interrupt, 2 Poles, C-Curve/Thermal Magnetic Trip
SKU1179226
MFGR #M9F42250
Your Cost: $163.80/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60BP, 240/415/440 VAC, 50 A, 50 to 60 Hz Frequency, 10 kA Interrupt, C-Curve/Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 2 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 1.42 in W x 2.83 in D x 4.06 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60BP, 240/415/440 VAC, 50 A, 50 to 60 Hz Frequency, 10 kA Interrupt, C-Curve/Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 2 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 1.42 in W x 2.83 in D x 4.06 in H Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F42250 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F42250 Color Gray Connection Tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible Connection Type Tunnel Terminal Country of Origin FR Currency USD Dimensions 1.42 in W x 2.83 in D x 4.06 in H Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50 to 60 Gross Volume Per Pack 17.22 Gross Volume per Pack Metric 282.18 Gross Weight Per Pack 0.5800 lb Gross Weight per Pack Metric 263.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.5000 in Height [Metric] 7.5000 cm Item Group 00949 Length 10.3000 in Length [Metric] 10.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710372&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 2 Returnable Y Series C60BP Standard EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL Sub Brand Multi9 C60;C60BP Substitute Product Catalog Number M9A26927 Temperature Rating -22 to 158 Trip Range 8.5X In AC/12X In DC Type Multi-Standard UNSPSC 39121603 UPC 11 78590171320 UPC 12 785901713203 Width 3.6000 in Width [Metric] 3.6000 cm Wire Size 18 to 2 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 50 Interrupt Rating 10 Trip Type Thermal Magnetic/C-Curve Voltage Rating 240/415/440 Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F42250 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F42250 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible |
| Connection Type | Tunnel Terminal |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 1.42 in W x 2.83 in D x 4.06 in H |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50 to 60 |
| Gross Volume Per Pack | 17.22 |
| Gross Volume per Pack Metric | 282.18 |
| Gross Weight Per Pack | 0.5800 lb |
| Gross Weight per Pack Metric | 263.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.5000 in |
| Height [Metric] | 7.5000 cm |
| Item Group | 00949 |
| Length | 10.3000 in |
| Length [Metric] | 10.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710372&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | C60BP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL |
| Sub Brand | Multi9 C60;C60BP |
| Substitute Product Catalog Number | M9A26927 |
| Temperature Rating | -22 to 158 |
| Trip Range | 8.5X In AC/12X In DC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590171320 |
| UPC 12 | 785901713203 |
| Width | 3.6000 in |
| Width [Metric] | 3.6000 cm |
| Wire Size | 18 to 2 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 50 |
| Interrupt Rating | 10 |
| Trip Type | Thermal Magnetic/C-Curve |
| Voltage Rating | 240/415/440 |
| Distribution |
| ON/OFF indication |
