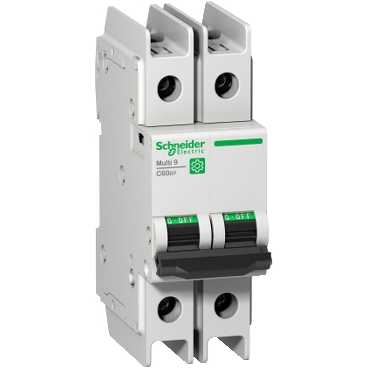

Square D™ M9F42205 C60BP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 5 A, 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ M9F42205 C60BP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 5 A, 10 kA Interrupt, 2 Poles
SKU1135791
MFGR #M9F42205
Call For Price
List: Multi9 C60BP 2P C 5A MCB
Multi9 C60BP 2P C 5A MCB
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F42205 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F42205 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible Connection Type Tunnel Country of Origin FR Currency USD Dimensions 4.06 in H x 1.42 in W x 2.83 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 8.04 Gross Volume per Pack Metric 131.75 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.4500 lb Gross Weight per Pack Metric 245.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 1.8000 in Height [Metric] 1.8000 cm Item Group 00949 Length 10.3000 in Length [Metric] 10.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710389&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 2 Returnable Y Series C60BP Standard EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL Standards ARRA CompliantBuy American Act CompliantUL 489CCC CertifiedCSA C22.2 No. 5EN/IEC 60947-2GB 14048.2 Sub Brand C60BP;Multi 9 C60 Substitute Product Catalog Number M9A26924 Temperature Rating -22 to 158 °F Trip Range 8.5X In AC/12X In DC Type Multi-Standard UNSPSC 39121603 Width 7.2000 in Width [Metric] 7.2000 cm Wire Size 18 to 8 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 5 A Interrupt Rating 10 kA Trip Type C-Curve/Thermal Magnetic Voltage Rating 240/415/440 VAC Distribution C60BP - Branch Protection Circuit protection against short circuit, overload currents Tripping and fault indication by the addition of auxiliaries
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F42205 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F42205 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible |
| Connection Type | Tunnel |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 4.06 in H x 1.42 in W x 2.83 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 8.04 |
| Gross Volume per Pack Metric | 131.75 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.4500 lb |
| Gross Weight per Pack Metric | 245.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 1.8000 in |
| Height [Metric] | 1.8000 cm |
| Item Group | 00949 |
| Length | 10.3000 in |
| Length [Metric] | 10.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710389&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | C60BP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL |
| Standards | ARRA CompliantBuy American Act CompliantUL 489CCC CertifiedCSA C22.2 No. 5EN/IEC 60947-2GB 14048.2 |
| Sub Brand | C60BP;Multi 9 C60 |
| Substitute Product Catalog Number | M9A26924 |
| Temperature Rating | -22 to 158 °F |
| Trip Range | 8.5X In AC/12X In DC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| Width | 7.2000 in |
| Width [Metric] | 7.2000 cm |
| Wire Size | 18 to 8 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 5 A |
| Interrupt Rating | 10 kA |
| Trip Type | C-Curve/Thermal Magnetic |
| Voltage Rating | 240/415/440 VAC |
| Distribution |
| C60BP - Branch Protection |
| Circuit protection against short circuit, overload currents |
| Tripping and fault indication by the addition of auxiliaries |
