Square D™

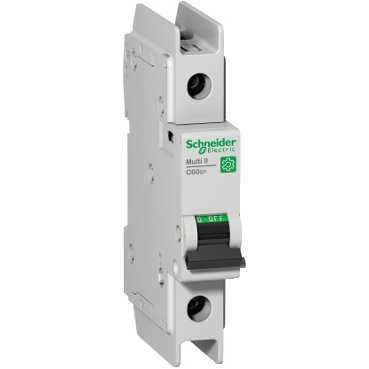

Square D™ M9F42110 Multi9 C60BP 1P C 10A MCB
Custom_Product_Images_Illustration
Square D™
Square D™ M9F42110 Multi9 C60BP 1P C 10A MCB
SKU995325
MFGR #M9F42110
Your Cost: $72.66/ea
List: Square D™ Miniature Circuit Breaker, Multi-Standard, Series: C60BP, 240/415 VAC/60 VDC, 10 A, 50/60 Hz, 10 kA Interrupt, C-Curve Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 1 Pole, Toggle Actuator, Tunnel, 18 to 8 AWG Cu Wire, IP20/IP40, Clip-On/DIN Rail Mount, -22 to 158 deg F, 4.06 in H x 0.71 in W x 2.83 in D, Gray
Square D™ Miniature Circuit Breaker, Multi-Standard, Series: C60BP, 240/415 VAC/60 VDC, 10 A, 50/60 Hz, 10 kA Interrupt, C-Curve Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 1 Pole, Toggle Actuator, Tunnel, 18 to 8 AWG Cu Wire, IP20/IP40, Clip-On/DIN Rail Mount, -22 to 158 deg F, 4.06 in H x 0.71 in W x 2.83 in D, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F42110 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F42110 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible Connection Type Tunnel Country of Origin US Currency USD Dimensions 4.06 in H x 0.71 in W x 2.83 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 8.04 Gross Volume per Pack Metric 131.75 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2750 lb Gross Weight per Pack Metric 119.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 1.8000 in Height [Metric] 8.4000 cm Item Group 00949 Length 10.3000 in Length [Metric] 22.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710359&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 1 Returnable Y Series C60BP Standard EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL Standards ARRA CompliantBuy American Act CompliantUL 489CCC CertifiedCSA C22.2 No. 5EN/IEC 60947-2GB 14048.2 Sub Brand C60BP;Multi 9 C60 Substitute Product Catalog Number M9A26478 Temperature Rating -22 to 158 °F Trip Range 8.5X In AC/12X In DC Type Multi-Standard UNSPSC 39121603 UPC 11 78590166904 UPC 12 785901669043 Width 7.2000 in Width [Metric] 10.7000 cm Wire Size 18 to 8 AWG Cu Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Amperage Rating 10 A Interrupt Rating 10 kA Trip Type C-Curve/Thermal Magnetic Voltage Rating 240/415 VAC/60 VDC Distribution C60BP - Branch Protection Circuit protection against short circuit, overload currents Tripping and fault indication by the addition of auxiliaries
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F42110 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F42110 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible |
| Connection Type | Tunnel |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.06 in H x 0.71 in W x 2.83 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 8.04 |
| Gross Volume per Pack Metric | 131.75 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2750 lb |
| Gross Weight per Pack Metric | 119.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 1.8000 in |
| Height [Metric] | 8.4000 cm |
| Item Group | 00949 |
| Length | 10.3000 in |
| Length [Metric] | 22.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710359&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 1 |
| Returnable | Y |
| Series | C60BP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL |
| Standards | ARRA CompliantBuy American Act CompliantUL 489CCC CertifiedCSA C22.2 No. 5EN/IEC 60947-2GB 14048.2 |
| Sub Brand | C60BP;Multi 9 C60 |
| Substitute Product Catalog Number | M9A26478 |
| Temperature Rating | -22 to 158 °F |
| Trip Range | 8.5X In AC/12X In DC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590166904 |
| UPC 12 | 785901669043 |
| Width | 7.2000 in |
| Width [Metric] | 10.7000 cm |
| Wire Size | 18 to 8 AWG Cu |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 10 A |
| Interrupt Rating | 10 kA |
| Trip Type | C-Curve/Thermal Magnetic |
| Voltage Rating | 240/415 VAC/60 VDC |
| Distribution |
| C60BP - Branch Protection |
| Circuit protection against short circuit, overload currents |
| Tripping and fault indication by the addition of auxiliaries |
