Square D™

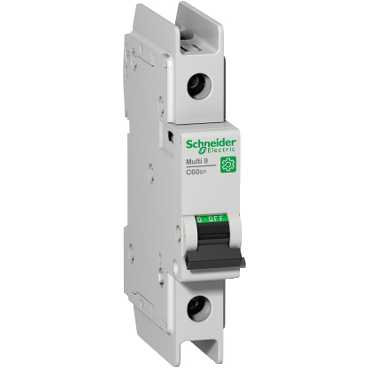

Square D™ M9F42101 Multi9 C60BP 1P C 1A MCB
Custom_Product_Images_Illustration
Square D™
Square D™ M9F42101 Multi9 C60BP 1P C 1A MCB
SKU1026921
MFGR #M9F42101
Your Cost: $79.67/ea
List: Square D™ Miniature Circuit Breaker, Multi-Standard, Series: C60BP, 240/415 VAC/60 VDC, 1 A, 50/60 Hz, 10 kA Interrupt, C-Curve Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 1 Pole, Toggle Actuator, Tunnel, 18 to 8 AWG Cu Wire, IP20/IP40, Clip-On/DIN Rail Mount, -22 to 158 deg F, 4.06 in H x 0.71 in W x 2.83 in D, Gray
Square D™ Miniature Circuit Breaker, Multi-Standard, Series: C60BP, 240/415 VAC/60 VDC, 1 A, 50/60 Hz, 10 kA Interrupt, C-Curve Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 1 Pole, Toggle Actuator, Tunnel, 18 to 8 AWG Cu Wire, IP20/IP40, Clip-On/DIN Rail Mount, -22 to 158 deg F, 4.06 in H x 0.71 in W x 2.83 in D, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F42101 Application DISTRIBUTION ARRA Compliant N Buy American Compliant N Catalog Number M9F42101 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible Connection Type Tunnel Country of Origin FR Currency USD Dimensions 4.06 in H x 0.71 in W x 2.83 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 8.04 Gross Volume per Pack Metric 131.75 Gross Weight Per Pack 0.2700 lb Gross Weight per Pack Metric 124.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 1.8000 in Height [Metric] 1.8000 cm Item Group 00949 Length 10.3000 in Length [Metric] 10.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710369&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 1 Returnable Y Series C60BP Standard EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL Standards ARRA CompliantBuy American Act CompliantUL 489CCC CertifiedCSA C22.2 No. 5EN/IEC 60947-2GB 14048.2 Sub Brand C60BP;Multi 9 C60 Substitute Product Catalog Number M9A26929 Temperature Rating -22 to 158 °F Trip Range 8.5X In AC/12X In DC Type Multi-Standard UNSPSC 39121603 UPC 11 78590167112 UPC 12 785901671121 Width 7.2000 in Width [Metric] 7.2000 cm Wire Size 18 to 8 AWG Cu Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1 A Interrupt Rating 10 kA Trip Type Thermal-magnetic Voltage Rating 240/415 VAC/60 VDC Distribution C60BP - Branch Protection Circuit protection against short circuit, overload currents Tripping and fault indication by the addition of auxiliaries
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F42101 |
| Application | DISTRIBUTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F42101 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible |
| Connection Type | Tunnel |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 4.06 in H x 0.71 in W x 2.83 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 8.04 |
| Gross Volume per Pack Metric | 131.75 |
| Gross Weight Per Pack | 0.2700 lb |
| Gross Weight per Pack Metric | 124.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 1.8000 in |
| Height [Metric] | 1.8000 cm |
| Item Group | 00949 |
| Length | 10.3000 in |
| Length [Metric] | 10.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710369&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 1 |
| Returnable | Y |
| Series | C60BP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 489;CSA C22.2 No 5;IEC;CCC;CSA;UL |
| Standards | ARRA CompliantBuy American Act CompliantUL 489CCC CertifiedCSA C22.2 No. 5EN/IEC 60947-2GB 14048.2 |
| Sub Brand | C60BP;Multi 9 C60 |
| Substitute Product Catalog Number | M9A26929 |
| Temperature Rating | -22 to 158 °F |
| Trip Range | 8.5X In AC/12X In DC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590167112 |
| UPC 12 | 785901671121 |
| Width | 7.2000 in |
| Width [Metric] | 7.2000 cm |
| Wire Size | 18 to 8 AWG Cu |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal-magnetic |
| Voltage Rating | 240/415 VAC/60 VDC |
| Distribution |
| C60BP - Branch Protection |
| Circuit protection against short circuit, overload currents |
| Tripping and fault indication by the addition of auxiliaries |
