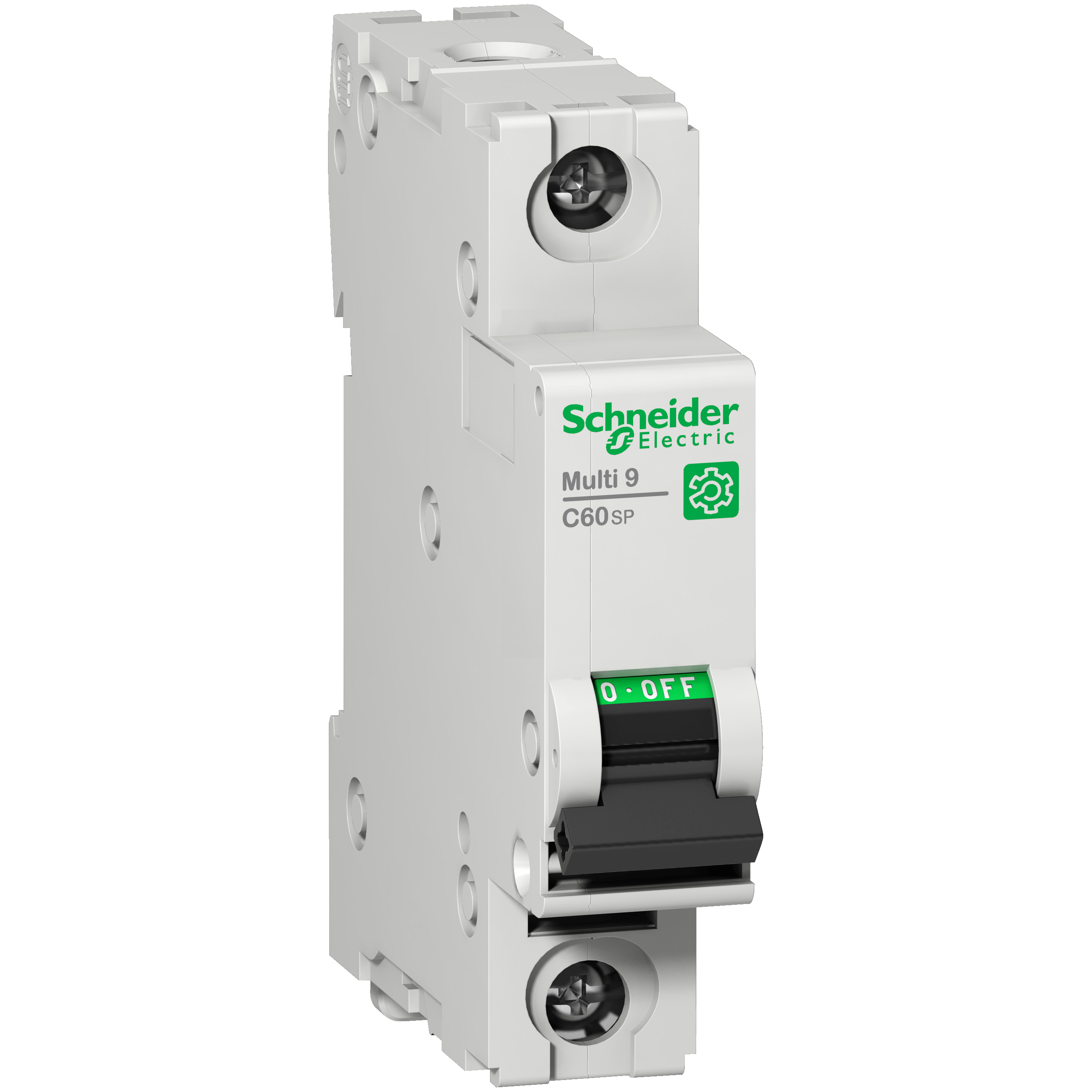

Square D™ M9F23120 C60SP Multi-Standard Miniature Circuit Breaker, 240/415 VAC, 60 VDC, 20 A, 10 kA Interrupt, 1 Pole, D-Curve/Thermal Magnetic Trip
Square D™ M9F23120 C60SP Multi-Standard Miniature Circuit Breaker, 240/415 VAC, 60 VDC, 20 A, 10 kA Interrupt, 1 Pole, D-Curve/Thermal Magnetic Trip
SKU1178794
MFGR #M9F23120
Your Cost: $64.38/ea
List: Schneider Electric Multi9™ Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415 VAC, 60 VDC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 12X In AC/17X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Copper Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 3.19 in H x 0.71 in W x 2.83 in D Dimensions, Gray
Schneider Electric Multi9™ Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415 VAC, 60 VDC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, D-Curve/Thermal Magnetic Trip, 12X In AC/17X In DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Copper Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 3.19 in H x 0.71 in W x 2.83 in D Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F23120 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F23120 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible Connection Type Tunnel Terminal Country of Origin FR Currency USD Dimensions 3.19 in H x 0.71 in W x 2.83 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Gross Volume Per Pack 6.93 Gross Volume per Pack Metric 113.56 Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 113.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 1.8000 in Height [Metric] 1.8000 cm Item Group 00948 Length 8.5000 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710814&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 1 Returnable Y Series C60SP Standard EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA Sub Brand Multi9 C60;C60SP Substitute Product Catalog Number M9A26948 Temperature Rating -22 to 158 Trip Range 12X In AC/17X In DC Type Multi-Standard UNSPSC 39121603 UPC 11 78590171904 UPC 12 785901719045 Width 7.5000 in Width [Metric] 7.5000 cm Wire Size 18 to 8 AWG Copper Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 20 Interrupt Rating 10 Trip Type D-Curve/Thermal Magnetic Voltage Rating 240/415 VAC, 60 VDC Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F23120 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F23120 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible |
| Connection Type | Tunnel Terminal |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 3.19 in H x 0.71 in W x 2.83 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 6.93 |
| Gross Volume per Pack Metric | 113.56 |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 113.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 1.8000 in |
| Height [Metric] | 1.8000 cm |
| Item Group | 00948 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710814&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 1 |
| Returnable | Y |
| Series | C60SP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA |
| Sub Brand | Multi9 C60;C60SP |
| Substitute Product Catalog Number | M9A26948 |
| Temperature Rating | -22 to 158 |
| Trip Range | 12X In AC/17X In DC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590171904 |
| UPC 12 | 785901719045 |
| Width | 7.5000 in |
| Width [Metric] | 7.5000 cm |
| Wire Size | 18 to 8 AWG Copper |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 20 |
| Interrupt Rating | 10 |
| Trip Type | D-Curve/Thermal Magnetic |
| Voltage Rating | 240/415 VAC, 60 VDC |
| Distribution |
| ON/OFF indication |
