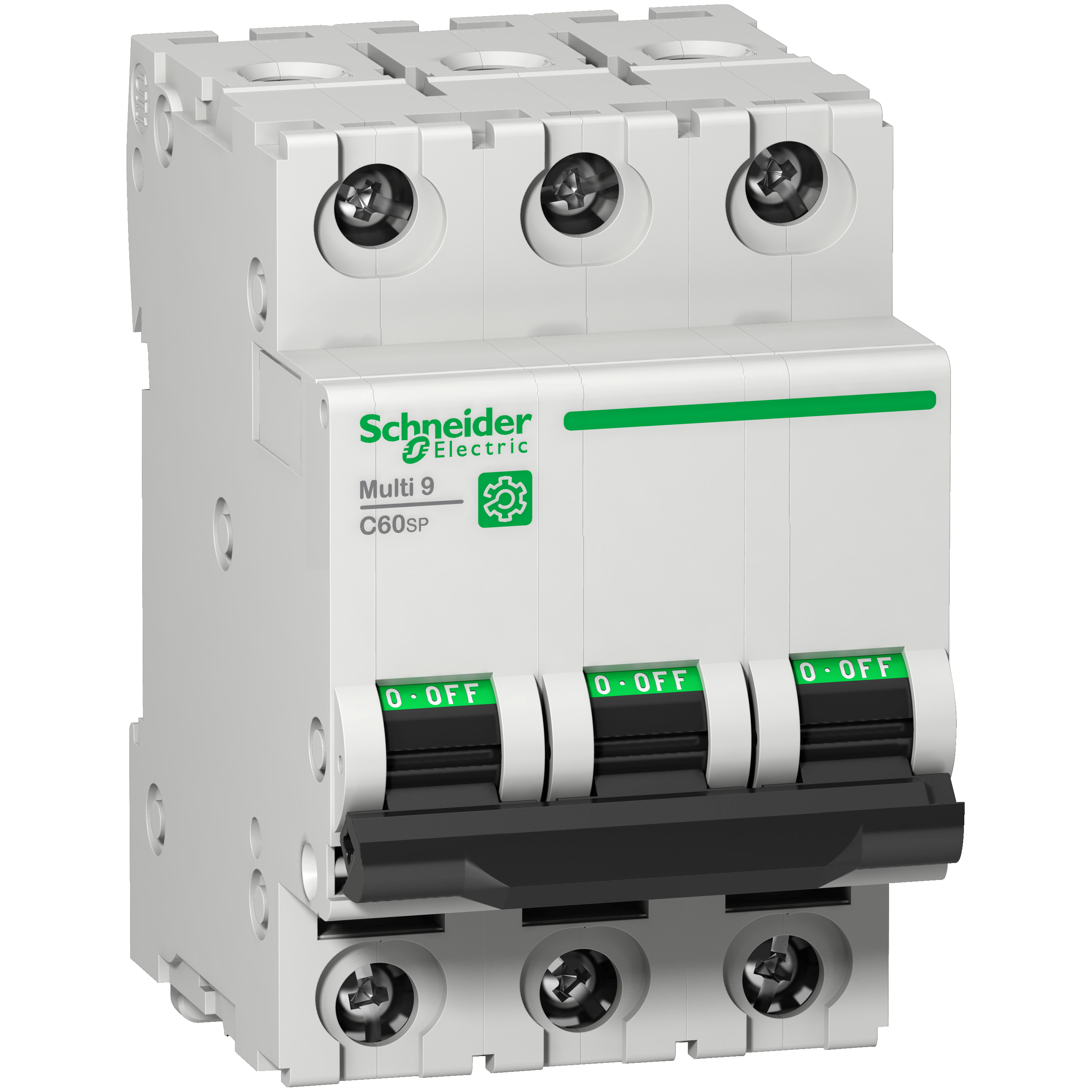

Square D™ M9F22345 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 45 A, 5 kA Interrupt, 3 Poles, Thermal Magnetic/C-Curve Trip
Square D™ M9F22345 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 45 A, 5 kA Interrupt, 3 Poles, Thermal Magnetic/C-Curve Trip
SKUPDW~13031607
MFGR #M9F22345
Your Cost: $267.92/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 45 A, 50 to 60 Hz Frequency, 5 kA Interrupt, Thermal Magnetic/C-Curve Trip, 8.5X In AC Trip, 3 Pole, Toggle Actuator, Tunnel Connection, 18 to 2 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 3.19 in H x 2.13 in W x 2.83 in D Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 45 A, 50 to 60 Hz Frequency, 5 kA Interrupt, Thermal Magnetic/C-Curve Trip, 8.5X In AC Trip, 3 Pole, Toggle Actuator, Tunnel Connection, 18 to 2 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 3.19 in H x 2.13 in W x 2.83 in D Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F22345 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F22345 Color Gray Connection Tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible Connection Type Tunnel Country of Origin FR Currency USD Dimensions 3.19 in H x 2.13 in W x 2.83 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50 to 60 Gross Volume Per Pack 23.46 Gross Volume per Pack Metric 384.44 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.6800 lb Gross Weight per Pack Metric 368.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.5000 in Height [Metric] 7.5000 cm Item Group 00948 Length 8.5000 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710774&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 3 Returnable N Series C60SP Standard EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA Sub Brand Multi9 C60;C60SP Substitute Product Catalog Number M9A26927 Temperature Rating -22 to 158 Trip Range 8.5X In AC Type Multi-Standard UNSPSC 39121603 UPC 11 785901747536 UPC 12 785901747536 Width 5.4000 in Width [Metric] 5.4000 cm Wire Size 18 to 2 AWG Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 45 Interrupt Rating 5 Trip Type Thermal Magnetic/C-Curve Voltage Rating 240/415/440 Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F22345 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F22345 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule;tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible |
| Connection Type | Tunnel |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 3.19 in H x 2.13 in W x 2.83 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50 to 60 |
| Gross Volume Per Pack | 23.46 |
| Gross Volume per Pack Metric | 384.44 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.6800 lb |
| Gross Weight per Pack Metric | 368.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.5000 in |
| Height [Metric] | 7.5000 cm |
| Item Group | 00948 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710774&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 3 |
| Returnable | N |
| Series | C60SP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA |
| Sub Brand | Multi9 C60;C60SP |
| Substitute Product Catalog Number | M9A26927 |
| Temperature Rating | -22 to 158 |
| Trip Range | 8.5X In AC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 785901747536 |
| UPC 12 | 785901747536 |
| Width | 5.4000 in |
| Width [Metric] | 5.4000 cm |
| Wire Size | 18 to 2 AWG Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 45 |
| Interrupt Rating | 5 |
| Trip Type | Thermal Magnetic/C-Curve |
| Voltage Rating | 240/415/440 |
| Distribution |
| ON/OFF indication |
