Square D™

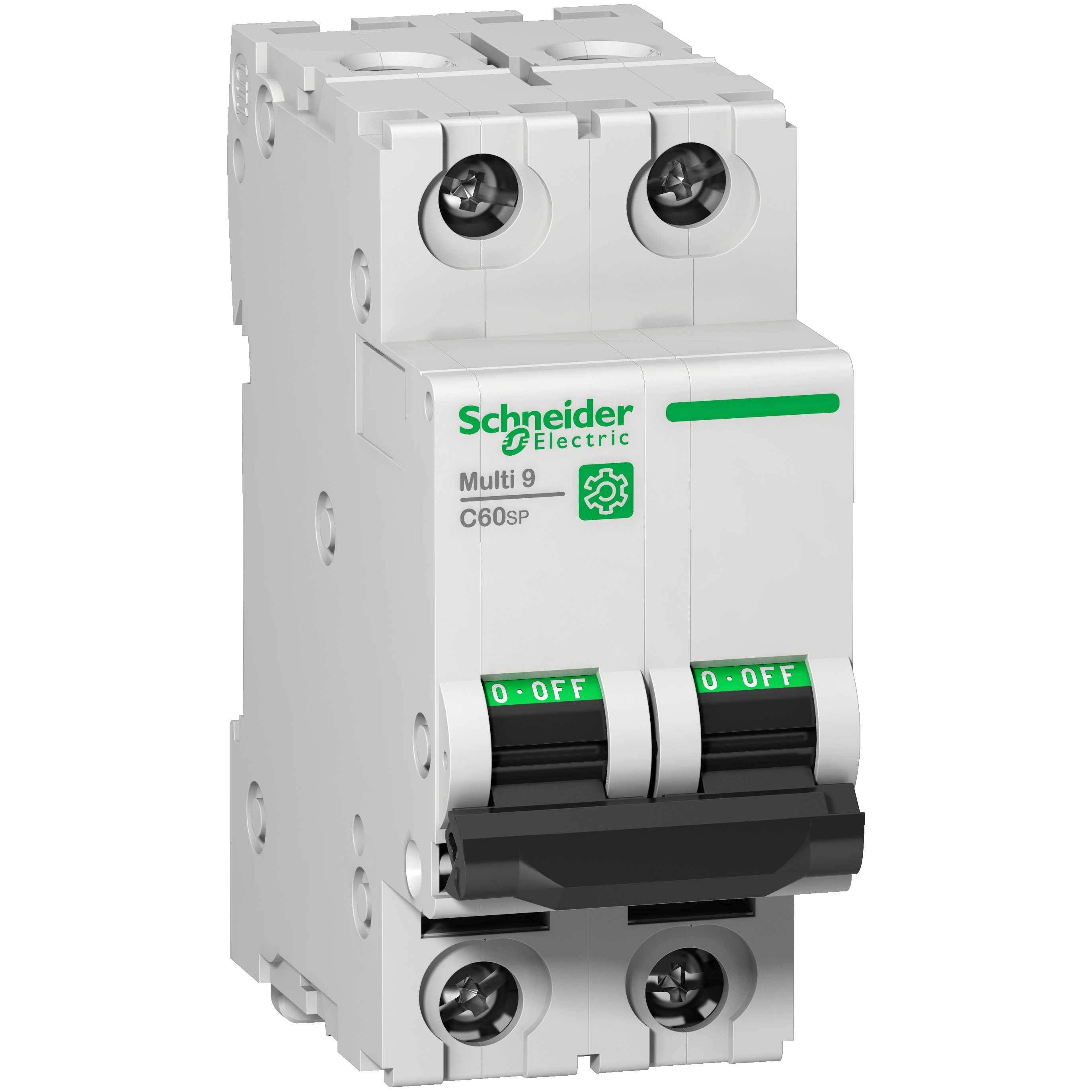

Square D™ M9F22245 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 45 A, 5 kA Interrupt, 2 Poles, C-Curve/Thermal Magnetic Trip
Square D™
Square D™ M9F22245 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 45 A, 5 kA Interrupt, 2 Poles, C-Curve/Thermal Magnetic Trip
SKUPDW~13031595
MFGR #M9F22245
Your Cost: $277.85/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 45 A, 50 to 60 Hz Frequency, 5 kA Interrupt, C-Curve/Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Connection, 18 to 2 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 3.19 in H x 1.42 in W x 2.83 in D Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 45 A, 50 to 60 Hz Frequency, 5 kA Interrupt, C-Curve/Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Connection, 18 to 2 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 3.19 in H x 1.42 in W x 2.83 in D Dimensions, Gray
Actuator Type Toggle Alternate Catalog Number M9F22245 ARRA Compliant N Buy American Compliant N Catalog Number M9F22245 Color Gray Connection Type Tunnel Country of Origin FR Currency USD Dimensions 3.19 in H x 1.42 in W x 2.83 in D Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50 to 60 Gross Volume Per Pack 15.30 Gross Volume per Pack Metric 250.72 Gross Weight Per Pack 2.4600 lb Gross Weight per Pack Metric 246.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 7.5000 in Height [Metric] 7.5000 cm Item Group 00948 Length 8.5000 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710751&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 2 Returnable N Series C60SP Substitute Product Catalog Number M9A26948 Temperature Rating -22 to 158 Trip Range 8.5X In AC/12X In DC Type Multi-Standard UNSPSC 39121633 UPC 11 78590174736 UPC 12 785901747369 Width 3.6000 in Width [Metric] 3.6000 cm Wire Size 18 to 2 AWG Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 45 Interrupt Rating 5 Trip Type Thermal Magnetic/C-Curve Voltage Rating 240/415/440
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F22245 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F22245 |
| Color | Gray |
| Connection Type | Tunnel |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 3.19 in H x 1.42 in W x 2.83 in D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50 to 60 |
| Gross Volume Per Pack | 15.30 |
| Gross Volume per Pack Metric | 250.72 |
| Gross Weight Per Pack | 2.4600 lb |
| Gross Weight per Pack Metric | 246.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 7.5000 in |
| Height [Metric] | 7.5000 cm |
| Item Group | 00948 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710751&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 2 |
| Returnable | N |
| Series | C60SP |
| Substitute Product Catalog Number | M9A26948 |
| Temperature Rating | -22 to 158 |
| Trip Range | 8.5X In AC/12X In DC |
| Type | Multi-Standard |
| UNSPSC | 39121633 |
| UPC 11 | 78590174736 |
| UPC 12 | 785901747369 |
| Width | 3.6000 in |
| Width [Metric] | 3.6000 cm |
| Wire Size | 18 to 2 AWG Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 45 |
| Interrupt Rating | 5 |
| Trip Type | Thermal Magnetic/C-Curve |
| Voltage Rating | 240/415/440 |
