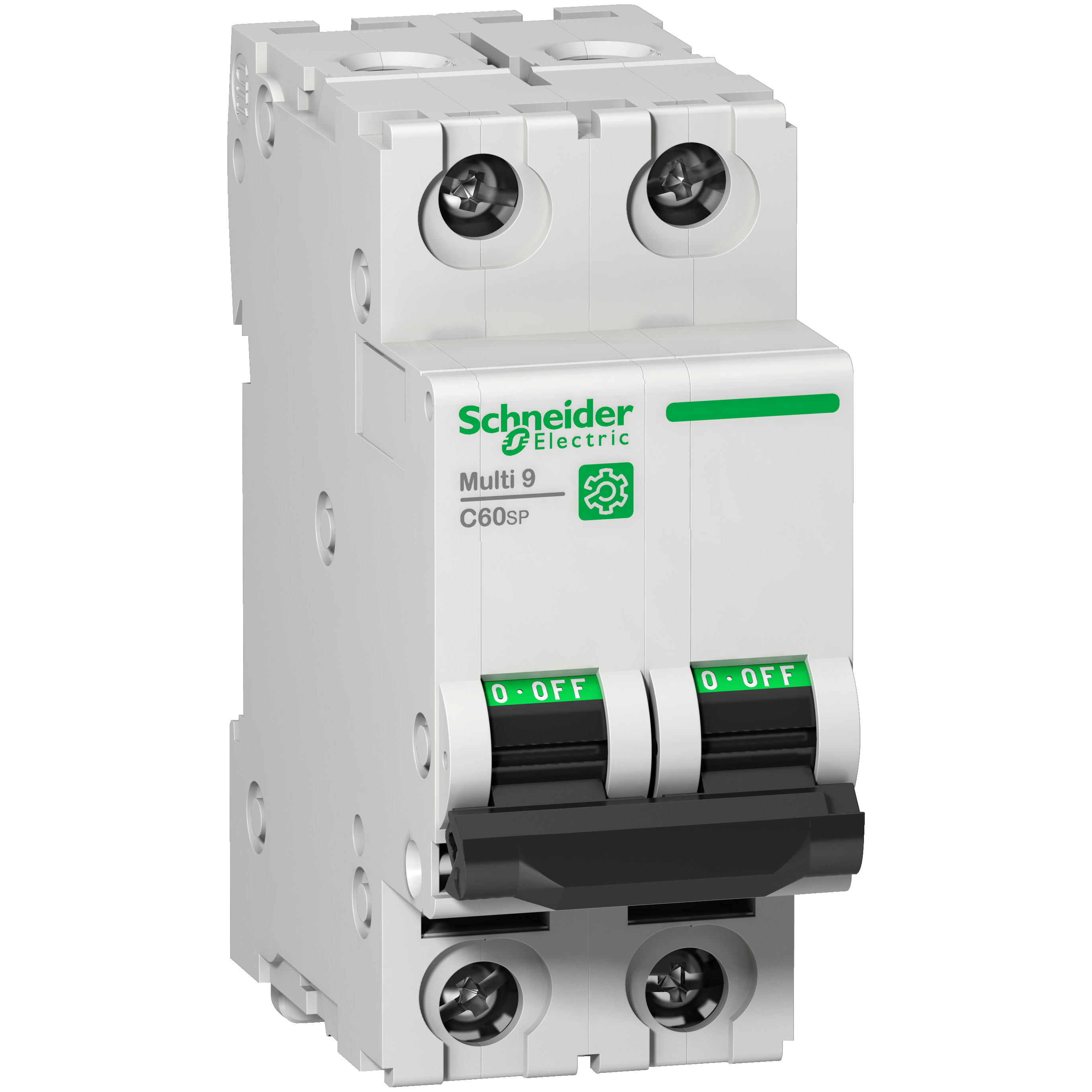

Square D™ M9F21204 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 4 A, 10 kA Interrupt, 2 Poles, B-Curve Thermal Magnetic Trip
Square D™ M9F21204 C60SP Multi-Standard Miniature Circuit Breaker, 240/415/440 VAC, 4 A, 10 kA Interrupt, 2 Poles, B-Curve Thermal Magnetic Trip
SKU1137925
MFGR #M9F21204
Your Cost: $159.12/ea
List: Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 4 A, 50/60 Hz Frequency, 10 kA Interrupt, B-Curve Thermal Magnetic Trip, 4X In AC/5.7X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 1.42 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Multi-Standard, Series: C60SP, 240/415/440 VAC, 4 A, 50/60 Hz Frequency, 10 kA Interrupt, B-Curve Thermal Magnetic Trip, 4X In AC/5.7X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Terminal Connection, 18 to 8 AWG Cu Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 1.42 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F21204 Application DISTRIBUTION ARRA Compliant N Buy American Compliant N Catalog Number M9F21204 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible Connection Type Tunnel Terminal Country of Origin FR Currency USD Dimensions 1.42 in W x 2.83 in D x 3.19 in H Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Gross Volume Per Pack 14.28 Gross Volume per Pack Metric 234.01 Gross Weight Per Pack 0.5100 lb Gross Weight per Pack Metric 230.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.5000 in Height [Metric] 7.5000 cm Item Group 00948 Length 8.5000 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710679&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 2 Returnable Y Series C60SP Standard EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA Sub Brand Multi9 C60;C60SP Substitute Product Catalog Number M9A26929 Temperature Rating -22 to 158 Trip Range 4X In AC/5.7X In DC Type Multi-Standard UNSPSC 39121603 UPC 11 78590173961 UPC 12 785901739616 Width 3.6000 in Width [Metric] 3.6000 cm Wire Size 18 to 8 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 4 Interrupt Rating 10 Trip Type B-Curve/Thermal Magnetic Voltage Rating 240/415/440 Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F21204 |
| Application | DISTRIBUTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F21204 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule;tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible |
| Connection Type | Tunnel Terminal |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 1.42 in W x 2.83 in D x 3.19 in H |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 14.28 |
| Gross Volume per Pack Metric | 234.01 |
| Gross Weight Per Pack | 0.5100 lb |
| Gross Weight per Pack Metric | 230.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.5000 in |
| Height [Metric] | 7.5000 cm |
| Item Group | 00948 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446710679&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | C60SP |
| Standard | EN/IEC 60947-2;GB 14048.2;UL 1077;CSA C22.2 No 235;IEC;CCC;UR;CSA |
| Sub Brand | Multi9 C60;C60SP |
| Substitute Product Catalog Number | M9A26929 |
| Temperature Rating | -22 to 158 |
| Trip Range | 4X In AC/5.7X In DC |
| Type | Multi-Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590173961 |
| UPC 12 | 785901739616 |
| Width | 3.6000 in |
| Width [Metric] | 3.6000 cm |
| Wire Size | 18 to 8 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 4 |
| Interrupt Rating | 10 |
| Trip Type | B-Curve/Thermal Magnetic |
| Voltage Rating | 240/415/440 |
| Distribution |
| ON/OFF indication |
