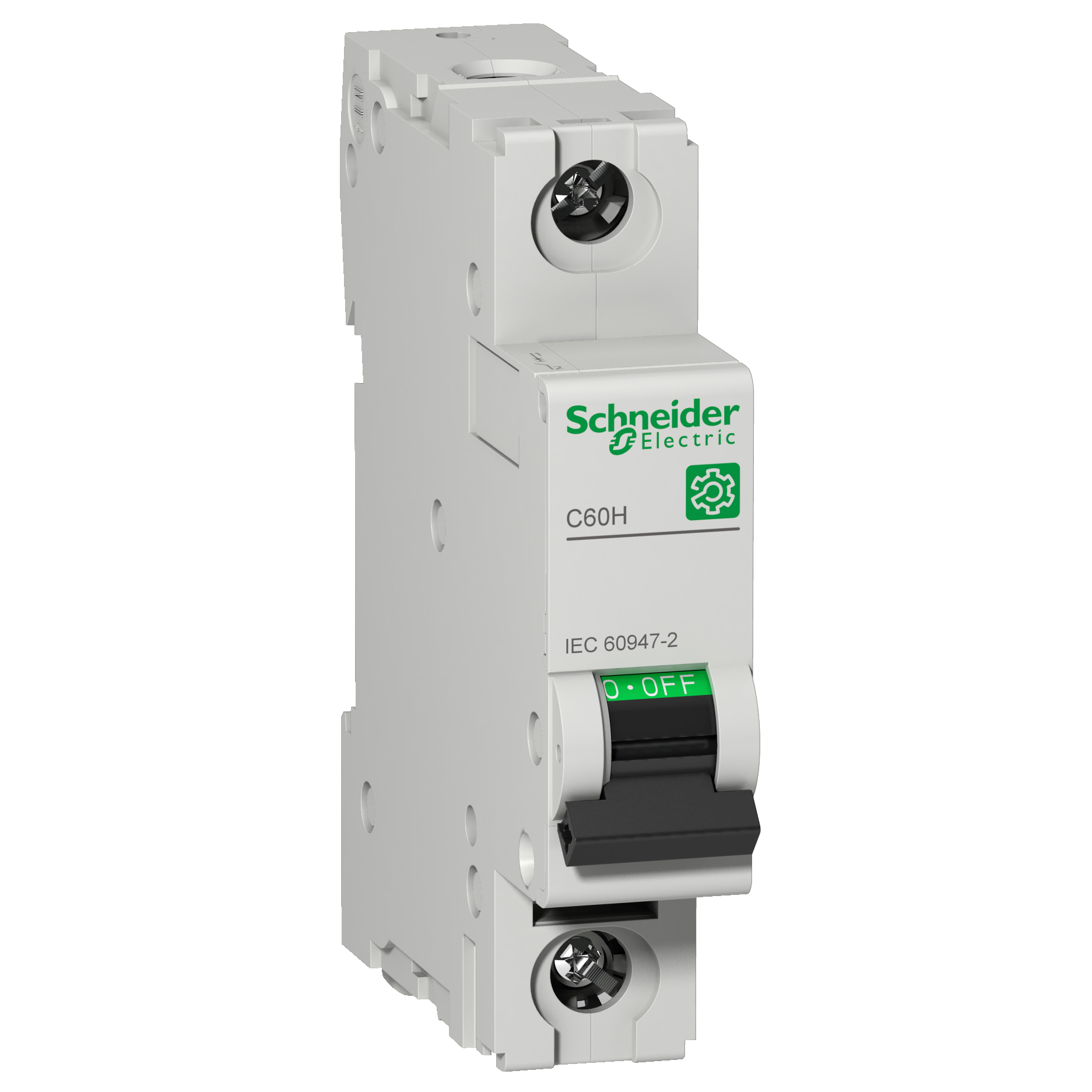

Square D™ M9F14116 Miniature Circuit Breaker, 240/415 VAC/72 VDC, 16 A, 20 kA at <=72 VDC/3 kA at 415 VAC/15 kA at 240 VAC Interrupt, 1 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ M9F14116 Miniature Circuit Breaker, 240/415 VAC/72 VDC, 16 A, 20 kA at <=72 VDC/3 kA at 415 VAC/15 kA at 240 VAC Interrupt, 1 Poles, Thermal Magnetic Trip
SKUPDW~11743063
MFGR #M9F14116
Your Cost: $217.97/ea
List: Schneider Electric Square D™ Miniature Circuit Breaker, Series: Multi 9 C60, 240/415 VAC/72 VDC, 16 A, 50/60 Hz Frequency, 20 kA at <=72 VDC/3 kA at 415 VAC/15 kA at 240 VAC Interrupt, Thermal Magnetic Trip, 1 Pole, Toggle Actuator, Tunnel Connection, IP20/IP40 Enclosure, Clip/DIN Rail Mounting, -30 to 70 deg C, 72 mm L x 18 mm W x 81 mm H Dimensions, Gray
Schneider Electric Square D™ Miniature Circuit Breaker, Series: Multi 9 C60, 240/415 VAC/72 VDC, 16 A, 50/60 Hz Frequency, 20 kA at <=72 VDC/3 kA at 415 VAC/15 kA at 240 VAC Interrupt, Thermal Magnetic Trip, 1 Pole, Toggle Actuator, Tunnel Connection, IP20/IP40 Enclosure, Clip/DIN Rail Mounting, -30 to 70 deg C, 72 mm L x 18 mm W x 81 mm H Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F14116 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F14116 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² - rigid;tunnel type terminal top or bottom) 1-25 mm² - flexible;tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule Connection Type Tunnel Country of Origin FR Currency USD Dimensions 72 mm L x 18 mm W x 81 mm H Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 14.15 Gross Volume per Pack Metric 231.88 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2300 lb Gross Weight per Pack Metric 106.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 0.7874 in Height [Metric] 1.8000 cm Item Group 00908 Length 3.1496 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804277&lang=en-us Mounting Type Clip/DIN Rail Number Of Poles 1 Operating Temperature -30-70 A°C Returnable N Series Multi 9 C60 Standard EN/IEC 60947-2;EAC;CCC Sub Brand Multi9 C60;C60H Substitute Product Catalog Number A9XPH124 Temperature Rating -30 to 70 Type Miniature circuit-breaker UNSPSC 39121603 Upsell Product Catalog Number M9A26946 Width 3.1496 in Width [Metric] 7.5000 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 16 Trip Type Thermal Magnetic Voltage Rating 240/415 VAC/72 VDC Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F14116 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F14116 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² - rigid;tunnel type terminal top or bottom) 1-25 mm² - flexible;tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule |
| Connection Type | Tunnel |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 72 mm L x 18 mm W x 81 mm H |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 14.15 |
| Gross Volume per Pack Metric | 231.88 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2300 lb |
| Gross Weight per Pack Metric | 106.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 0.7874 in |
| Height [Metric] | 1.8000 cm |
| Item Group | 00908 |
| Length | 3.1496 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804277&lang=en-us |
| Mounting Type | Clip/DIN Rail |
| Number Of Poles | 1 |
| Operating Temperature | -30-70 A°C |
| Returnable | N |
| Series | Multi 9 C60 |
| Standard | EN/IEC 60947-2;EAC;CCC |
| Sub Brand | Multi9 C60;C60H |
| Substitute Product Catalog Number | A9XPH124 |
| Temperature Rating | -30 to 70 |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| Upsell Product Catalog Number | M9A26946 |
| Width | 3.1496 in |
| Width [Metric] | 7.5000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 16 |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240/415 VAC/72 VDC |
| Distribution |
| ON/OFF indication |
