Square D™

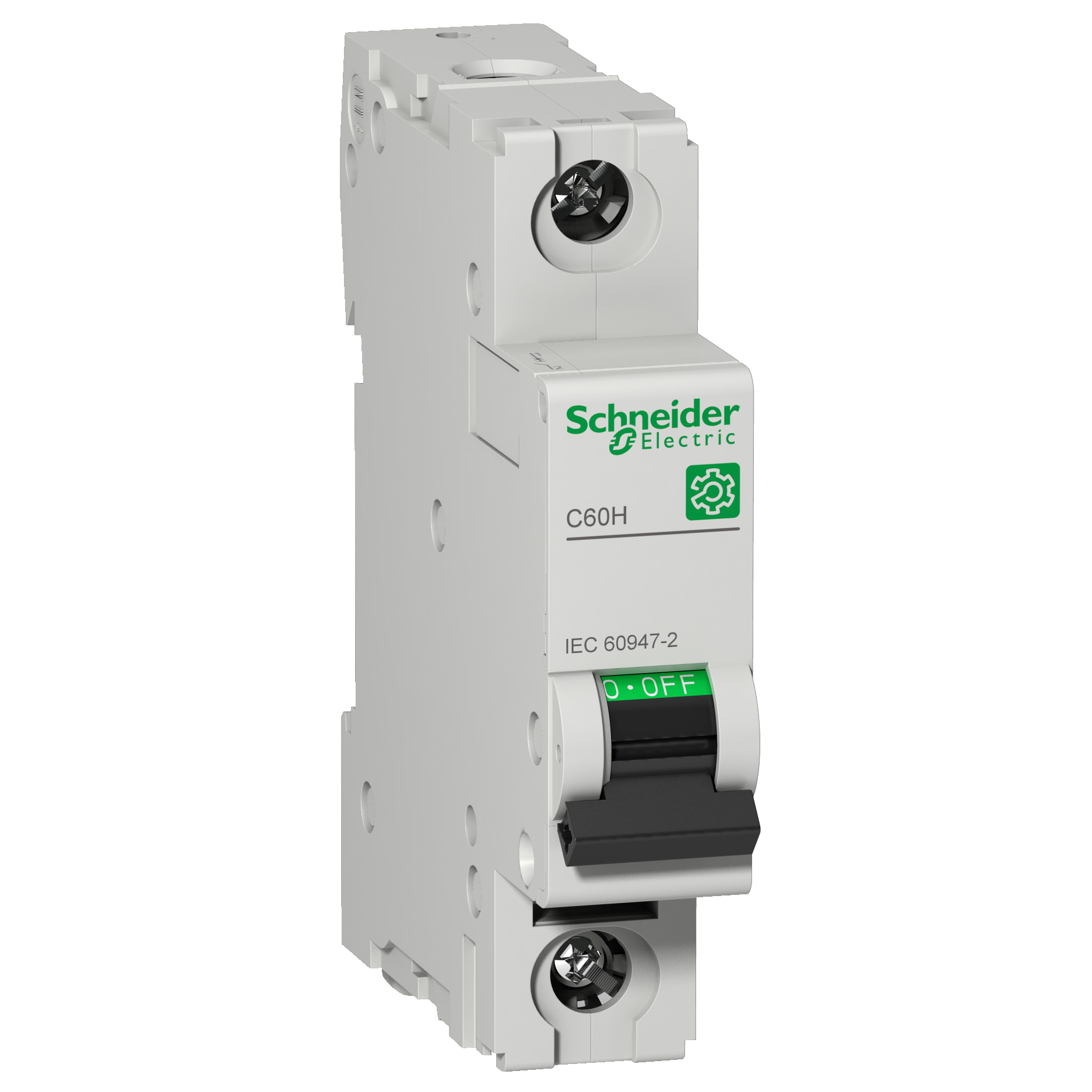

Square D™ M9F14110 C60H Miniature Circuit Breaker, 240/415 VAC/72 VDC, 10 A, 15 kA Interrupt, 1 Poles, C-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ M9F14110 C60H Miniature Circuit Breaker, 240/415 VAC/72 VDC, 10 A, 15 kA Interrupt, 1 Poles, C-Curve/Thermal Magnetic Trip
SKUPDW~11743062
MFGR #M9F14110
Your Cost: $114.97/ea
List: Schneider Electric Multi 9™ Miniature Circuit Breaker, Series: C60H, 240/415 VAC/72 VDC, 10 A, 50 to 60 Hz Frequency, 15 kA Interrupt, C-Curve/Thermal Magnetic Trip, 8.5 in AC/12 in DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 1 to 25 sq-mm Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 72 mm L x 18 mm W x 81 mm H Dimensions, Gray
Schneider Electric Multi 9™ Miniature Circuit Breaker, Series: C60H, 240/415 VAC/72 VDC, 10 A, 50 to 60 Hz Frequency, 15 kA Interrupt, C-Curve/Thermal Magnetic Trip, 8.5 in AC/12 in DC Trip, 1 Pole, Toggle Actuator, Tunnel Terminal Connection, 1 to 25 sq-mm Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 72 mm L x 18 mm W x 81 mm H Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F14110 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F14110 Color Gray Connection TUNNEL TYPE TERMINAL TOP OR BOTTOM) 1-25 MMA² - RIGID-TUNNEL TYPE TERMINAL TOP OR BOTTOM) 1-25 MMA² - FLEXIBLE-TUNNEL TYPE TERMINAL TOP OR BOTTOM) 1-25 MMA² - FLEXIBLE WITH FERRULE Connection Type Tunnel Terminal Country of Origin FR Currency USD Dimensions 72 mm L x 18 mm W x 81 mm H Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 6.47 Gross Volume per Pack Metric 106.02 Gross Weight Per Pack 1.0600 lb Gross Weight per Pack Metric 106.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 1.8000 in Height [Metric] 1.8000 cm Item Group 00908 Length 8.5000 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804276&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 1 Operating Temperature -30-70 A°C Returnable Y Series C60H Standard EAC-CCC,EN/IEC 60947-2,IP20IEC 60529-IP40 MODULAR ENCLOSURE)IEC 60529 Sub Brand C60H,MULTI 9 C60 Substitute Product Catalog Number M9A26478 Temperature Rating -22 to 158 Trip Range 8.5 in AC/12 in DC Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 78590151247 UPC 12 785901512479 Width 7.5000 in Width [Metric] 7.5000 cm Wire Size 1 to 25 Brand Square D™ Manufacturer Schneider Electric Amperage Rating 10 A 50 A°C EN/IEC 60947-2 Trip Type Thermal-magnetic DISTRIBUTION ON/OFF INDICATION
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F14110 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F14110 |
| Color | Gray |
| Connection | TUNNEL TYPE TERMINAL TOP OR BOTTOM) 1-25 MMA² - RIGID-TUNNEL TYPE TERMINAL TOP OR BOTTOM) 1-25 MMA² - FLEXIBLE-TUNNEL TYPE TERMINAL TOP OR BOTTOM) 1-25 MMA² - FLEXIBLE WITH FERRULE |
| Connection Type | Tunnel Terminal |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 72 mm L x 18 mm W x 81 mm H |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 6.47 |
| Gross Volume per Pack Metric | 106.02 |
| Gross Weight Per Pack | 1.0600 lb |
| Gross Weight per Pack Metric | 106.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 1.8000 in |
| Height [Metric] | 1.8000 cm |
| Item Group | 00908 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804276&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 1 |
| Operating Temperature | -30-70 A°C |
| Returnable | Y |
| Series | C60H |
| Standard | EAC-CCC,EN/IEC 60947-2,IP20IEC 60529-IP40 MODULAR ENCLOSURE)IEC 60529 |
| Sub Brand | C60H,MULTI 9 C60 |
| Substitute Product Catalog Number | M9A26478 |
| Temperature Rating | -22 to 158 |
| Trip Range | 8.5 in AC/12 in DC |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 78590151247 |
| UPC 12 | 785901512479 |
| Width | 7.5000 in |
| Width [Metric] | 7.5000 cm |
| Wire Size | 1 to 25 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 10 A 50 A°C EN/IEC 60947-2 |
| Trip Type | Thermal-magnetic |
| DISTRIBUTION |
| ON/OFF INDICATION |
