Square D™

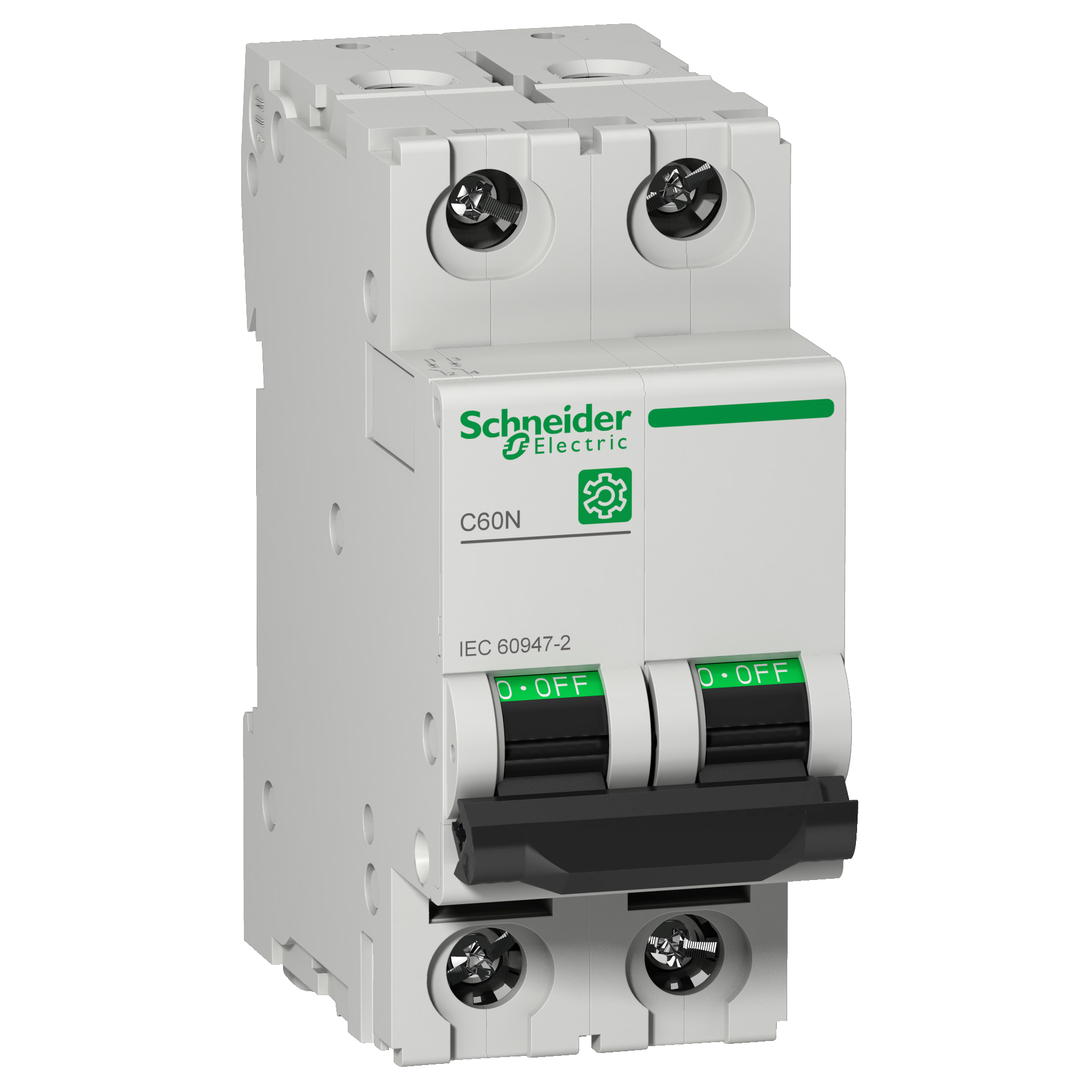

Square D™ M9F11216 C60N Miniature Circuit Breaker, 240/415 VAC, 16 A, 10 kA Interrupt, 2 Poles, C-Curve/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ M9F11216 C60N Miniature Circuit Breaker, 240/415 VAC, 16 A, 10 kA Interrupt, 2 Poles, C-Curve/Thermal Magnetic Trip
SKUPDW~11083913
MFGR #M9F11216
Your Cost: $190.38/ea
List: Schneider Electric Miniature Circuit Breaker, Series: C60N, 240/415 VAC, 16 A, 50 to 60 Hz Frequency, 10 kA Interrupt, C-Curve/Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Terminal Connection, 1 to 25 sq-mm Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 1.42 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Schneider Electric Miniature Circuit Breaker, Series: C60N, 240/415 VAC, 16 A, 50 to 60 Hz Frequency, 10 kA Interrupt, C-Curve/Thermal Magnetic Trip, 8.5X In AC/12X In DC Trip, 2 Pole, Toggle Actuator, Tunnel Terminal Connection, 1 to 25 sq-mm Wire, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -22 to 158 deg F, 1.42 in W x 2.83 in D x 3.19 in H Dimensions, Gray
Actuator Toggle Actuator Type Toggle Alternate Catalog Number M9F11216 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number M9F11216 Color Gray Connection Tunnel type terminal top or bottom) 1-25 mm² - rigid;tunnel type terminal top or bottom) 1-25 mm² - flexible;tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule Connection Type Tunnel Terminal Country of Origin BG Currency USD Dimensions 1.42 in W x 2.83 in D x 3.19 in H Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50 to 60 Hz Gross Volume Per Pack 14.85 Gross Volume per Pack Metric 243.35 Gross Weight Per Pack 2.0900 lb Gross Weight per Pack Metric 209.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 3.6000 in Height [Metric] 3.6000 cm Item Group 00908 Length 8.5000 in Length [Metric] 8.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804161&lang=en-us Mounting Type Clip-On/DIN Rail Number Of Poles 2 Operating Temperature -30-70 A°C Returnable Y Series C60N Standard EN/IEC 60947-2;EAC;KC;CCC Sub Brand Multi9 C60;C60N Substitute Product Catalog Number A9XPH257 Temperature Rating -22 to 158 Trip Range 8.5X In AC/12X In DC Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 785901993605 UPC 12 785901993605 Width 7.5000 in Width [Metric] 7.5000 cm Wire Size 1 to 25 Brand Square D™ Manufacturer Schneider Electric Amperage Rating 16 Interrupt Rating 10 Trip Type Thermal Magnetic/C-Curve Voltage Rating 240/415 Distribution ON/OFF indication
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | M9F11216 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | M9F11216 |
| Color | Gray |
| Connection | Tunnel type terminal top or bottom) 1-25 mm² - rigid;tunnel type terminal top or bottom) 1-25 mm² - flexible;tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule |
| Connection Type | Tunnel Terminal |
| Country of Origin | BG |
| Currency | USD |
| Dimensions | 1.42 in W x 2.83 in D x 3.19 in H |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50 to 60 Hz |
| Gross Volume Per Pack | 14.85 |
| Gross Volume per Pack Metric | 243.35 |
| Gross Weight Per Pack | 2.0900 lb |
| Gross Weight per Pack Metric | 209.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.6000 in |
| Height [Metric] | 3.6000 cm |
| Item Group | 00908 |
| Length | 8.5000 in |
| Length [Metric] | 8.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=244804161&lang=en-us |
| Mounting Type | Clip-On/DIN Rail |
| Number Of Poles | 2 |
| Operating Temperature | -30-70 A°C |
| Returnable | Y |
| Series | C60N |
| Standard | EN/IEC 60947-2;EAC;KC;CCC |
| Sub Brand | Multi9 C60;C60N |
| Substitute Product Catalog Number | A9XPH257 |
| Temperature Rating | -22 to 158 |
| Trip Range | 8.5X In AC/12X In DC |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 785901993605 |
| UPC 12 | 785901993605 |
| Width | 7.5000 in |
| Width [Metric] | 7.5000 cm |
| Wire Size | 1 to 25 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 16 |
| Interrupt Rating | 10 |
| Trip Type | Thermal Magnetic/C-Curve |
| Voltage Rating | 240/415 |
| Distribution |
| ON/OFF indication |
