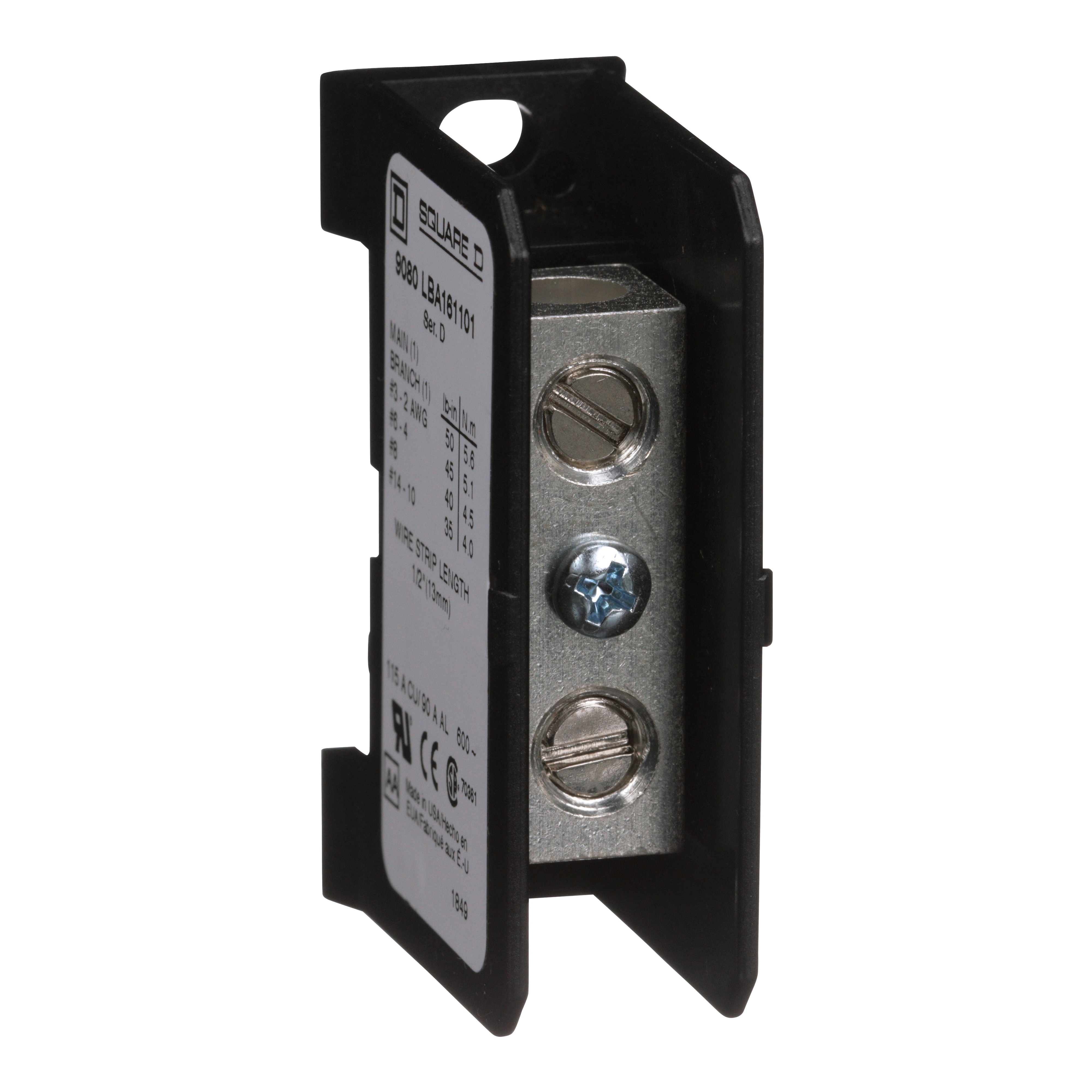

Square D™ Linergy™ 9080LBA161101 High Impact Linergy Miniature Power Distribution Block, 600 VAC/VDC, 90/115 A, 1 Poles, (1) 14 to 2 AWG, (4) 14 to 2 AWG Wire, Thermoplastic
Single Pole Distribution Blocks
1163434
MFG #: 9080LBA161101
Square D™
17.96000
/ ea
Square D™ Linergy™ Power Distribution Block, High Impact Linergy Miniature, Series: 9080LB, 600 VAC/VDC, 90/115 A, 1 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, (1) 14 to 2 AWG, (4) 14 to 2 AWG Wire, 65 kA Short Circuit, Thermoplastic, 0.76 in W x 1.62 in D x 2.29 in H Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8019111360Den&ext=webp(360 Degree View URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Brochure URL - e9db7cd0f86383283a3e4ff115b3774da5eb7d05.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0803001-01.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0803001-01.dxf(Computer~Aided [CAD|BIM] Model URL)
- Tech Drawing URL - 11003_QJEWXZ7LC1P9BF83.pdf(Tech Drawing URL)
- Spec Sheet URL - 11003_2OGLQSHJ0PKRB4VT.pdf(Spec Sheet URL)
- Tech Drawing URL(Tech Drawing URL)
- Applications
- Features
| For 9080LB, 9080LB11 power distribution block covers applications |
| (1) 14 to 2 AWG copper/aluminum main/branch cable |
| Lugs tin plated aluminum connection |
| 90 a Al/115 a copper current rated |
| (1) lug primary, (1) lug secondary |
