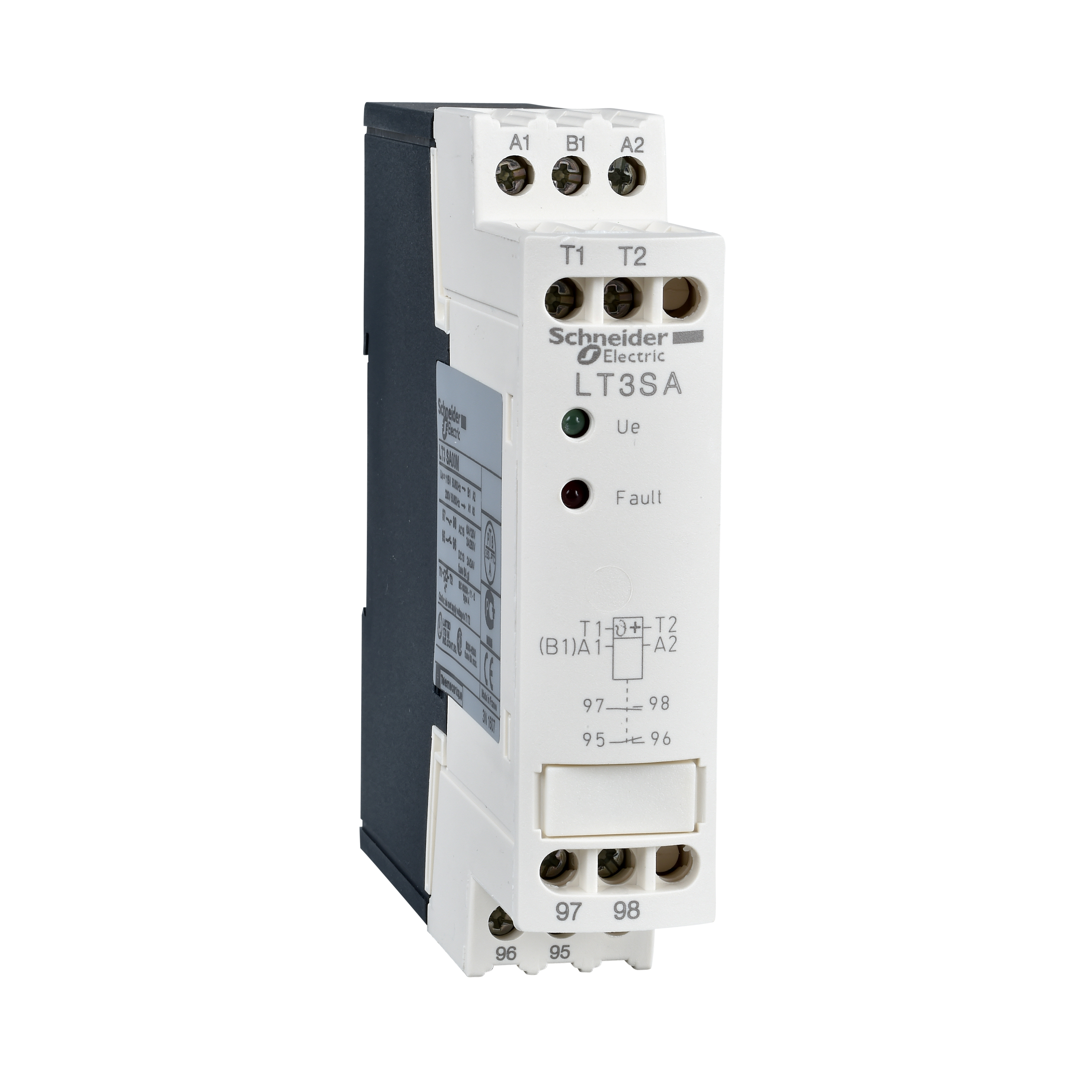

Square D™ LT3SA00MW Probe Relay, 5 A, 230 VAC Coil
SKU300501
MFGR #LT3SA00MW
Your Cost: $252.72/ea
Square D™ Probe Relay, Series: LT3, 5 A, 50/60 Hz, 230 VAC Coil, Cage Clamp Terminal, IP20, -25 to 60 deg C, 3.93 in H x 0.88 in W x 3.93 in D
Square D™ Probe Relay, Series: LT3, 5 A, 50/60 Hz, 230 VAC Coil, Cage Clamp Terminal, IP20, -25 to 60 deg C, 3.93 in H x 0.88 in W x 3.93 in D
Amperage Rating 5 Application FAULT INDICATION, VOLTAGE INDICATION ARRA Compliant C Brand Square D™ Buy American Compliant C Catalog Number LT3SA00MW Coil Voltage 230 Contact Configuration 2 C/O MULTI VOLTAGE Control Voltage Rating 24...230 V AC 50/60 HZ-24...230 V DC Country of Origin FR Dimensions 0.88 in W x 3.93 in D x 3.93 in H Enclosure Type IP20 EU RoHS Indicator Y Frequency Rating 50/60 Gross Volume Per Pack 16.81 Gross Volume per Pack Metric 275.47 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.3300 lb Gross Weight per Pack Metric 0.15 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490075 Height 1.00 in Height [Metric] 25.4000 mm Insulation OUTPUT CONTROL RELAY 500 V AC Item Group 22339 Length 4.10 in Length [Metric] 10.4140 cm Manufacturer Schneider Electric Operating Temperature -25-60 A°C Reset Type AUTOMATIC RESET Returnable Y Series LT3 Size 100 MM,100 MM,22.5 MM Stock Status NONSTOCK Sub Brand LT3SA Temperature Rating -25 to 60 Terminal Type Cage Clamp Type THERMISTOR PROTECTION UNITS UNSPSC 39122330 UPC 11 78590168826 UPC 12 785901688266 Width 4.10 in Width [Metric] 10.4140 cm FAULT INDICATION, VOLTAGE INDICATION FAULT INDICATION-VOLTAGE INDICATION 500 VAC output control relay rated insulation voltage 250 VAC, 50/60 Hz for output control relay rated operational voltage Automatic reset control type 2.5 kV rated impulse withstand voltage 2 A at 24 VDC DC-13, 3 A at 250 VAC AC-16, 6 A at 120 VAC AC-16 breaking capacity
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 5 |
| Application | FAULT INDICATION, VOLTAGE INDICATION |
| ARRA Compliant | C |
| Brand | Square D™ |
| Buy American Compliant | C |
| Catalog Number | LT3SA00MW |
| Coil Voltage | 230 |
| Contact Configuration | 2 C/O MULTI VOLTAGE |
| Control Voltage Rating | 24...230 V AC 50/60 HZ-24...230 V DC |
| Country of Origin | FR |
| Dimensions | 0.88 in W x 3.93 in D x 3.93 in H |
| Enclosure Type | IP20 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 16.81 |
| Gross Volume per Pack Metric | 275.47 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.3300 lb |
| Gross Weight per Pack Metric | 0.15 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490075 |
| Height | 1.00 in |
| Height [Metric] | 25.4000 mm |
| Insulation | OUTPUT CONTROL RELAY 500 V AC |
| Item Group | 22339 |
| Length | 4.10 in |
| Length [Metric] | 10.4140 cm |
| Manufacturer | Schneider Electric |
| Operating Temperature | -25-60 A°C |
| Reset Type | AUTOMATIC RESET |
| Returnable | Y |
| Series | LT3 |
| Size | 100 MM,100 MM,22.5 MM |
| Stock Status | NONSTOCK |
| Sub Brand | LT3SA |
| Temperature Rating | -25 to 60 |
| Terminal Type | Cage Clamp |
| Type | THERMISTOR PROTECTION UNITS |
| UNSPSC | 39122330 |
| UPC 11 | 78590168826 |
| UPC 12 | 785901688266 |
| Width | 4.10 in |
| Width [Metric] | 10.4140 cm |
| FAULT INDICATION, VOLTAGE INDICATION |
| FAULT INDICATION-VOLTAGE INDICATION |
| 500 VAC output control relay rated insulation voltage |
| 250 VAC, 50/60 Hz for output control relay rated operational voltage |
| Automatic reset control type |
| 2.5 kV rated impulse withstand voltage |
| 2 A at 24 VDC DC-13, 3 A at 250 VAC AC-16, 6 A at 120 VAC AC-16 breaking capacity |
