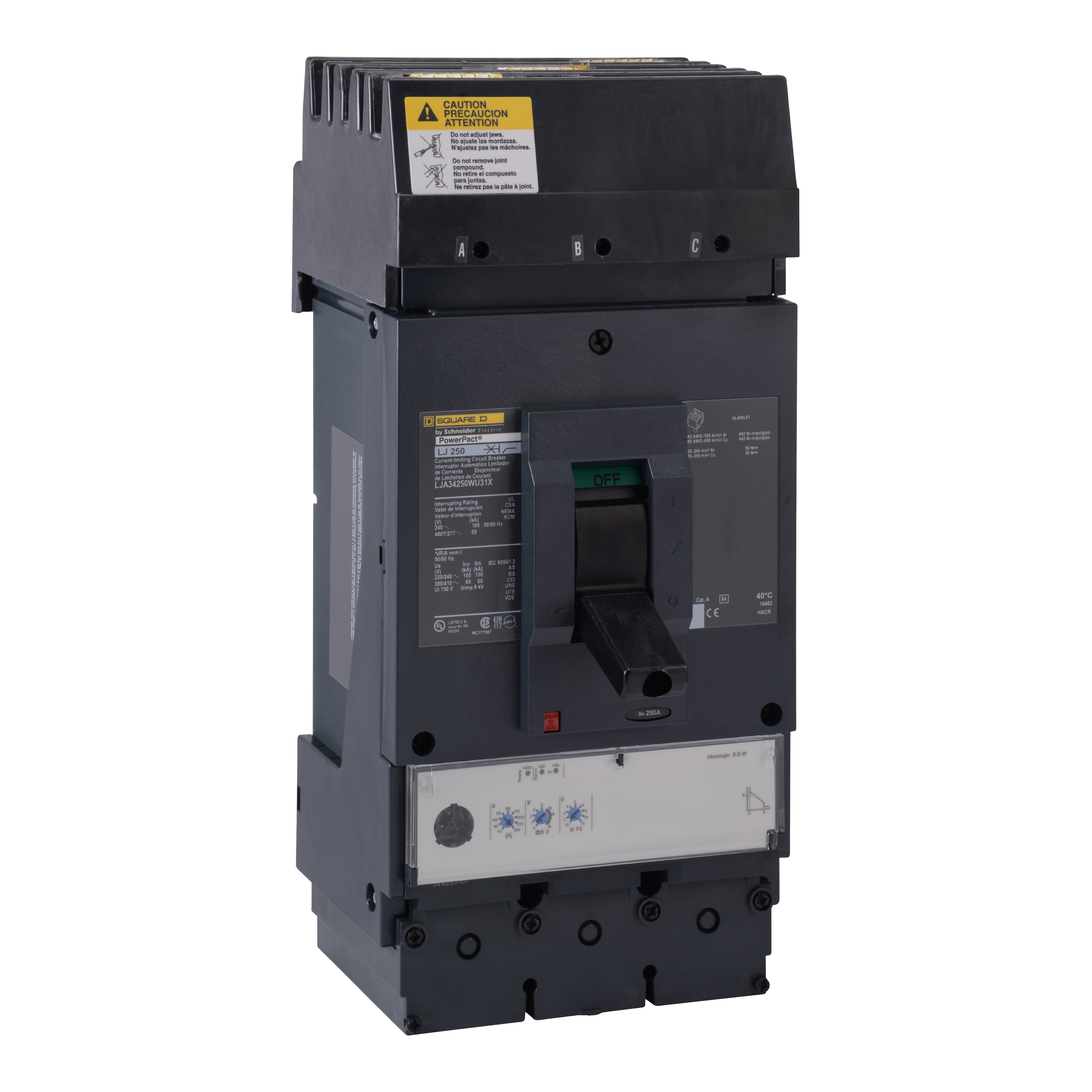

Square D™ LJA34600WU31X Standard Molded Case Circuit Breaker, 480Y/277 VAC, 600 A, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC Interrupt, 3 Poles, Electronic Micrologic LI Trip
Square D™ LJA34600WU31X Standard Molded Case Circuit Breaker, 480Y/277 VAC, 600 A, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC Interrupt, 3 Poles, Electronic Micrologic LI Trip
SKU1400347
MFGR #LJA34600WU31X
Your Cost: $12,032.69/ea
List: Schneider Electric I-Line™ PowerPact™ Molded Case Circuit Breaker, Standard, Series, 480Y/277, Amperage Rating VAC, A 600, Frequency Rating, Hz 50/60, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC Interrupt, Frame, Electronic Micrologic LI Trip, Trip Range, 3 Pole, Phase, Connection Type, Wire Size, Enclosure Type, Temperature Rating, 14.7 in H x 5.94 in W x 6.61 in D, Material, Finish
Schneider Electric I-Line™ PowerPact™ Molded Case Circuit Breaker, Standard, Series, 480Y/277, Amperage Rating VAC, A 600, Frequency Rating, Hz 50/60, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC Interrupt, Frame, Electronic Micrologic LI Trip, Trip Range, 3 Pole, Phase, Connection Type, Wire Size, Enclosure Type, Temperature Rating, 14.7 in H x 5.94 in W x 6.61 in D, Material, Finish
Actuator Toggle Alternate Catalog Number LJA34600WU31X Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number LJA34600WU31X Connection I-Line connection line;lugs load; 2 x AWG 2/0...500 kcmil aluminium/copper Connection Type Line/Load Lug Country of Origin UKN Currency USD Dimensions 14.7 in H x 5.94 in W x 6.61 in D Enclosure Type NEMA 12 EU RoHS Indicator Y Frame L Frame Frequency Rating 50/60 Gross Weight Per Pack 14.9690 lb Gross Weight per Pack Metric 6.80 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 14.55 in Height [Metric] 37.3000 cm Length 6.55 in Length [Metric] 16.8000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423270984&lang=en-us Number Of Poles 3 Returnable Y Sub Brand L-Frame;PowerPact L Type Standard UNSPSC 39121616 UPC 11 78590152944 UPC 12 785901529446 Warranty Description Contractual Warranty:18 months Width 5.89 in Width [Metric] 15.1000 cm Wire Size (2) 2/0 AWG to 500 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 600 Interrupt Rating 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC Trip Type Electronic Micrologic LI Voltage Rating 480Y/277 Distribution Modbus;Ethernet
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Alternate Catalog Number | LJA34600WU31X |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LJA34600WU31X |
| Connection | I-Line connection line;lugs load; 2 x AWG 2/0...500 kcmil aluminium/copper |
| Connection Type | Line/Load Lug |
| Country of Origin | UKN |
| Currency | USD |
| Dimensions | 14.7 in H x 5.94 in W x 6.61 in D |
| Enclosure Type | NEMA 12 |
| EU RoHS Indicator | Y |
| Frame | L Frame |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 14.9690 lb |
| Gross Weight per Pack Metric | 6.80 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 14.55 in |
| Height [Metric] | 37.3000 cm |
| Length | 6.55 in |
| Length [Metric] | 16.8000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423270984&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Sub Brand | L-Frame;PowerPact L |
| Type | Standard |
| UNSPSC | 39121616 |
| UPC 11 | 78590152944 |
| UPC 12 | 785901529446 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.89 in |
| Width [Metric] | 15.1000 cm |
| Wire Size | (2) 2/0 AWG to 500 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 600 |
| Interrupt Rating | 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC |
| Trip Type | Electronic Micrologic LI |
| Voltage Rating | 480Y/277 |
| Distribution |
| Modbus;Ethernet |
