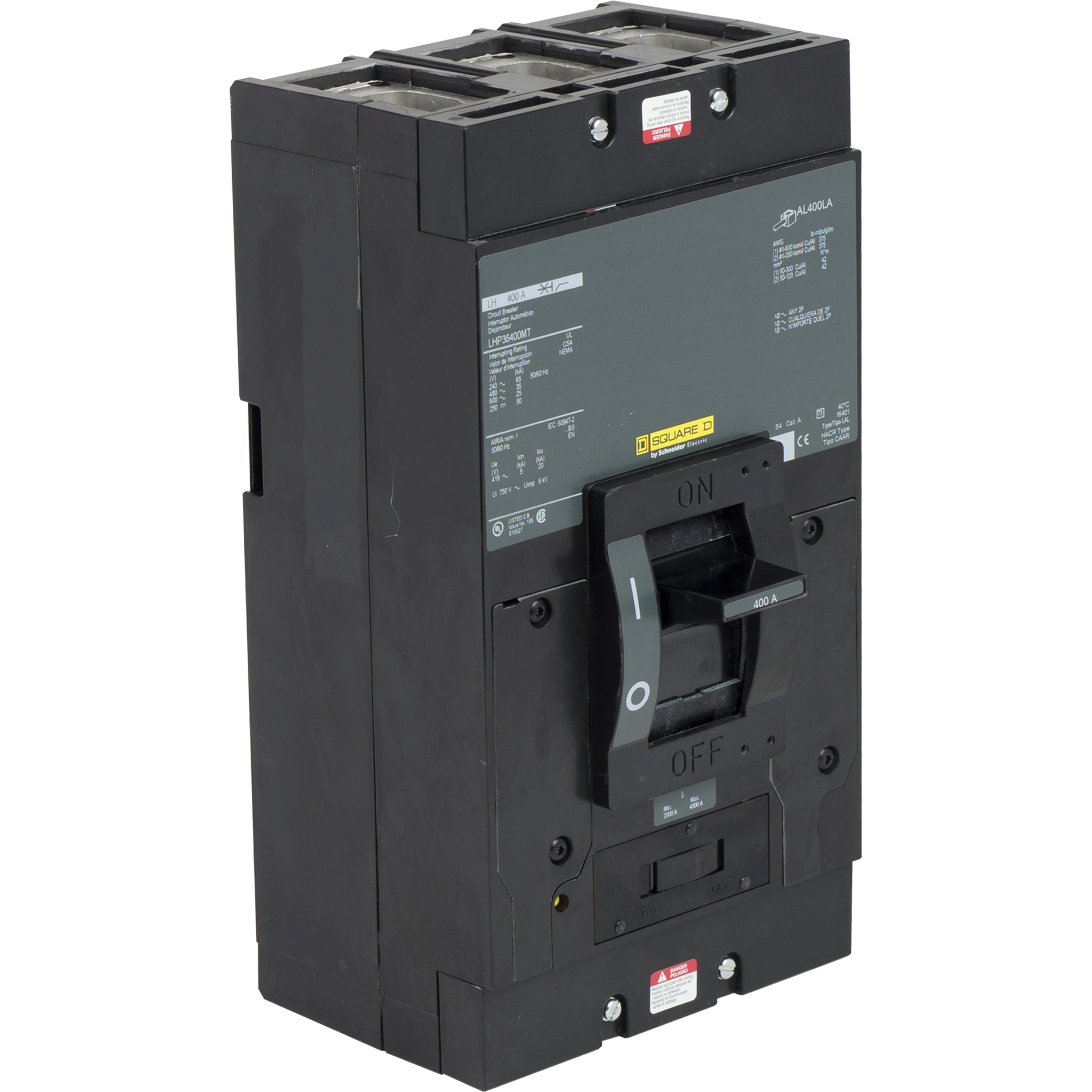

Square D™ LHP36400MT Molded Case Circuit Breaker, 600 VAC, 400 A, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ LHP36400MT Molded Case Circuit Breaker, 600 VAC, 400 A, 3 Poles, Thermal Magnetic Trip
SKU427163
MFGR #LHP36400MT
$/ea
Square D LHP36400MT MOLDED CASE CIRCUIT BREAKER 600V 400A,25 kA at 600 V AC-50 kA at 250 V DC-35 kA at 480 V AC-65 kA at 240 V AC,600 V AC,3P,400 A,400 A,600 V AC,H,UL Listed,circuit breaker,thermal-magnetic,unit mount
Square D LHP36400MT MOLDED CASE CIRCUIT BREAKER 600V 400A,25 kA at 600 V AC-50 kA at 250 V DC-35 kA at 480 V AC-65 kA at 240 V AC,600 V AC,3P,400 A,400 A,600 V AC,H,UL Listed,circuit breaker,thermal-magnetic,unit mount
Alternate Catalog Number LHP36400MT ARRA Compliant N Buy American Compliant N Catalog Number LHP36400MT Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LINE-TERMINAL LOAD Connection Type Line/Load Lugs Country of Origin MX Currency USD Dimensions 12-1/2 in H x 6 in W x 4 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame L Frame Frequency Rating 50/60 Hz Gross Volume Per Pack 1842.75 Gross Volume per Pack Metric 30197.14 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0721 lb Gross Weight per Pack Metric 7.21 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 23.1000 in Height [Metric] 23.1000 cm Item Group 00935 Length 44.5000 in Length [Metric] 44.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430621&lang=en-us Mounting Type Unit Number Of Poles 3 Returnable Y Standard UL LISTED-CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E10027CSA C22.2 No. 5-02 File No. LR7551IEC 60947-2Federal Specification W-C-375Beccn: EAR99 Temperature Rating -13 to 158 °F Trip Range 2000 to 4000 A Type CIRCUIT BREAKER,COVER OFF END UNSPSC 39121601 UPC 11 78590151239 UPC 12 785901512394 Warranty Description Contractual Warranty:18 months Width 29.2000 in Width [Metric] 29.2000 cm Wire Size 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/25 kA at 600 VAC/50 kA at 250 VDC Trip Type Thermal Magnetic Voltage Rating 600 VAC UNIT MOUNT 65 kA at 240 VAC, 35 kA at 480 VAC, 25 kA at 600 VAC, 50 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LHP36400MT |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LHP36400MT |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LINE-TERMINAL LOAD |
| Connection Type | Line/Load Lugs |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 12-1/2 in H x 6 in W x 4 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | L Frame |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1842.75 |
| Gross Volume per Pack Metric | 30197.14 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0721 lb |
| Gross Weight per Pack Metric | 7.21 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 23.1000 in |
| Height [Metric] | 23.1000 cm |
| Item Group | 00935 |
| Length | 44.5000 in |
| Length [Metric] | 44.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430621&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | UL LISTED-CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E10027CSA C22.2 No. 5-02 File No. LR7551IEC 60947-2Federal Specification W-C-375Beccn: EAR99 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 2000 to 4000 A |
| Type | CIRCUIT BREAKER,COVER OFF END |
| UNSPSC | 39121601 |
| UPC 11 | 78590151239 |
| UPC 12 | 785901512394 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.2000 in |
| Width [Metric] | 29.2000 cm |
| Wire Size | 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/25 kA at 600 VAC/50 kA at 250 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC |
| UNIT MOUNT |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 25 kA at 600 VAC, 50 kA at 250 VDC interrupt rating |
