Square D™

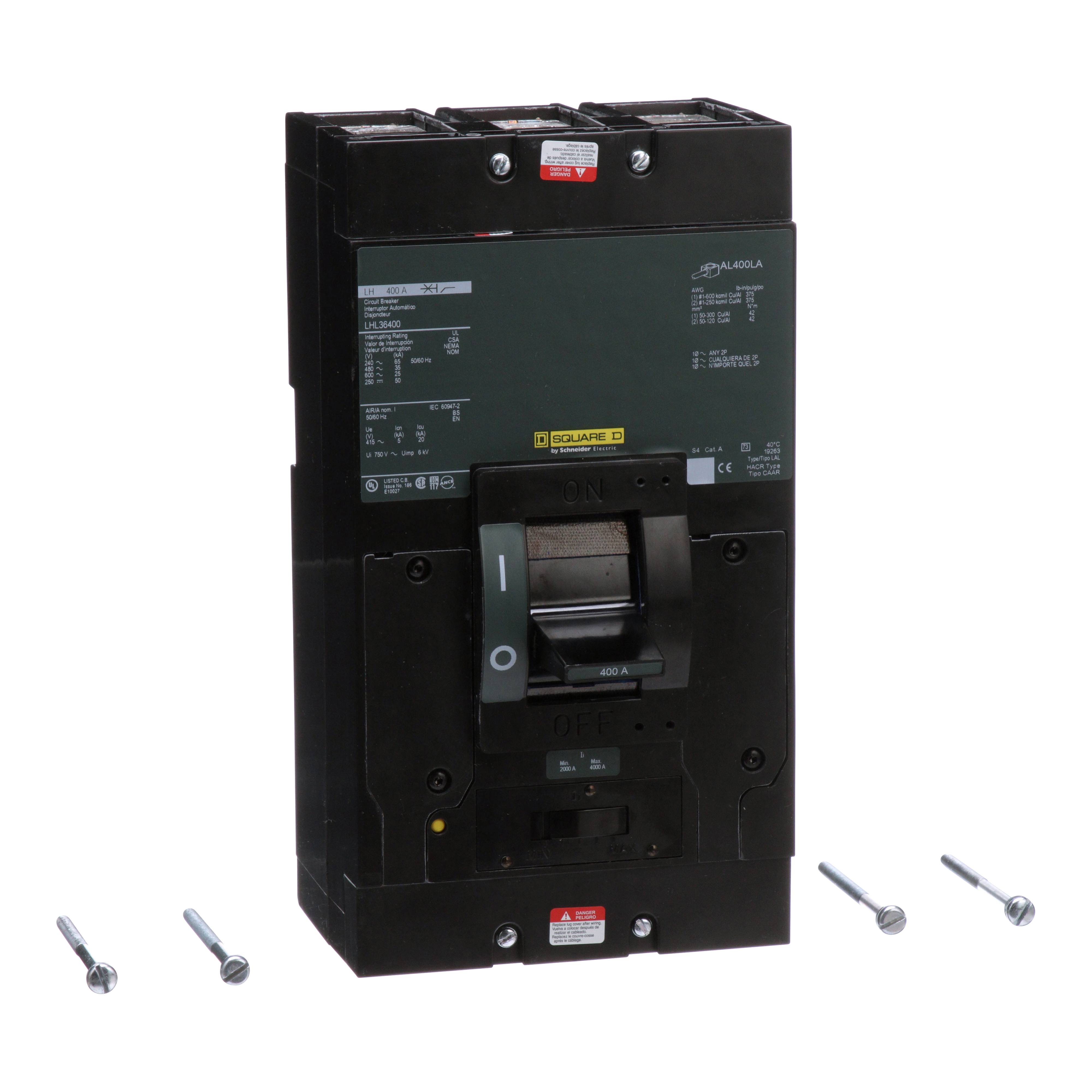

Square D™ LHL36400 Molded Case Circuit Breaker, 600 VAC/250 VDC, 400 A, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ LHL36400 Molded Case Circuit Breaker, 600 VAC/250 VDC, 400 A, 3 Poles, Thermal Magnetic Trip
SKU97775
MFGR #LHL36400
Your Cost: $6,588.56/ea
List: Square D LHL36400 MOLDED CASE CIRCUIT BREAKER 600V 400A,2000...4000 A,400 A,25 kA at 600 V AC-50 kA at 250 V DC-50 kA at 125 V DC-35 kA at 480 V AC-65 kA at 240 V AC,250 V DC-600 V AC,250 V DC-600 V AC,3P,400 A,L-Frame,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Square D LHL36400 MOLDED CASE CIRCUIT BREAKER 600V 400A,2000...4000 A,400 A,25 kA at 600 V AC-50 kA at 250 V DC-50 kA at 125 V DC-35 kA at 480 V AC-65 kA at 240 V AC,250 V DC-600 V AC,250 V DC-600 V AC,3P,400 A,L-Frame,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Alternate Catalog Number LHL36400 ARRA Compliant N Buy American Compliant N Catalog Number LHL36400 Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE Connection Type Line/Load Lugs Country of Origin MX Currency USD Dimensions 11 in H x 6 in W x 5.84 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame L Frame Frequency Rating 50/60 Hz Gross Volume Per Pack 1827.00 Gross Volume per Pack Metric 29939.05 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 16.1200 lb Gross Weight per Pack Metric 7.31 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 23.1000 in Height [Metric] 23.1000 cm Item Group 00935 Length 44.2000 in Length [Metric] 44.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430409&lang=en-us Mounting Type Unit Number Of Poles 3 Phase 3 pH Returnable Y Standard CSA-IEC-UL LISTED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E10027CSA C22.2 No. 5-02 File No. LR7551IEC 60947-2Federal Specification W-C-375Beccn: EAR99 Substitute Product Catalog Number S29450 Temperature Rating -13 to 158 °F Trip Range 2000 to 4000 A Type Circuit Breaker UNSPSC 39121601 UPC 11 78590133938 UPC 12 785901339380 Warranty Description Contractual Warranty:18 months Width 29.2000 in Width [Metric] 29.2000 cm Wire Size 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/25 kA at 600 VAC/50 kA at 250/125 VDC Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC UNIT MOUNT 65 kA at 240 VAC, 35 kA at 480 VAC, 25 kA at 600 VAC, 50 kA at 125 VDC, 50 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LHL36400 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LHL36400 |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lugs |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11 in H x 6 in W x 5.84 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | L Frame |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1827.00 |
| Gross Volume per Pack Metric | 29939.05 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 16.1200 lb |
| Gross Weight per Pack Metric | 7.31 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 23.1000 in |
| Height [Metric] | 23.1000 cm |
| Item Group | 00935 |
| Length | 44.2000 in |
| Length [Metric] | 44.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430409&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | CSA-IEC-UL LISTED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E10027CSA C22.2 No. 5-02 File No. LR7551IEC 60947-2Federal Specification W-C-375Beccn: EAR99 |
| Substitute Product Catalog Number | S29450 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 2000 to 4000 A |
| Type | Circuit Breaker |
| UNSPSC | 39121601 |
| UPC 11 | 78590133938 |
| UPC 12 | 785901339380 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.2000 in |
| Width [Metric] | 29.2000 cm |
| Wire Size | 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/25 kA at 600 VAC/50 kA at 250/125 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC |
| UNIT MOUNT |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 25 kA at 600 VAC, 50 kA at 125 VDC, 50 kA at 250 VDC interrupt rating |
