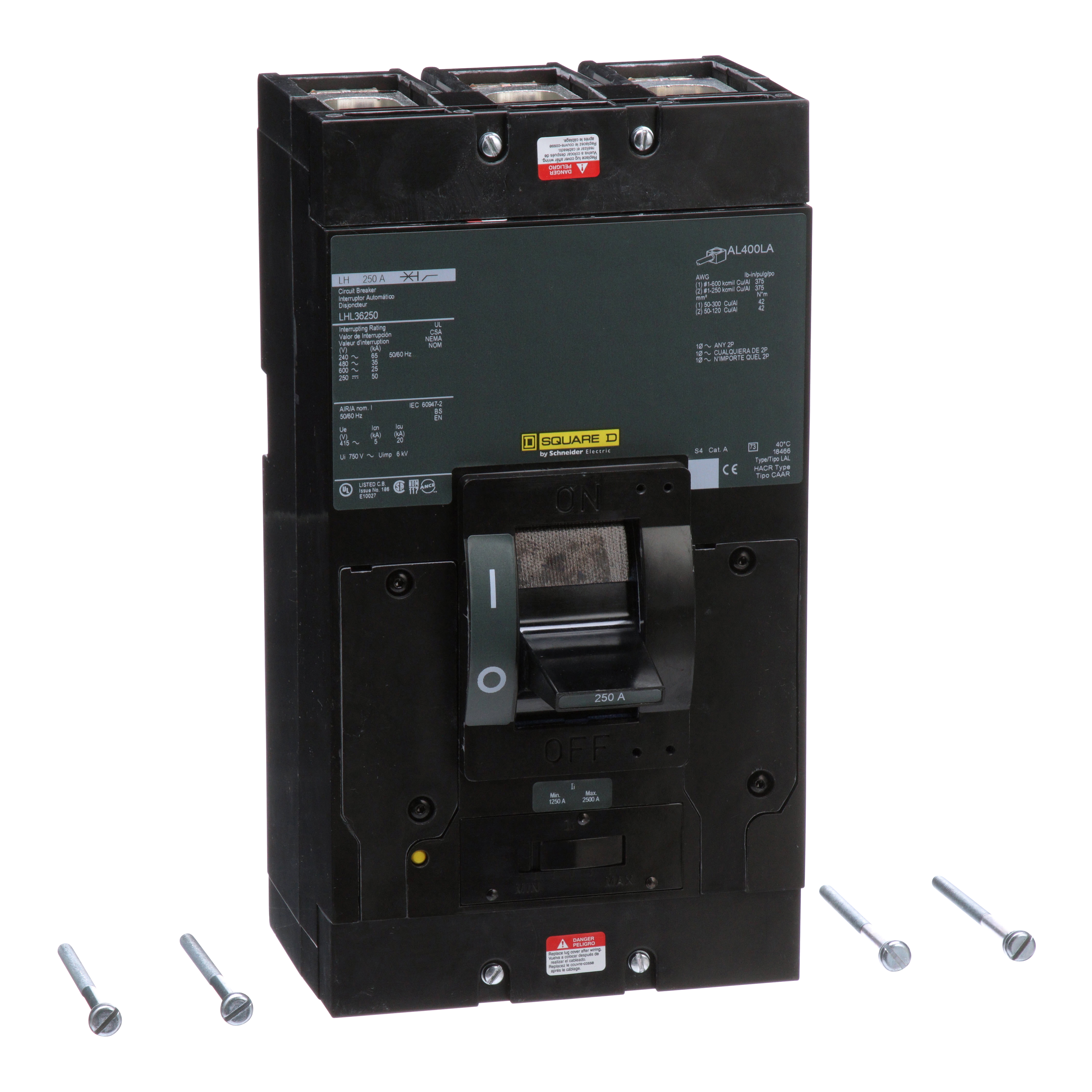

Square D™ LHL36250 Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ LHL36250 Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 3 Poles, Thermal Magnetic Trip
SKU97774
MFGR #LHL36250
Your Cost: $6,588.56/ea
List: Square D LHL36250 MOLDED CASE CIRCUIT BREAKER 600V 250A,1250...2500 A,250 A,25 kA at 600 V AC-50 kA at 125 V DC-50 kA at 250 V DC-35 kA at 480 V AC-65 kA at 240 V AC,250 V DC-600 V AC,250 A,250 V DC-600 V AC,3P,L-Frame,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Square D LHL36250 MOLDED CASE CIRCUIT BREAKER 600V 250A,1250...2500 A,250 A,25 kA at 600 V AC-50 kA at 125 V DC-50 kA at 250 V DC-35 kA at 480 V AC-65 kA at 240 V AC,250 V DC-600 V AC,250 A,250 V DC-600 V AC,3P,L-Frame,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Alternate Catalog Number LHL36250 ARRA Compliant N Buy American Compliant N Catalog Number LHL36250 Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE Connection Type Line/Load Lugs Country of Origin MX Currency USD Dimensions 11 in H x 6 in W x 5.84 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame L Frame Frequency Rating 50/60 Hz Gross Volume Per Pack 1860.93 Gross Volume per Pack Metric 30495.06 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 16.3100 lb Gross Weight per Pack Metric 7.40 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 23.6220 in Height [Metric] 23.4000 cm Item Group 00935 Length 44.1960 in Length [Metric] 43.7000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430253&lang=en-us Mounting Type Unit Number Of Poles 3 Phase 3 pH Returnable Y Standard CSA-UL LISTED-IEC Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E10027CSA C22.2 No. 5-02 File No. LR7551IEC 60947-2Federal Specification W-C-375Beccn: EAR99 Substitute Product Catalog Number S29450 Temperature Rating -13 to 158 °F Trip Range 1250 to 2500 A Type CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590133936 UPC 12 785901339366 Warranty Description Contractual Warranty:18 months Width 29.2100 in Width [Metric] 29.5000 cm Wire Size 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/25 kA at 600 VAC/50 kA at 125/250 VDC Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC UNIT MOUNT 65 kA at 240 VAC, 35 kA at 480 VAC, 25 kA at 600 VAC, 50 kA at 125 VDC, 50 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LHL36250 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LHL36250 |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lugs |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11 in H x 6 in W x 5.84 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | L Frame |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1860.93 |
| Gross Volume per Pack Metric | 30495.06 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 16.3100 lb |
| Gross Weight per Pack Metric | 7.40 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 23.6220 in |
| Height [Metric] | 23.4000 cm |
| Item Group | 00935 |
| Length | 44.1960 in |
| Length [Metric] | 43.7000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430253&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | CSA-UL LISTED-IEC |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E10027CSA C22.2 No. 5-02 File No. LR7551IEC 60947-2Federal Specification W-C-375Beccn: EAR99 |
| Substitute Product Catalog Number | S29450 |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 1250 to 2500 A |
| Type | CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590133936 |
| UPC 12 | 785901339366 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.2100 in |
| Width [Metric] | 29.5000 cm |
| Wire Size | 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/25 kA at 600 VAC/50 kA at 125/250 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC |
| UNIT MOUNT |
| 65 kA at 240 VAC, 35 kA at 480 VAC, 25 kA at 600 VAC, 50 kA at 125 VDC, 50 kA at 250 VDC interrupt rating |
