Square D™

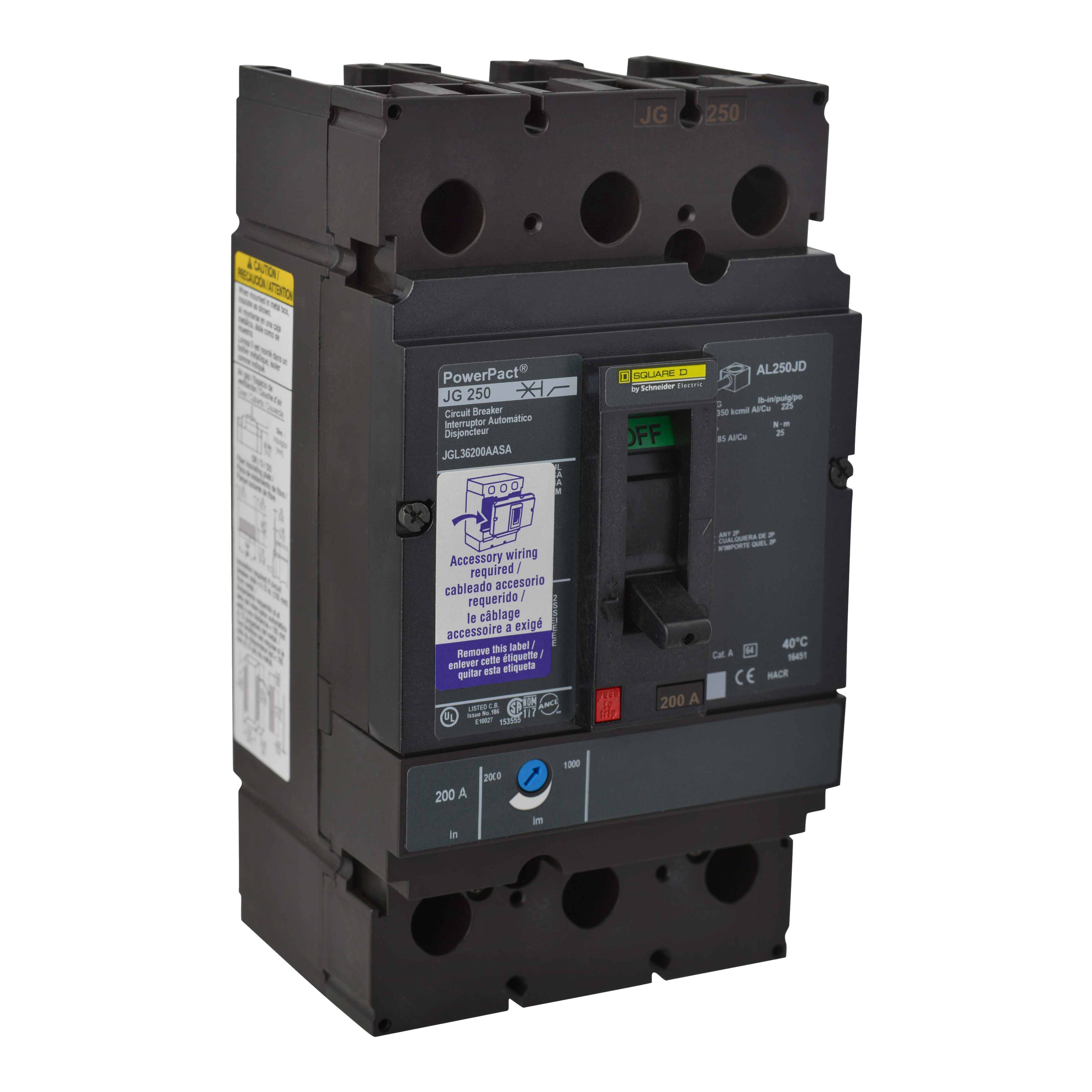

Square D™ JGL36250SALU Molded Case Circuit Breaker, 600 VAC, 250 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC Interrupt, 3 Poles, Shunt/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ JGL36250SALU Molded Case Circuit Breaker, 600 VAC, 250 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC Interrupt, 3 Poles, Shunt/Thermal Magnetic Trip
SKUPDW~7385065
MFGR #JGL36250SALU
Your Cost: $7,463.78/ea
List: Square D™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 250 A, 50/60 Hz, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC Interrupt, J Frame, Shunt/Thermal Magnetic Trip, 1250 to 2500 A Trip, 3 Pole, Line/Load Lug, 3/0 AWG to 350 kcmil Wire, NEMA AB1, Surface Mount, 104 deg F, 6.4 in H x 4.12 in W x 4.36 in D
Square D™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 250 A, 50/60 Hz, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC Interrupt, J Frame, Shunt/Thermal Magnetic Trip, 1250 to 2500 A Trip, 3 Pole, Line/Load Lug, 3/0 AWG to 350 kcmil Wire, NEMA AB1, Surface Mount, 104 deg F, 6.4 in H x 4.12 in W x 4.36 in D
Alternate Catalog Number JGL36250SALU ARRA Compliant N Buy American Compliant N Catalog Number JGL36250SALU Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame J Frequency Rating 50/60 Gross Weight Per Pack 5.0000 lb Gross Weight per Pack Metric 2.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 8.2677 in Height [Metric] 21.0820 cm Item Group 01115 Length 12.2047 in Length [Metric] 31.2420 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268667082&lang=en-us Mounting Type Surface Number Of Poles 3 Returnable N Temperature Rating 104 Trip Range 1250 to 2500 UNSPSC 39121616 UPC 11 78590167099 UPC 12 785901670995 Warranty Description Contractual Warranty:18 months Width 9.4488 in Width [Metric] 24.1300 cm Wire Size 3/0 AWG to 350 kcmil Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC Trip Type Shunt/Thermal Magnetic Voltage Rating 600
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Alternate Catalog Number | JGL36250SALU |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JGL36250SALU |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | J |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 5.0000 lb |
| Gross Weight per Pack Metric | 2.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 8.2677 in |
| Height [Metric] | 21.0820 cm |
| Item Group | 01115 |
| Length | 12.2047 in |
| Length [Metric] | 31.2420 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268667082&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Returnable | N |
| Temperature Rating | 104 |
| Trip Range | 1250 to 2500 |
| UNSPSC | 39121616 |
| UPC 11 | 78590167099 |
| UPC 12 | 785901670995 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.4488 in |
| Width [Metric] | 24.1300 cm |
| Wire Size | 3/0 AWG to 350 kcmil |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 A |
| Interrupt Rating | 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 250/500 VDC |
| Trip Type | Shunt/Thermal Magnetic |
| Voltage Rating | 600 |
