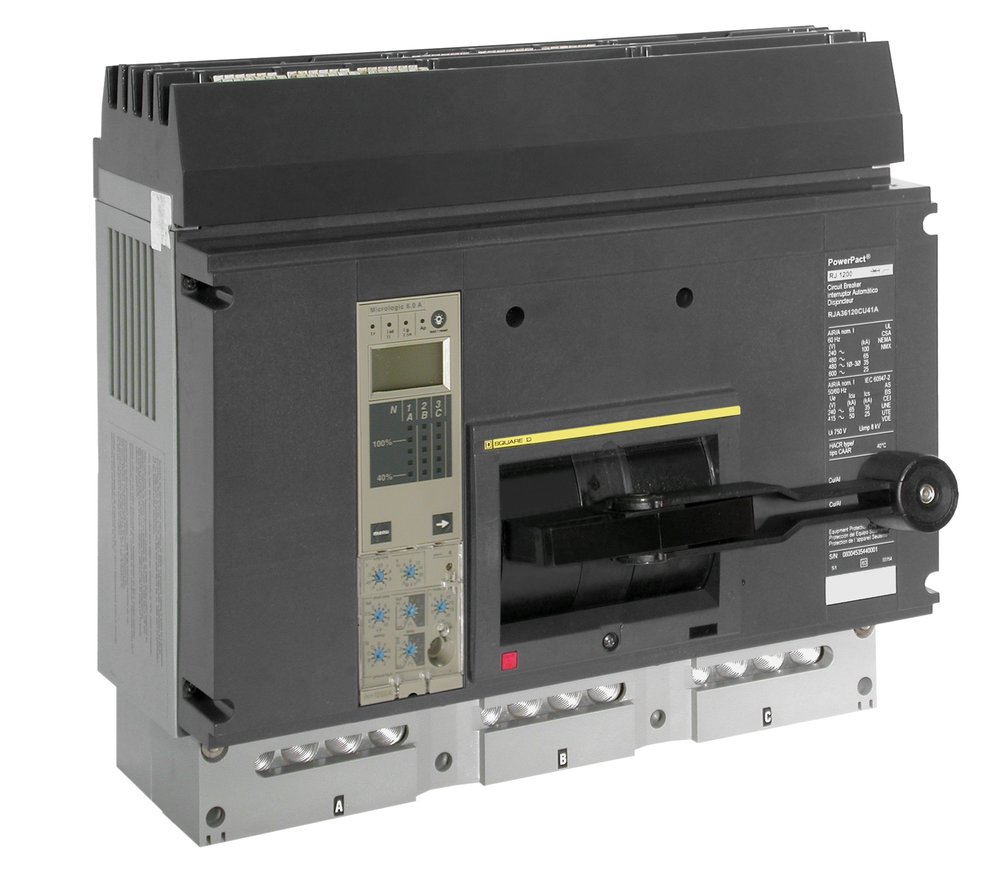

Square D™ I-Line™ PowerPact™ RGA36120CU44A 100% Rated Molded Case Circuit Breaker, 600 VAC, 1200 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ PowerPact™ RGA36120CU44A 100% Rated Molded Case Circuit Breaker, 600 VAC, 1200 A, 3 Poles
SKU842365
MFGR #RGA36120CU44A
Your Cost: $33,279.21/ea
List: Square D RGA36120CU44A MOLDED CASE CIRCUIT BREAKER 600V 1200A,1200 A,1200 A,3P,50/60 Hz,600 V AC,600 V AC 65 kA 240 V AC35 kA 480 V AC18 kA 600 V AC,I-Line Cicuit Breaker w/ Micrologic Trip Unit,I-Line connection linelugs load,PowerPact,R-Frame,UL Listed, CSA Certified,circuit breaker,electronic ammeter Micrologic 6.0 A LSIG
Square D RGA36120CU44A MOLDED CASE CIRCUIT BREAKER 600V 1200A,1200 A,1200 A,3P,50/60 Hz,600 V AC,600 V AC 65 kA 240 V AC35 kA 480 V AC18 kA 600 V AC,I-Line Cicuit Breaker w/ Micrologic Trip Unit,I-Line connection linelugs load,PowerPact,R-Frame,UL Listed, CSA Certified,circuit breaker,electronic ammeter Micrologic 6.0 A LSIG
Actuator Operating handle Alternate Catalog Number RGA36120CU44A Application DISTRIBUTION ARRA Compliant N Buy American Compliant N Catalog Number RGA36120CU44A Connection I-Line connection line;lugs load; 4 x AWG 3/0…600 kcmil aluminium/copper; 4 x AWG 3/0...500 kcmil copper Connection Type Line/Load Lug Country of Origin UKN Currency USD Depth 13.78 in Dimensions 13.38 in H x 14.96 in W x 13.78 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame R Frequency Rating 50/60 Hz Gross Weight Per Pack 52.0000 lb Gross Weight per Pack Metric 23.59 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 12.78 in Height [Metric] 32.7660 cm Item Group 01240 Length 19.32 in Length [Metric] 49.5300 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=436501&lang=en-us Mounting Type Plug-On Number Of Poles 3 Phase 3 pH Returnable Y Standards UL 489 File No. E10027CE CertifiedCSA C22.2 File No. 5-02 File No. LR7551NMX J-266IEC 60947-2Federal Specification W-C-375B Sub Brand PowerPact R Temperature Rating 104 °F Type 100% Rated UNSPSC 39121616 UPC 11 78590165780 UPC 12 785901657804 Warranty Description Contractual Warranty:18 months Width 19.42 in Width [Metric] 49.7840 cm Wire Size 3/0 AWG to 600 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1200 A Interrupt Rating 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Trip Type Electronic Ammeter Micrologic 6.0 A LSIG Voltage Rating 600 VAC Distribution I-LinE CICUIT BREAKER W/ MICROLOGIC TRIP UNIT True RMS sensing devices Provide means to manually disconnect power to the circuit Provide enhanced coordination by their adjustability Provide high interrupting ratings and withstand ratings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Operating handle |
| Alternate Catalog Number | RGA36120CU44A |
| Application | DISTRIBUTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | RGA36120CU44A |
| Connection | I-Line connection line;lugs load; 4 x AWG 3/0…600 kcmil aluminium/copper; 4 x AWG 3/0...500 kcmil copper |
| Connection Type | Line/Load Lug |
| Country of Origin | UKN |
| Currency | USD |
| Depth | 13.78 in |
| Dimensions | 13.38 in H x 14.96 in W x 13.78 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | R |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 52.0000 lb |
| Gross Weight per Pack Metric | 23.59 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 12.78 in |
| Height [Metric] | 32.7660 cm |
| Item Group | 01240 |
| Length | 19.32 in |
| Length [Metric] | 49.5300 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=436501&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standards | UL 489 File No. E10027CE CertifiedCSA C22.2 File No. 5-02 File No. LR7551NMX J-266IEC 60947-2Federal Specification W-C-375B |
| Sub Brand | PowerPact R |
| Temperature Rating | 104 °F |
| Type | 100% Rated |
| UNSPSC | 39121616 |
| UPC 11 | 78590165780 |
| UPC 12 | 785901657804 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.42 in |
| Width [Metric] | 49.7840 cm |
| Wire Size | 3/0 AWG to 600 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1200 A |
| Interrupt Rating | 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC |
| Trip Type | Electronic Ammeter Micrologic 6.0 A LSIG |
| Voltage Rating | 600 VAC |
| Distribution |
| I-LinE CICUIT BREAKER W/ MICROLOGIC TRIP UNIT |
| True RMS sensing devices |
| Provide means to manually disconnect power to the circuit |
| Provide enhanced coordination by their adjustability |
| Provide high interrupting ratings and withstand ratings |
