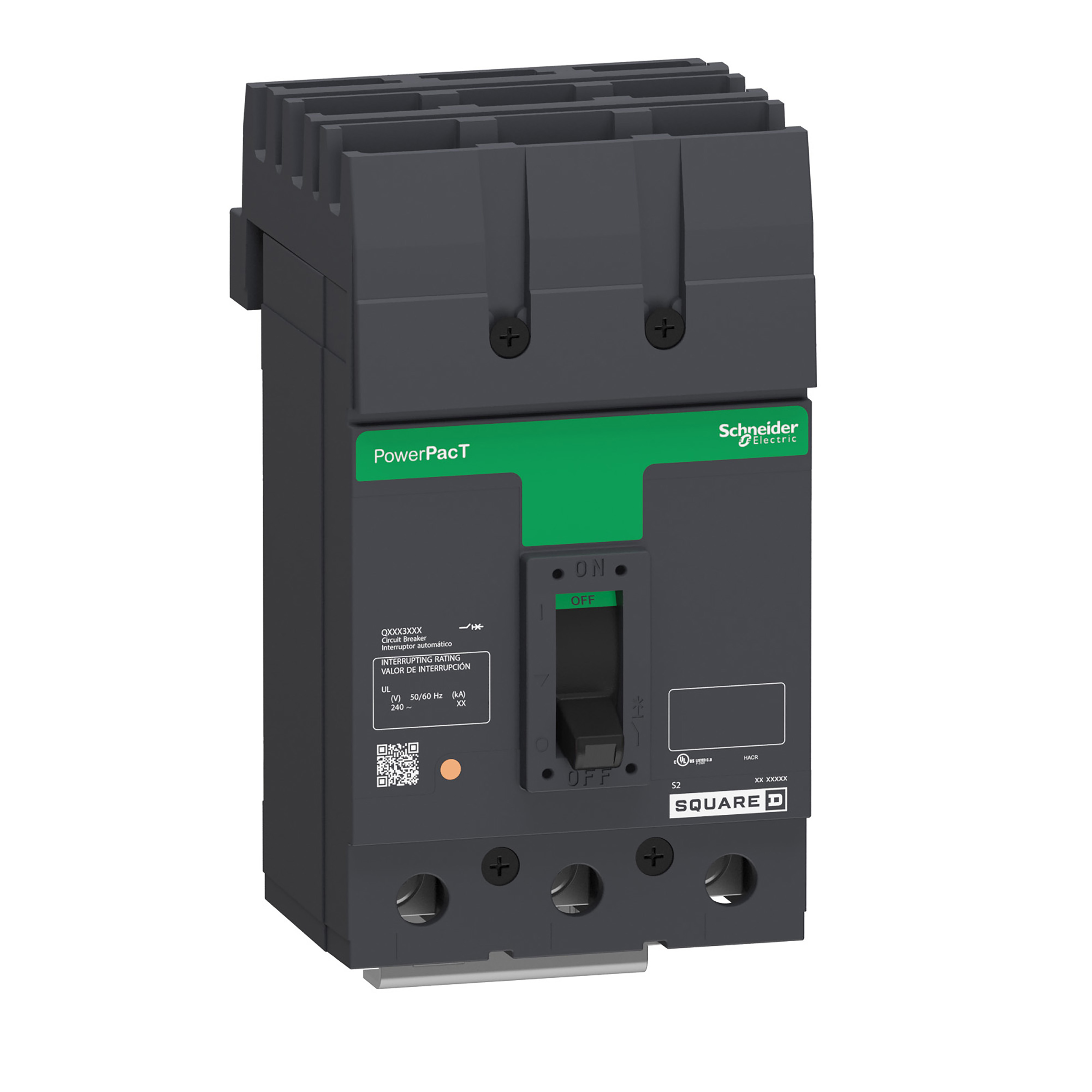

Square D™ I-Line™ PowerPact™ QGA32110 Type QG Molded Case Circuit Breaker, 240 VAC, 110 A, 65 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ PowerPact™ QGA32110 Type QG Molded Case Circuit Breaker, 240 VAC, 110 A, 65 kA Interrupt, 3 Poles
SKU926908
MFGR #QGA32110
$/ea
Square D QGA32110 MOLDED CASE CIRCUIT BREAKER 240V 110A,110 A,110 A,1200 A,2400 A,240 V AC,240 V AC,65 kA 240 V AC,3-Pole,G,I-Line Connection (ON end) - Lugs (OFF end) ABC,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in
Square D QGA32110 MOLDED CASE CIRCUIT BREAKER 240V 110A,110 A,110 A,1200 A,2400 A,240 V AC,240 V AC,65 kA 240 V AC,3-Pole,G,I-Line Connection (ON end) - Lugs (OFF end) ABC,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in
Actuator Type Toggle Alternate Catalog Number QGA32110 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number QGA32110 Connection LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-I-LINE CONNECTION LINE ABC Connection Type I/ON End Shroud Country of Origin MX Currency USD Dimensions 6.47 in H x 4.5 in W x 3.93 in D EU RoHS Indicator Y Frame Q Series Frequency Rating 50/60 Hz Gross Volume Per Pack 588.77 Gross Volume per Pack Metric 9648.21 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0304 lb Gross Weight per Pack Metric 3.03 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 15.4940 in Height [Metric] 15.5000 cm Item Group 01023 Length 32.2580 in Length [Metric] 31.8000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435873&lang=en-us Number Of Poles 3 Phase 3 pH Returnable Y Standard IEC-CSA-UL LISTED Sub Brand POWERPACT Substitute Product Catalog Number QBPA Temperature Rating 104 °F Trip Range 1200 to 2400 A Type Type QG UNSPSC 39121601 UPC 11 78590160354 UPC 12 785901603542 Warranty Description Contractual Warranty:18 months Width 19.3040 in Width [Metric] 19.6000 cm Wire Size 4 AWG to 300 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 110 A Interrupt Rating 65 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE Field installable handle padlock attachment available for locking in ON or OFF position and may be used with available mechanical interlocks
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | QGA32110 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QGA32110 |
| Connection | LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-I-LINE CONNECTION LINE ABC |
| Connection Type | I/ON End Shroud |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.47 in H x 4.5 in W x 3.93 in D |
| EU RoHS Indicator | Y |
| Frame | Q Series |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 588.77 |
| Gross Volume per Pack Metric | 9648.21 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0304 lb |
| Gross Weight per Pack Metric | 3.03 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 15.4940 in |
| Height [Metric] | 15.5000 cm |
| Item Group | 01023 |
| Length | 32.2580 in |
| Length [Metric] | 31.8000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435873&lang=en-us |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | IEC-CSA-UL LISTED |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | QBPA |
| Temperature Rating | 104 °F |
| Trip Range | 1200 to 2400 A |
| Type | Type QG |
| UNSPSC | 39121601 |
| UPC 11 | 78590160354 |
| UPC 12 | 785901603542 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.3040 in |
| Width [Metric] | 19.6000 cm |
| Wire Size | 4 AWG to 300 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 110 A |
| Interrupt Rating | 65 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE |
| Field installable handle padlock attachment available for locking in ON or OFF position and may be used with available mechanical interlocks |
