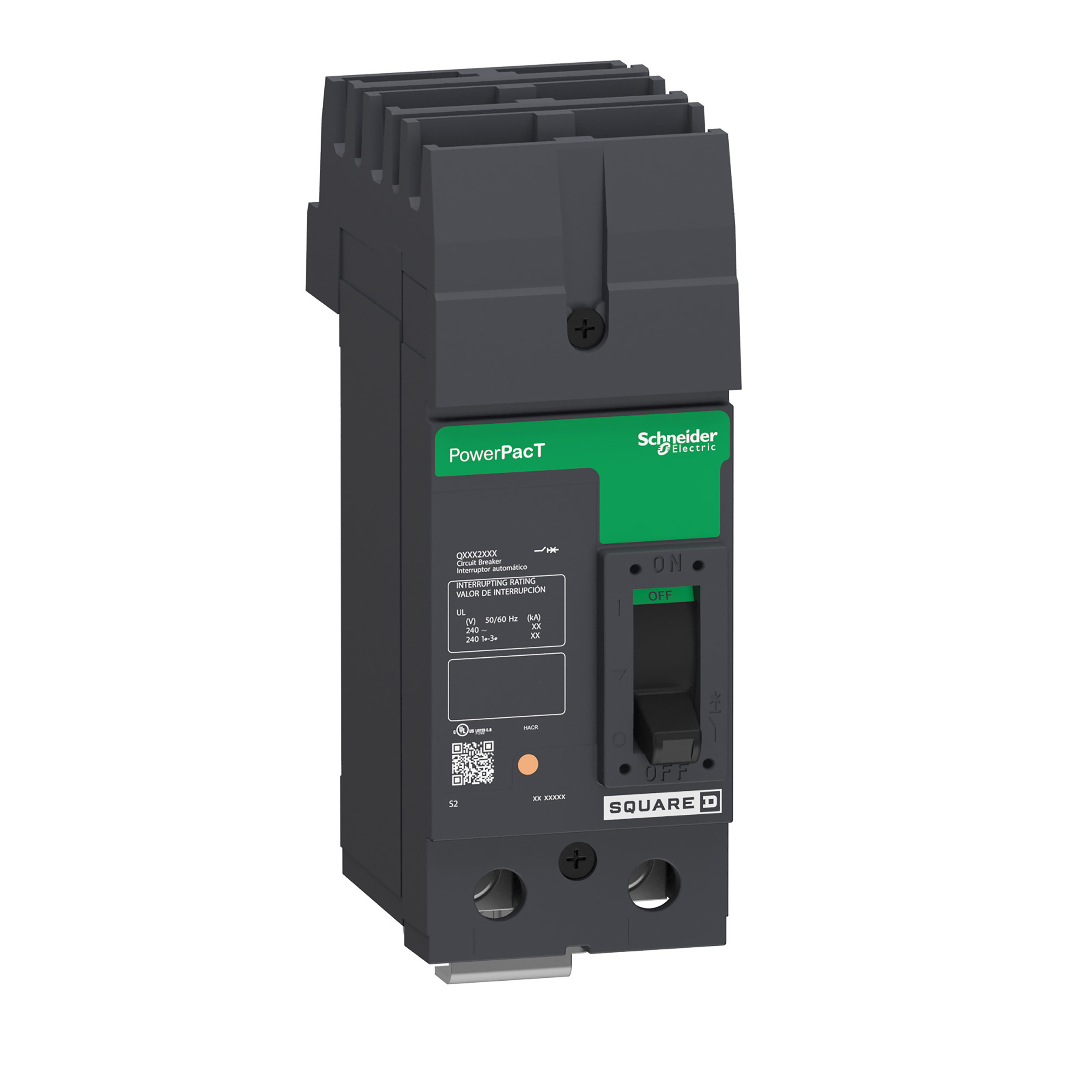

Square D™ I-Line™ PowerPact™ QGA221501 Type QG Molded Case Circuit Breaker, 240 VAC, 150 A, 65 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ PowerPact™ QGA221501 Type QG Molded Case Circuit Breaker, 240 VAC, 150 A, 65 kA Interrupt, 2 Poles
SKU836330
MFGR #QGA221501
$/ea
Square D QGA221501 MOLDED CASE CIRCUIT BREAKER 240V 150A,1200 A,150 A,2400 A,150 A,2-Pole,240 V AC,240 V AC,65 kA 240 V AC,G,I-Line Connection (ON end) - Lugs (OFF end) AB,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in
Square D QGA221501 MOLDED CASE CIRCUIT BREAKER 240V 150A,1200 A,150 A,2400 A,150 A,2-Pole,240 V AC,240 V AC,65 kA 240 V AC,G,I-Line Connection (ON end) - Lugs (OFF end) AB,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in
Actuator Operating handle Actuator Type Toggle Alternate Catalog Number QGA221501 Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number QGA221501 Connection I-LINE CONNECTION LINE AB-LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER Connection Type I/ON End Shroud Country of Origin MX Currency USD Depth 3.93 in Dimensions 6.47 in H x 3 in W x 3.93 in D EU RoHS Indicator Y Frame Q Series Frequency Rating 50/60 Hz Gross Volume Per Pack 455.68 Gross Volume per Pack Metric 7467.16 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0214 lb Gross Weight per Pack Metric 2.13 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 11.6840 in Height [Metric] 11.7000 cm Item Group 01023 Length 32.2580 in Length [Metric] 31.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435795&lang=en-us Number Of Poles 2 Phase 1 pH Returnable N Standard UL LISTED-IEC-CSA Sub Brand POWERPACT Substitute Product Catalog Number QBPA Temperature Rating 104 °F Trip Range 1200 to 2400 A Type Type QG UNSPSC 39121616 UPC 11 78590157157 UPC 12 785901571575 Warranty Description Contractual Warranty:18 months Width 19.8120 in Width [Metric] 19.6000 cm Wire Size 4 AWG to 300 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 150 A Interrupt Rating 65 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC Distribution I-LINE Field installable handle padlock attachment available for locking in ON or OFF position and may be used with available mechanical interlocks
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Operating handle |
| Actuator Type | Toggle |
| Alternate Catalog Number | QGA221501 |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QGA221501 |
| Connection | I-LINE CONNECTION LINE AB-LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER |
| Connection Type | I/ON End Shroud |
| Country of Origin | MX |
| Currency | USD |
| Depth | 3.93 in |
| Dimensions | 6.47 in H x 3 in W x 3.93 in D |
| EU RoHS Indicator | Y |
| Frame | Q Series |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 455.68 |
| Gross Volume per Pack Metric | 7467.16 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0214 lb |
| Gross Weight per Pack Metric | 2.13 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 11.6840 in |
| Height [Metric] | 11.7000 cm |
| Item Group | 01023 |
| Length | 32.2580 in |
| Length [Metric] | 31.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435795&lang=en-us |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | N |
| Standard | UL LISTED-IEC-CSA |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | QBPA |
| Temperature Rating | 104 °F |
| Trip Range | 1200 to 2400 A |
| Type | Type QG |
| UNSPSC | 39121616 |
| UPC 11 | 78590157157 |
| UPC 12 | 785901571575 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.8120 in |
| Width [Metric] | 19.6000 cm |
| Wire Size | 4 AWG to 300 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 150 A |
| Interrupt Rating | 65 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| Distribution |
| I-LINE |
| Field installable handle padlock attachment available for locking in ON or OFF position and may be used with available mechanical interlocks |
