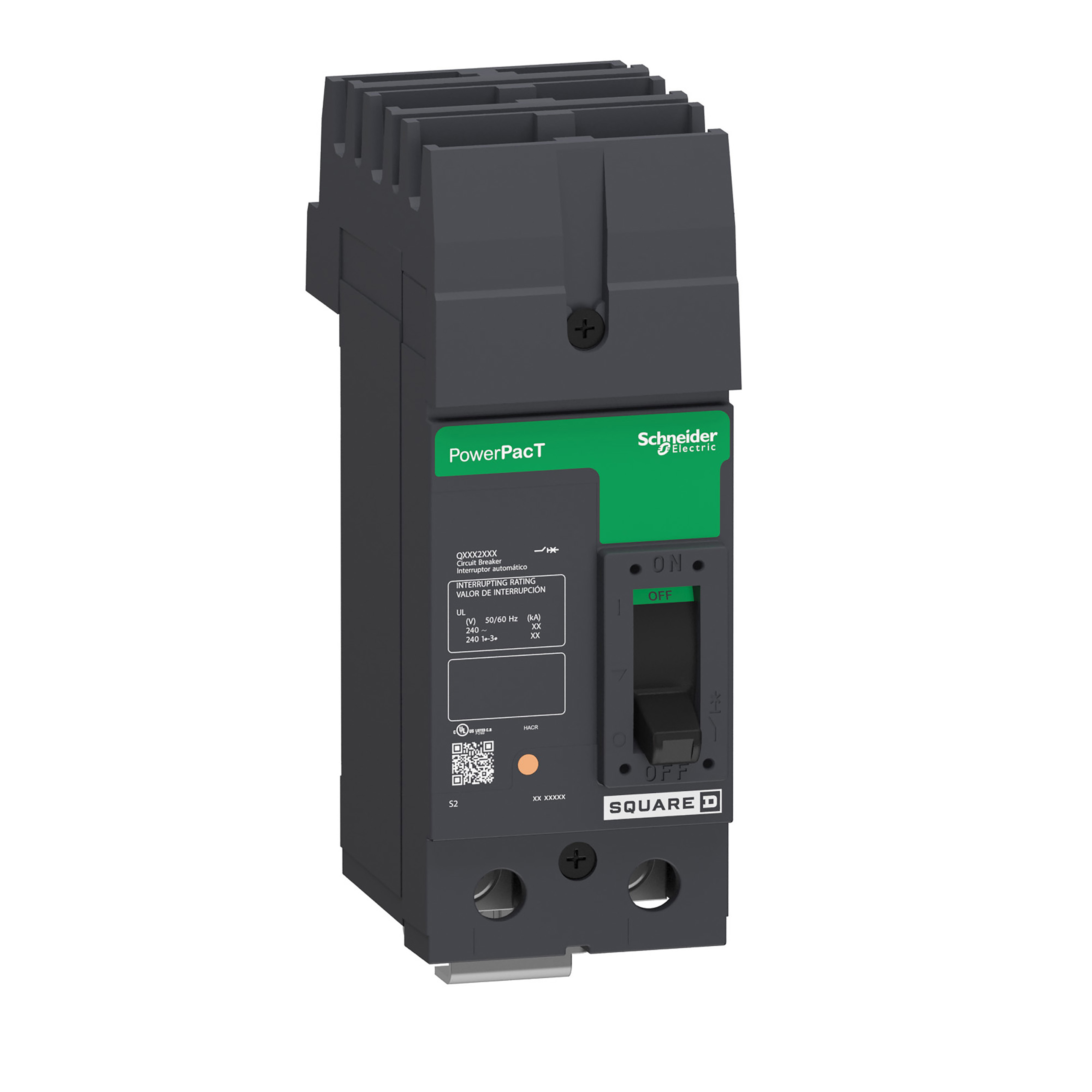

Square D™ I-Line™ PowerPact™ QGA221252 Type QG Molded Case Circuit Breaker, 240 VAC, 125 A, 65 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ PowerPact™ QGA221252 Type QG Molded Case Circuit Breaker, 240 VAC, 125 A, 65 kA Interrupt, 2 Poles
SKU450964
MFGR #QGA221252
$/ea
Square D QGA221252 MOLDED CASE CIRCUIT BREAKER 240V 125A,1200 A,125 A,2400 A,125 A,2-Pole,240 V AC,240 V AC,65 kA 240 V AC,G,I-Line Connection (ON end) - Lugs (OFF end) AC,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in
Square D QGA221252 MOLDED CASE CIRCUIT BREAKER 240V 125A,1200 A,125 A,2400 A,125 A,2-Pole,240 V AC,240 V AC,65 kA 240 V AC,G,I-Line Connection (ON end) - Lugs (OFF end) AC,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in
Actuator Type Toggle Alternate Catalog Number QGA221252 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number QGA221252 Connection LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-I-LINE CONNECTION LINE AC Connection Type I/ON End Shroud Country of Origin US Currency USD Dimensions 6.47 in H x 3 in W x 3.93 in D EU RoHS Indicator Y Frame Q Series Frequency Rating 50/60 Hz Gross Volume Per Pack 458.25 Gross Volume per Pack Metric 7509.34 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0218 lb Gross Weight per Pack Metric 2.12 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 11.9380 in Height [Metric] 11.9380 cm Item Group 01023 Length 31.7500 in Length [Metric] 31.7500 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435781&lang=en-us Number Of Poles 2 Phase 1 pH Returnable Y Standard UL LISTED-IEC-CSA Sub Brand POWERPACT Substitute Product Catalog Number QBPA Temperature Rating 104 °F Trip Range 1200 to 2400 A Type Type QG UNSPSC 39121601 UPC 11 78590163198 UPC 12 785901631989 Warranty Description Contractual Warranty:18 months Width 19.8120 in Width [Metric] 19.8120 cm Wire Size 4 AWG to 300 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Interrupt Rating 65 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE Field installable handle padlock attachment available for locking in ON or OFF position and may be used with available mechanical interlocks
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | QGA221252 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QGA221252 |
| Connection | LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-I-LINE CONNECTION LINE AC |
| Connection Type | I/ON End Shroud |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.47 in H x 3 in W x 3.93 in D |
| EU RoHS Indicator | Y |
| Frame | Q Series |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 458.25 |
| Gross Volume per Pack Metric | 7509.34 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0218 lb |
| Gross Weight per Pack Metric | 2.12 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 11.9380 in |
| Height [Metric] | 11.9380 cm |
| Item Group | 01023 |
| Length | 31.7500 in |
| Length [Metric] | 31.7500 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435781&lang=en-us |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL LISTED-IEC-CSA |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | QBPA |
| Temperature Rating | 104 °F |
| Trip Range | 1200 to 2400 A |
| Type | Type QG |
| UNSPSC | 39121601 |
| UPC 11 | 78590163198 |
| UPC 12 | 785901631989 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.8120 in |
| Width [Metric] | 19.8120 cm |
| Wire Size | 4 AWG to 300 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Interrupt Rating | 65 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE |
| Field installable handle padlock attachment available for locking in ON or OFF position and may be used with available mechanical interlocks |
