Square D™

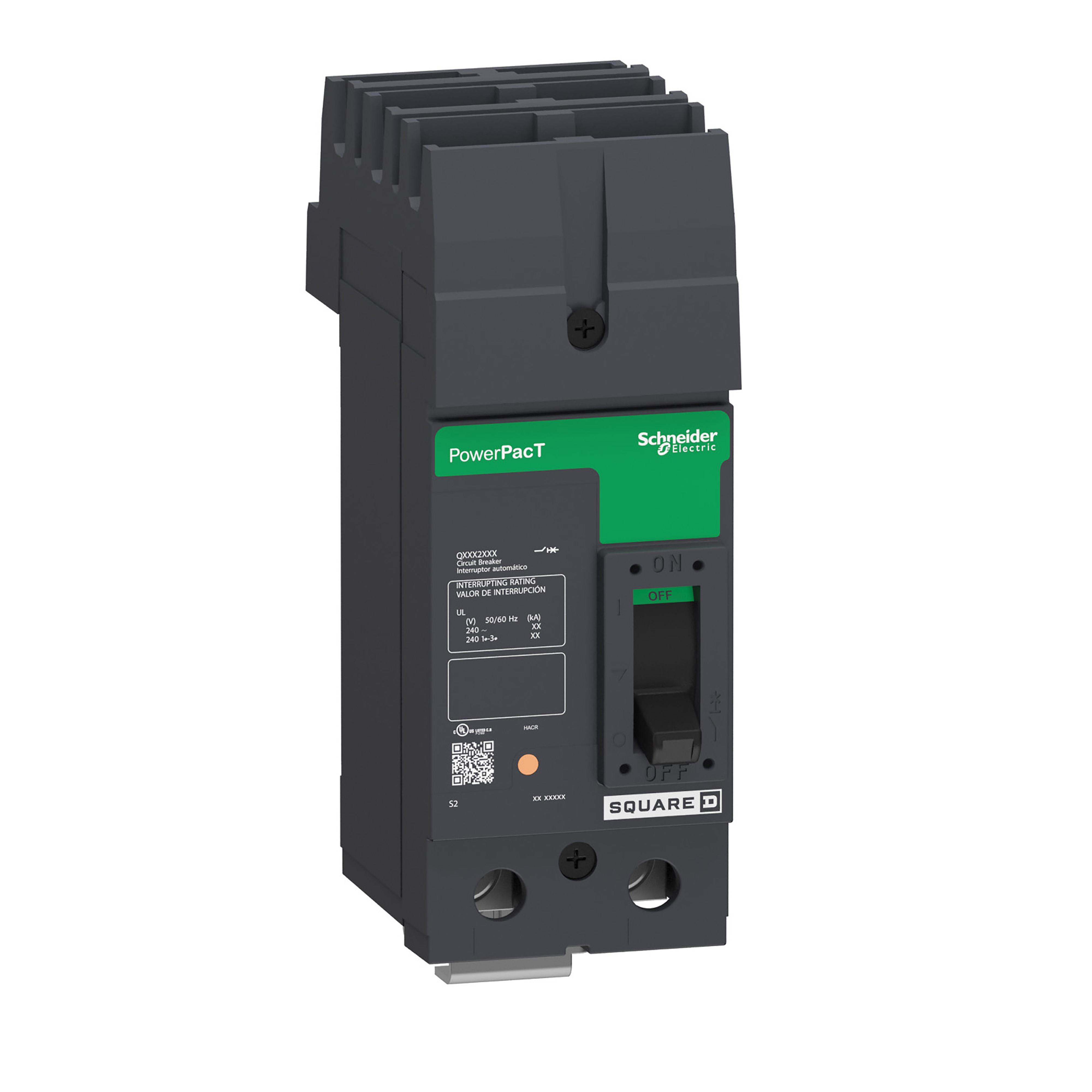

Square D™ I-Line™ PowerPact™ QBA221251 Type QB Molded Case Circuit Breaker, 240 VAC, 125 A, 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ I-Line™ PowerPact™ QBA221251 Type QB Molded Case Circuit Breaker, 240 VAC, 125 A, 10 kA Interrupt, 2 Poles
SKU206248
MFGR #QBA221251
Your Cost: $382.41/ea
List: Square D QBA221251 MOLDED CASE CIRCUIT BREAKER 240V 125A,10 kA 240 V AC,240 V AC,1200 A,125 A,2400 A,125 A,2-Pole,240 V AC,B,I-Line Connection (ON end) - Lugs (OFF end) AB,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in
Square D QBA221251 MOLDED CASE CIRCUIT BREAKER 240V 125A,10 kA 240 V AC,240 V AC,1200 A,125 A,2400 A,125 A,2-Pole,240 V AC,B,I-Line Connection (ON end) - Lugs (OFF end) AB,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in
Actuator Type Toggle Alternate Catalog Number QBA221251 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number QBA221251 Connection I-LINE CONNECTION LINE AB-LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER Connection Type I/ON End Shroud Country of Origin US Currency USD Dimensions 6.47 in H x 3 in W x 3.93 in D Enclosure Type NEMA AB1-1999 EU RoHS Indicator Y Frame Q Series Frequency Rating 50/60 Hz Gross Volume Per Pack 429.00 Gross Volume per Pack Metric 7030.02 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.7800 lb Gross Weight per Pack Metric 2.17 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 11.1760 in Height [Metric] 11.4000 cm Item Group 01023 Length 31.7500 in Length [Metric] 31.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434631&lang=en-us Number Of Poles 2 Phase 1 pH Returnable Y Standard CSA-IEC-UL LISTED Sub Brand POWERPACT Substitute Product Catalog Number QBPA Temperature Rating 104 °F Trip Range 1200 to 2400 A Type Type QB UNSPSC 39121601 UPC 11 78590140380 UPC 12 785901403807 Warranty Description Contractual Warranty:18 months Width 19.8120 in Width [Metric] 19.8000 cm Wire Size 4 AWG to 300 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE AB-phase connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | QBA221251 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QBA221251 |
| Connection | I-LINE CONNECTION LINE AB-LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER |
| Connection Type | I/ON End Shroud |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.47 in H x 3 in W x 3.93 in D |
| Enclosure Type | NEMA AB1-1999 |
| EU RoHS Indicator | Y |
| Frame | Q Series |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 429.00 |
| Gross Volume per Pack Metric | 7030.02 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.7800 lb |
| Gross Weight per Pack Metric | 2.17 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 11.1760 in |
| Height [Metric] | 11.4000 cm |
| Item Group | 01023 |
| Length | 31.7500 in |
| Length [Metric] | 31.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434631&lang=en-us |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | CSA-IEC-UL LISTED |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | QBPA |
| Temperature Rating | 104 °F |
| Trip Range | 1200 to 2400 A |
| Type | Type QB |
| UNSPSC | 39121601 |
| UPC 11 | 78590140380 |
| UPC 12 | 785901403807 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.8120 in |
| Width [Metric] | 19.8000 cm |
| Wire Size | 4 AWG to 300 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE |
| AB-phase connection |
