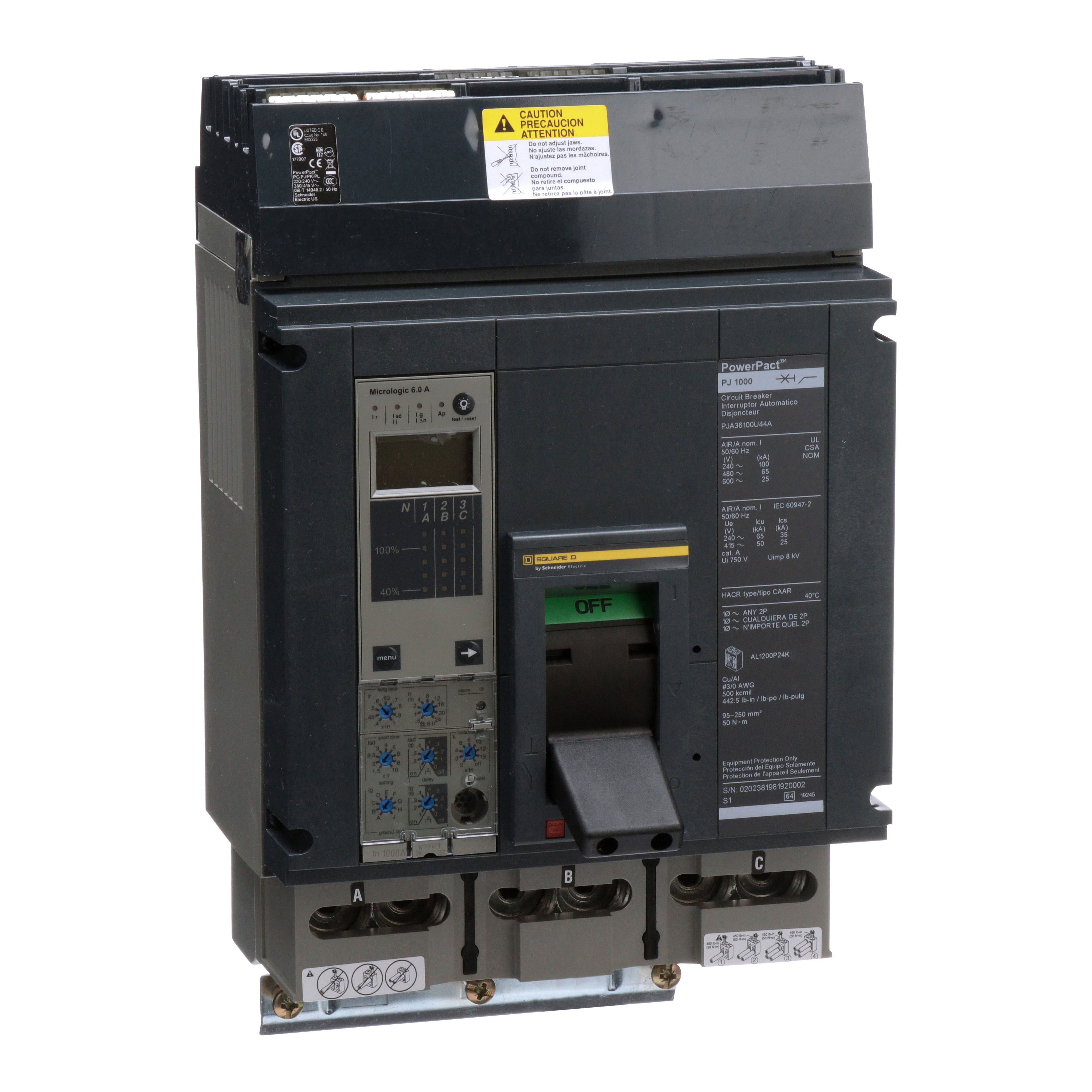

Square D™ I-Line™ PowerPact™ PJA36100U44A Type PJA Molded Case Circuit Breaker, 600 VAC, 1000 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ PowerPact™ PJA36100U44A Type PJA Molded Case Circuit Breaker, 600 VAC, 1000 A, 3 Poles
SKU775340
MFGR #PJA36100U44A
Your Cost: $22,728.69/ea
List: Square D PJA36100U44A MOLDED CASE CIRCUIT BREAKER 600V 1000A,100-1200A,1000A,100kA240Vac - 65kA480Vac - 25kA600Vac,16.20 in.,3-Phase,3P,40deg Celsius,50/60Hz,600 Vac,8.10 in.,8.30 in.,Ambient environment,Electronic,Electronic Trip Circuit Breaker,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Micrologic Ammeter Trip Unit (6.0A) LSIG,P-Frame,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,Various
Square D PJA36100U44A MOLDED CASE CIRCUIT BREAKER 600V 1000A,100-1200A,1000A,100kA240Vac - 65kA480Vac - 25kA600Vac,16.20 in.,3-Phase,3P,40deg Celsius,50/60Hz,600 Vac,8.10 in.,8.30 in.,Ambient environment,Electronic,Electronic Trip Circuit Breaker,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,Micrologic Ammeter Trip Unit (6.0A) LSIG,P-Frame,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,Various
Actuator ELECTRONIC Actuator Type Electronic Alternate Catalog Number PJA36100U44A Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number PJA36100U44A Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Connection Type Line/Load Lug/Plug-On Country of Origin MX Currency USD Dimensions 8.1 in L x 8.3 in W x 16.2 in H Enclosure Type NEMA AB1 Environmental Conditions AMBIENT ENVIRONMENT EU RoHS Indicator Y Frame P Frequency Rating 50/60 Hz Gross Volume Per Pack 3001.20 Gross Volume per Pack Metric 49180.66 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 38.0100 lb Gross Weight per Pack Metric 17.24 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 26.6700 in Height [Metric] 26.6700 cm Item Group 01210 Length 52.0700 in Length [Metric] 52.0700 cm Material Various Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432291&lang=en-us Mounting Type Busbar Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED Sub Brand POWERPACT Temperature Rating 104 °F Trip Range 100 to 1200 A Type Type PJA UNSPSC 39131702 UPC 11 78590128223 UPC 12 785901282235 Warranty Description Contractual Warranty:18 months Width 30.4800 in Width [Metric] 30.4800 cm Wire Size 3/0 AWG to 500 kcmil Al, 4 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1000 A Interrupt Rating 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Trip Type Electronic Ammeter Micrologic 6.0 A LSIG Voltage Rating 600 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE PLUG-ON Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPact™ and P-frame circuit breakers Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | ELECTRONIC |
| Actuator Type | Electronic |
| Alternate Catalog Number | PJA36100U44A |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PJA36100U44A |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Connection Type | Line/Load Lug/Plug-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 8.1 in L x 8.3 in W x 16.2 in H |
| Enclosure Type | NEMA AB1 |
| Environmental Conditions | AMBIENT ENVIRONMENT |
| EU RoHS Indicator | Y |
| Frame | P |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3001.20 |
| Gross Volume per Pack Metric | 49180.66 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 38.0100 lb |
| Gross Weight per Pack Metric | 17.24 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 26.6700 in |
| Height [Metric] | 26.6700 cm |
| Item Group | 01210 |
| Length | 52.0700 in |
| Length [Metric] | 52.0700 cm |
| Material | Various |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432291&lang=en-us |
| Mounting Type | Busbar |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED |
| Sub Brand | POWERPACT |
| Temperature Rating | 104 °F |
| Trip Range | 100 to 1200 A |
| Type | Type PJA |
| UNSPSC | 39131702 |
| UPC 11 | 78590128223 |
| UPC 12 | 785901282235 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.4800 in |
| Width [Metric] | 30.4800 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al, 4 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1000 A |
| Interrupt Rating | 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC |
| Trip Type | Electronic Ammeter Micrologic 6.0 A LSIG |
| Voltage Rating | 600 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPact™ and P-frame circuit breakers |
| Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes |
| A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility |
| Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications |
