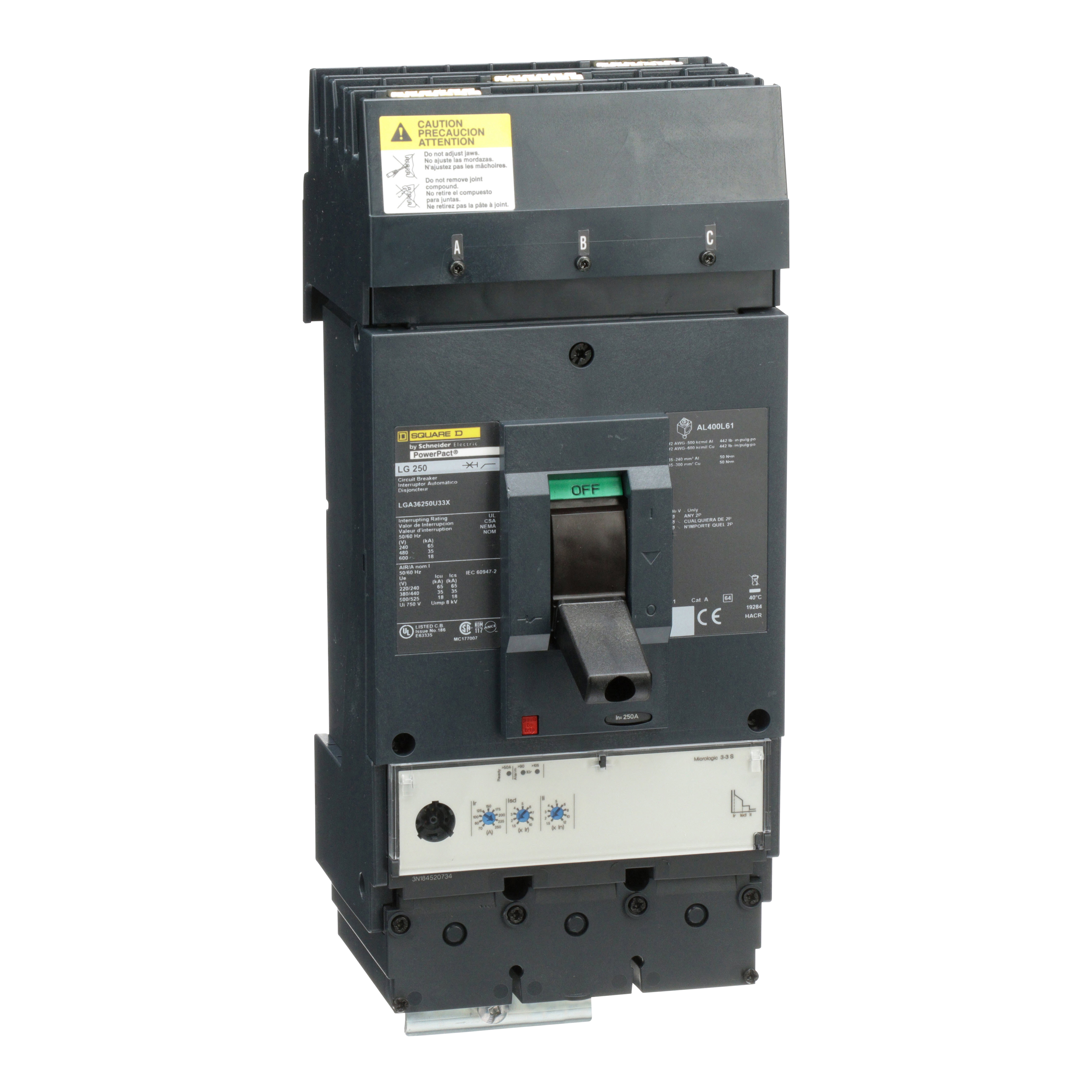

Square D™ I-Line™ PowerPact™ LGA36250U33X Standard Molded Case Circuit Breaker, 600 VAC, 250 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ PowerPact™ LGA36250U33X Standard Molded Case Circuit Breaker, 600 VAC, 250 A, 3 Poles
SKUPDW~6916896
MFGR #LGA36250U33X
Price Not Available
The PowerPact™ L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. L-frame circuit breakers are available with Micrologic electronic trip units only.
The PowerPact™ L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. L-frame circuit breakers are available with Micrologic electronic trip units only.
Actuator Toggle Actuator Type Toggle Alternate Catalog Number LGA36250U33X Application Distribution ARRA Compliant N Buy American Compliant N Catalog Number LGA36250U33X Connection AWG 2...500 KCMIL ALUMINIUM)1 -AWG 2...600 KCMIL COPPER)1,I-LINE CONNECTION LINE-LUGS LOAD Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 14.7 in H x 5.94 in W x 6.61 in D EU RoHS Indicator Y Frame L Frame Frequency Rating 50/60 Hz Gross Weight Per Pack 0.0771 lb Gross Weight per Pack Metric 7.71 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 22.2250 in Height [Metric] 22.2250 cm Item Group 01118 Length 49.5300 in Length [Metric] 49.5300 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980570&lang=en-us Number Of Poles 3 Returnable Y Standard NMX-CE-CCC-UL LISTED-CSA Sub Brand L-Frame;PowerPact L Substitute Product Catalog Number S29450 Temperature Rating 122 °F Trip Range 250 A Type Standard UNSPSC 39121616 UPC 11 78590170262 UPC 12 785901702627 Warranty Description Contractual Warranty:18 months Width 27.3050 in Width [Metric] 27.3050 cm Wire Size 2 AWG to 500 kcmil Al/2 AWG to 600 kcmil Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Trip Type Electronic Micrologic LSI Voltage Rating 600 VAC Distribution I-LINE Rated current from 70 to 250 A Breaking capacity from 18 to 65 kA at 480 VAC Common accessories and auxiliaries with other PowerPact™ frames 2 AWG to 500 kcmil Al, 2 AWG to 600 kcmil Cu wire 600 VAC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating Equipped with a unique terminal design that makes converting between busbar and lug options easy Easy to install, extremely versatile, a wide variety of terminal options
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Toggle |
| Actuator Type | Toggle |
| Alternate Catalog Number | LGA36250U33X |
| Application | Distribution |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LGA36250U33X |
| Connection | AWG 2...500 KCMIL ALUMINIUM)1 -AWG 2...600 KCMIL COPPER)1,I-LINE CONNECTION LINE-LUGS LOAD |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 14.7 in H x 5.94 in W x 6.61 in D |
| EU RoHS Indicator | Y |
| Frame | L Frame |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.0771 lb |
| Gross Weight per Pack Metric | 7.71 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 22.2250 in |
| Height [Metric] | 22.2250 cm |
| Item Group | 01118 |
| Length | 49.5300 in |
| Length [Metric] | 49.5300 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980570&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | NMX-CE-CCC-UL LISTED-CSA |
| Sub Brand | L-Frame;PowerPact L |
| Substitute Product Catalog Number | S29450 |
| Temperature Rating | 122 °F |
| Trip Range | 250 A |
| Type | Standard |
| UNSPSC | 39121616 |
| UPC 11 | 78590170262 |
| UPC 12 | 785901702627 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 27.3050 in |
| Width [Metric] | 27.3050 cm |
| Wire Size | 2 AWG to 500 kcmil Al/2 AWG to 600 kcmil Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC |
| Trip Type | Electronic Micrologic LSI |
| Voltage Rating | 600 VAC |
| Distribution |
| I-LINE |
| Rated current from 70 to 250 A |
| Breaking capacity from 18 to 65 kA at 480 VAC |
| Common accessories and auxiliaries with other PowerPact™ frames |
| 2 AWG to 500 kcmil Al, 2 AWG to 600 kcmil Cu wire |
| 600 VAC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating |
| Equipped with a unique terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal options |
