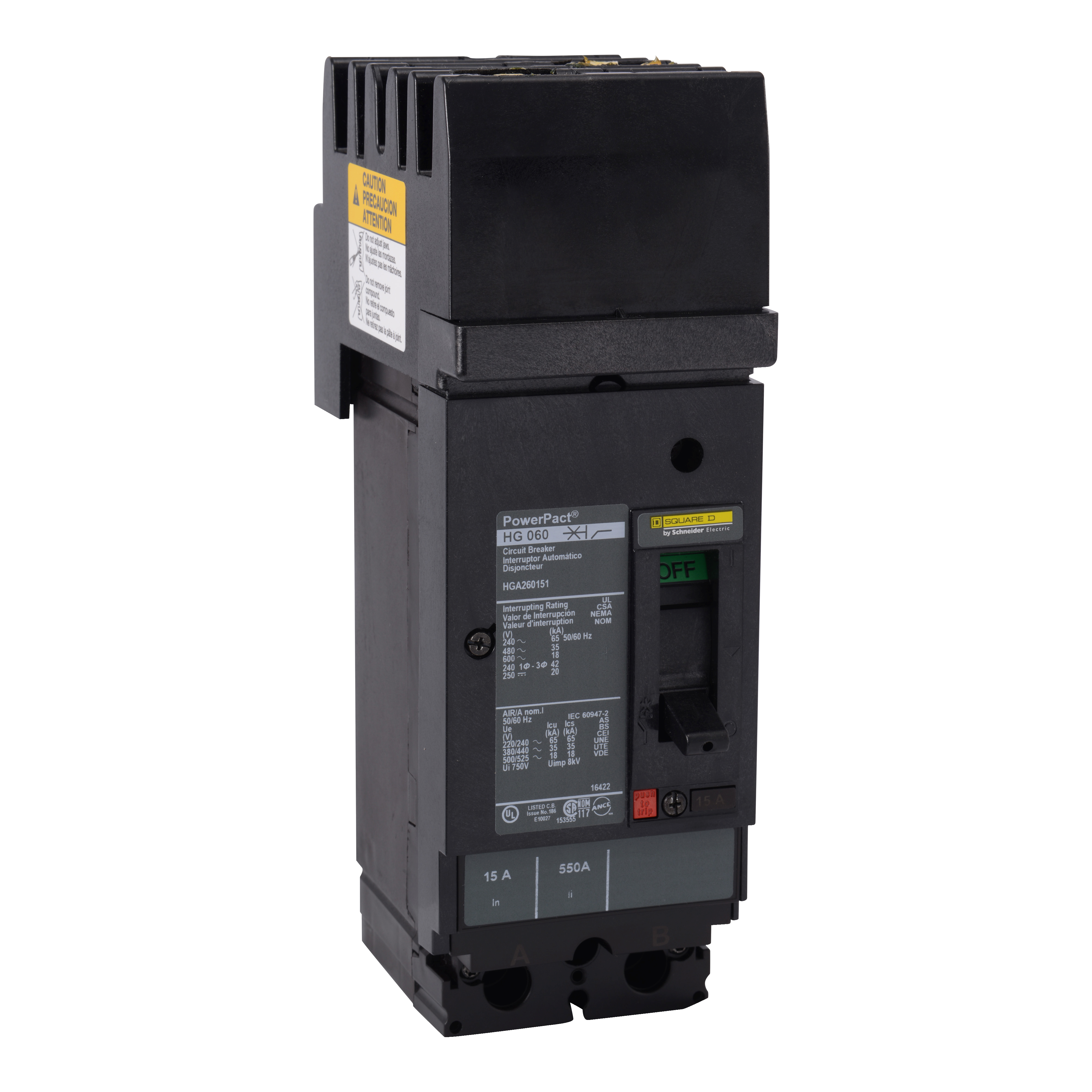

Square D™ I-Line™ PowerPact™ HGA261006 Molded Case Circuit Breaker, 600 VAC, 100 A, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ I-Line™ PowerPact™ HGA261006 Molded Case Circuit Breaker, 600 VAC, 100 A, 2 Poles, Thermal Magnetic Trip
SKUPDW~9365910
MFGR #HGA261006
Price Not Available
The PowerPact™ H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic™ electronic trip units only. H and J-frame circuit breakers with thermal-magnetic trip units contain individual thermal (overload) and instantaneous (short circuit) sensing elements in each pole. The amperage ratings of the thermal trip elements are calibrated at 104 deg F free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code®, standard circuit breakers may only be applied continuously at up to 80% of their rating. Circuit breakers rated for 100% operation are available but require specially-designed enclosures and 194 deg F rated wire.
The PowerPact™ H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic™ electronic trip units only. H and J-frame circuit breakers with thermal-magnetic trip units contain individual thermal (overload) and instantaneous (short circuit) sensing elements in each pole. The amperage ratings of the thermal trip elements are calibrated at 104 deg F free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code®, standard circuit breakers may only be applied continuously at up to 80% of their rating. Circuit breakers rated for 100% operation are available but require specially-designed enclosures and 194 deg F rated wire.
Alternate Catalog Number HGA261006 ARRA Compliant N Buy American Compliant N Catalog Number HGA261006 Connection AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 6.4 in H x 2.74 in W x 4.36 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Weight Per Pack 0.0136 lb Gross Weight per Pack Metric 1.36 Gross Weight UOM Metric kg Height 9.8430 in Height [Metric] 9.8430 cm Item Group 01117 Length 37.1480 in Length [Metric] 37.1480 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422353&lang=en-us Mounting Type Surface Number Of Poles 2 Operating Temperature 40 °C Phase 1 pH Returnable N Standard CSA-UL LISTED-CE-IEC Temperature Rating 104 °F Trip Range 900 to 1700 A Type Type HGA UNSPSC 39121601 UPC 11 78590155960 UPC 12 785901559603 Warranty Description Contractual Warranty:18 months Width 20.6380 in Width [Metric] 20.6380 cm Wire Size 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 to 500 VDC I-LINE Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency CB-phase 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, 20 kA at 500 VDC, 20 kA at 250 VDC interrupt rating
