Square D™

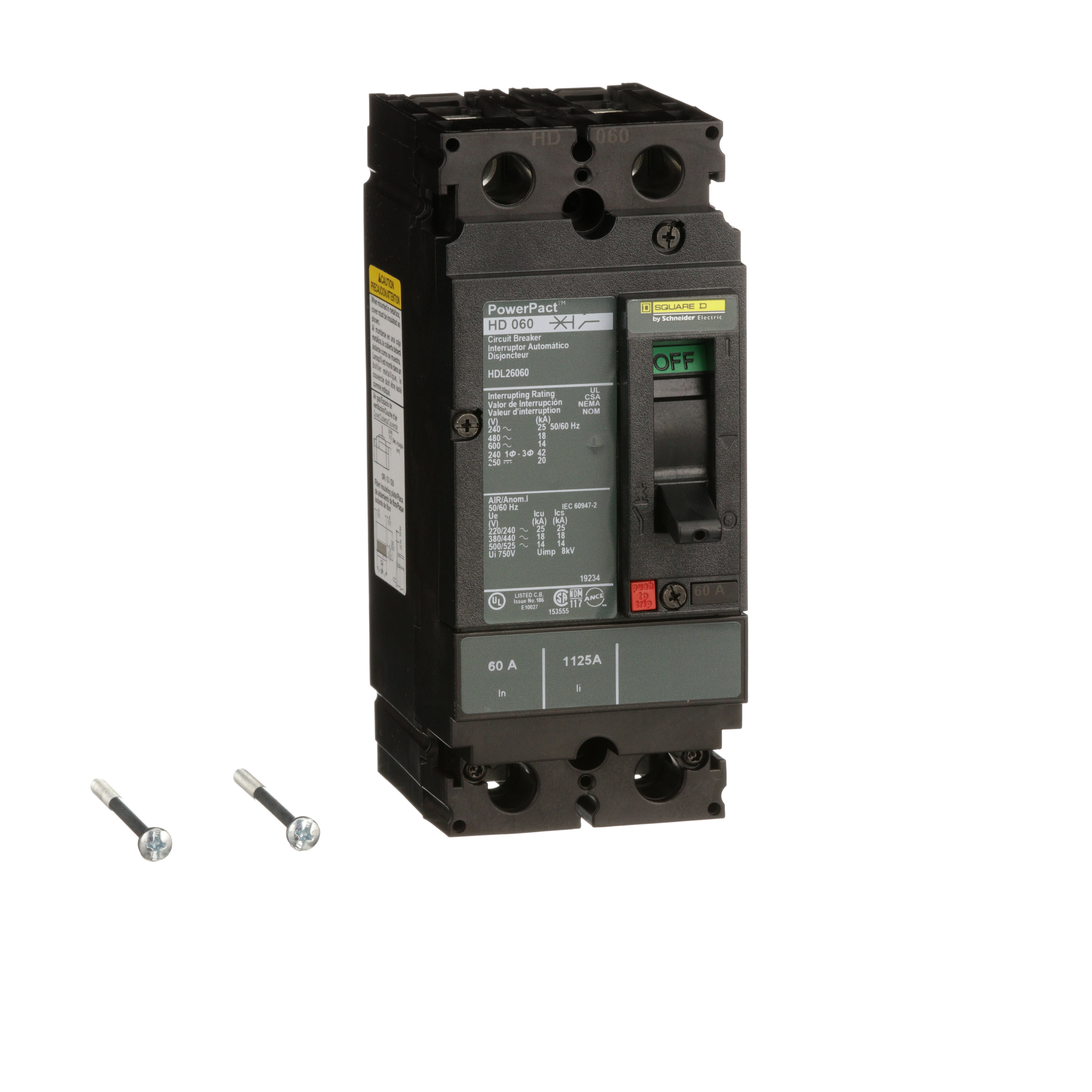

Square D™ I-Line™ PowerPact™ HDL26060 Molded Case Circuit Breaker, 600 VAC, 60 A, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ I-Line™ PowerPact™ HDL26060 Molded Case Circuit Breaker, 600 VAC, 60 A, 2 Poles, Thermal Magnetic Trip
SKU348649
MFGR #HDL26060
Your Cost: $754.41/ea
List: Square D HDL26060 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 60A,-13F and 158F (-25 C and +70 C),163 mm,2,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,50/60Hz,600 Vac/250 Vdc,60A,70 mm,86 mm,H-Frame,Hold 800A - Trip 1450A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Square D HDL26060 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 600V 60A,-13F and 158F (-25 C and +70 C),163 mm,2,25kA240VAC - 18kA480VAC - 14kA600VAC - 20kA250VDC,50/60Hz,600 Vac/250 Vdc,60A,70 mm,86 mm,H-Frame,Hold 800A - Trip 1450A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated - CCC,Unit Mount
Alternate Catalog Number HDL26060 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HDL26060 Connection LINE: LUG - LOAD: LUG Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 6.4 in H x 2.74 in W x 4.36 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 387.15 Gross Volume per Pack Metric 6344.23 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.0000 lb Gross Weight per Pack Metric 1.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.7000 in Height [Metric] 13.7000 cm Item Group 01110 Length 21.6000 in Length [Metric] 21.6000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421571&lang=en-us Mounting Type Surface Number Of Poles 2 Operating Temperature -13 to 158F (-25 to 70C) °C Phase 1 pH Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED - CCC Sub Brand POWERPACT Substitute Product Catalog Number S29371 Temperature Rating 104 °F Trip Range 800 to 1450 A Type MOLDED CASE CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590157787 UPC 12 785901577874 Warranty Description Contractual Warranty:18 months Width 18.8000 in Width [Metric] 18.8000 cm Wire Size 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 60 A Interrupt Rating 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250 VDC Trip Type Thermal Magnetic Voltage Rating 600 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION UNIT MOUNT Easy to install, extremely versatile, a wide variety of terminal Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Alternate Catalog Number | HDL26060 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HDL26060 |
| Connection | LINE: LUG - LOAD: LUG |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.4 in H x 2.74 in W x 4.36 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 387.15 |
| Gross Volume per Pack Metric | 6344.23 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.0000 lb |
| Gross Weight per Pack Metric | 1.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.7000 in |
| Height [Metric] | 13.7000 cm |
| Item Group | 01110 |
| Length | 21.6000 in |
| Length [Metric] | 21.6000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421571&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 2 |
| Operating Temperature | -13 to 158F (-25 to 70C) °C |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED - CCC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29371 |
| Temperature Rating | 104 °F |
| Trip Range | 800 to 1450 A |
| Type | MOLDED CASE CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590157787 |
| UPC 12 | 785901577874 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 18.8000 in |
| Width [Metric] | 18.8000 cm |
| Wire Size | 14 to 3/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 60 A |
| Interrupt Rating | 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| UNIT MOUNT |
| Easy to install, extremely versatile, a wide variety of terminal |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
