Square D™

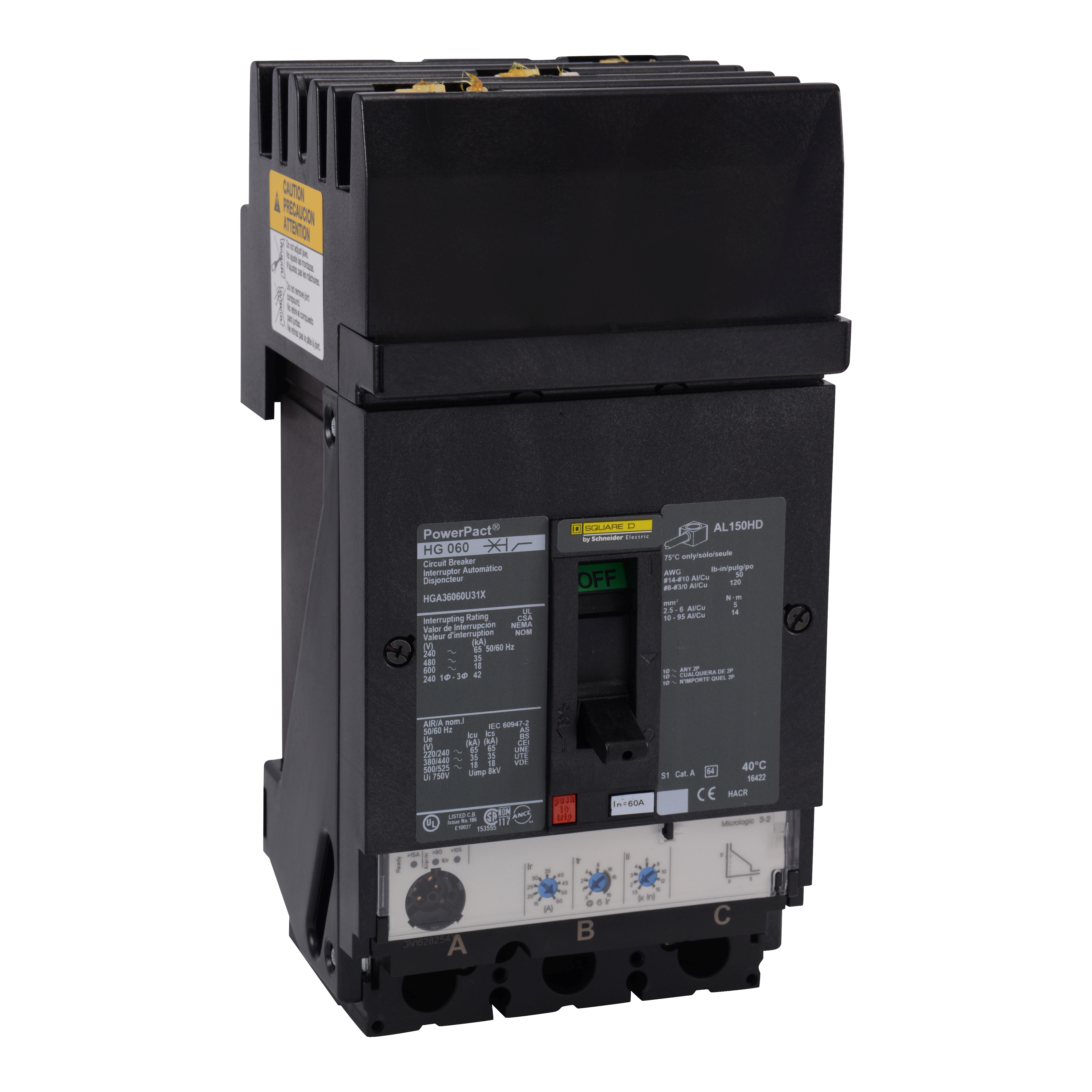

Square D™ I-Line™ PowerPact™ HDA36060U33X Molded Case Circuit Breaker, 600 VAC, 60 A, 3 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ I-Line™ PowerPact™ HDA36060U33X Molded Case Circuit Breaker, 600 VAC, 60 A, 3 Poles
SKUPDW~11083474
MFGR #HDA36060U33X
Your Cost: $923.52/ea
List: Schneider Electric HDA36060U33X MOLDED CASE CIRCUIT BREAKER 600V 60A,25 kA 240 V AC-14 kA 600 V AC-18 kA 480 V AC,600 V AC,60 A,60 A,600 V AC,D,circuit breaker,electronic standard Micrologic 3.2 S LSI,plug-in
Schneider Electric HDA36060U33X MOLDED CASE CIRCUIT BREAKER 600V 60A,25 kA 240 V AC-14 kA 600 V AC-18 kA 480 V AC,600 V AC,60 A,60 A,600 V AC,D,circuit breaker,electronic standard Micrologic 3.2 S LSI,plug-in
Alternate Catalog Number HDA36060U33X ARRA Compliant N Buy American Compliant N Catalog Number HDA36060U33X Connection AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Weight Per Pack 0.0363 lb Gross Weight per Pack Metric 3.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.6530 in Height [Metric] 13.6530 cm Item Group 01103 Length 37.1480 in Length [Metric] 37.1480 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980070&lang=en-us Mounting Type Surface Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard CCC-CE-CSA-UL LISTED-IEC Temperature Rating 104 °F Trip Range 800 to 1450 A Type Type HDA UNSPSC 39121601 UPC 11 78590167430 UPC 12 785901674306 Width 20.6380 in Width [Metric] 20.6380 cm Wire Size 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 60 A Interrupt Rating 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250 VDC Trip Type Electronic LSI/Thermal Magnetic Voltage Rating 600 VAC I-LINE Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency 18 kA at 480 VAC, 25 kA at 240 VAC, 14 kA at 600 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | HDA36060U33X |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HDA36060U33X |
| Connection | AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.0363 lb |
| Gross Weight per Pack Metric | 3.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.6530 in |
| Height [Metric] | 13.6530 cm |
| Item Group | 01103 |
| Length | 37.1480 in |
| Length [Metric] | 37.1480 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980070&lang=en-us |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | CCC-CE-CSA-UL LISTED-IEC |
| Temperature Rating | 104 °F |
| Trip Range | 800 to 1450 A |
| Type | Type HDA |
| UNSPSC | 39121601 |
| UPC 11 | 78590167430 |
| UPC 12 | 785901674306 |
| Width | 20.6380 in |
| Width [Metric] | 20.6380 cm |
| Wire Size | 14 to 3/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 60 A |
| Interrupt Rating | 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250 VDC |
| Trip Type | Electronic LSI/Thermal Magnetic |
| Voltage Rating | 600 VAC |
| I-LINE |
| Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
| 18 kA at 480 VAC, 25 kA at 240 VAC, 14 kA at 600 VAC interrupt rating |
