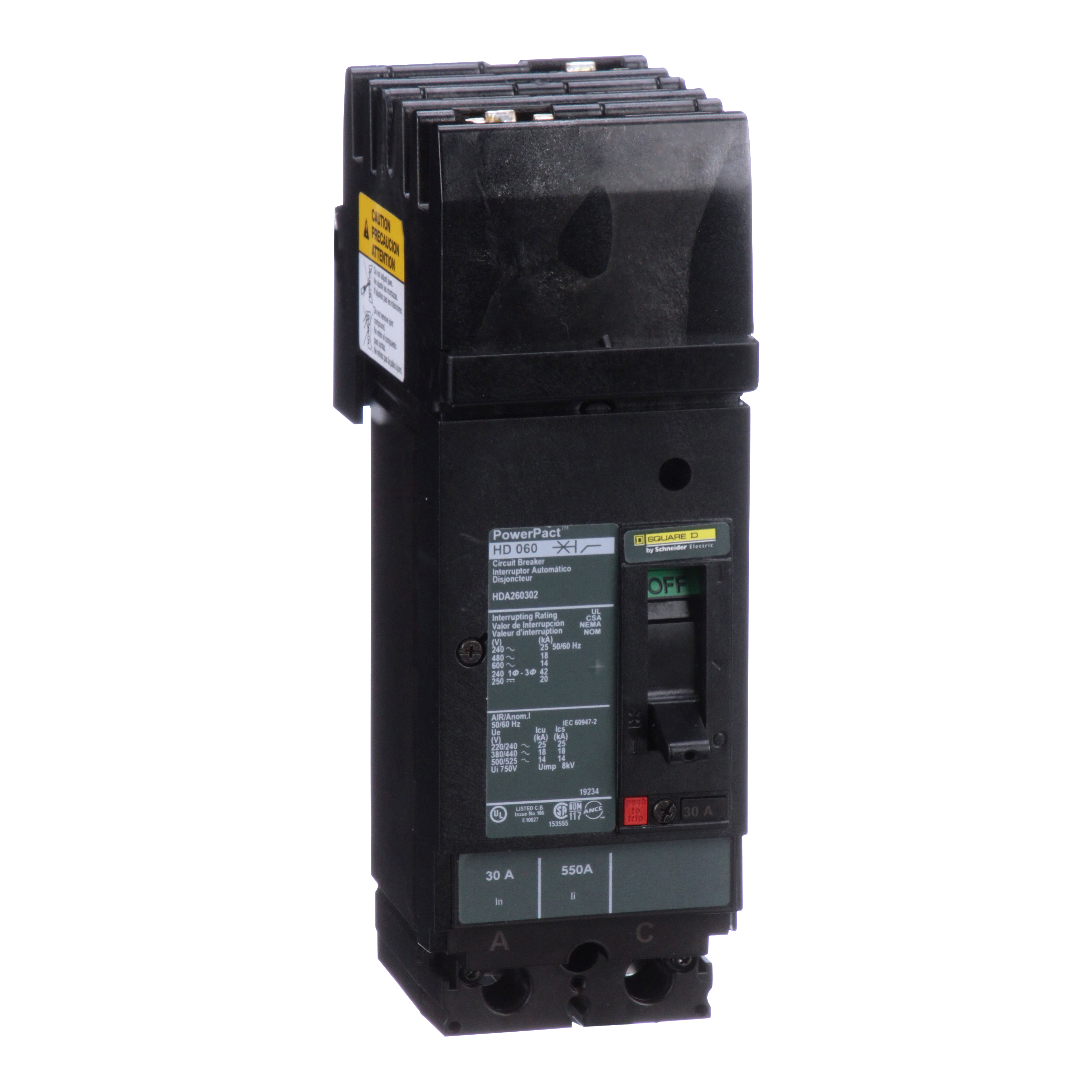

Square D™ I-Line™ PowerPact™ HDA260302 Type HDA Molded Case Circuit Breaker, 600 VAC/250 VDC, 30 A, 2 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ PowerPact™ HDA260302 Type HDA Molded Case Circuit Breaker, 600 VAC/250 VDC, 30 A, 2 Poles
SKU382679
MFGR #HDA260302
Your Cost: $572.97/ea
List: Square D HDA260302 MOLDED CASE CIRCUIT BREAKER 600V 30A,2-Pole,25 kA 240 V AC-18 kA 480 V AC-14 kA 600 V AC,600 V AC,30 A,30 A,350 A,750 A,600 V AC,D,I-Line Connection (ON end) - Lugs (OFF end) AC,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in,thermal-magnetic
Square D HDA260302 MOLDED CASE CIRCUIT BREAKER 600V 30A,2-Pole,25 kA 240 V AC-18 kA 480 V AC-14 kA 600 V AC,600 V AC,30 A,30 A,350 A,750 A,600 V AC,D,I-Line Connection (ON end) - Lugs (OFF end) AC,PowerPact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in,thermal-magnetic
Alternate Catalog Number HDA260302 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number HDA260302 Connection AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD Connection Type I-Line™/Load Lug/Drawout Country of Origin MX Currency USD Dimensions 9.73 in H x 2.94 in W x 4.8 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame H Frequency Rating 50/60 Hz Gross Volume Per Pack 573.75 Gross Volume per Pack Metric 9402.04 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.1000 lb Gross Weight per Pack Metric 1.86 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 11.9380 in Height [Metric] 11.4000 cm Item Group 01112 Length 37.8460 in Length [Metric] 37.8000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421133&lang=en-us Mounting Type Plug-In Number Of Poles 2 Operating Temperature 40 °C Phase 1 pH Returnable Y Standard CE-UL LISTED-IEC-CSA Sub Brand POWERPACT Substitute Product Catalog Number S29386 Temperature Rating 104 °F Trip Range 350 to 750 A Type Type HDA UNSPSC 39121601 UPC 11 78590141645 UPC 12 785901416456 Warranty Description Contractual Warranty:18 months Width 21.5900 in Width [Metric] 21.8000 cm Wire Size 14 to 3/0 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Interrupt Rating 18/25/14/20 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields Flexible and simple offer, with proven performance Direct access to energy metering and energy efficiency AC-phase connection 18 kA at 480 VAC, 25 kA at 240 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | HDA260302 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HDA260302 |
| Connection | AWG 14...AWG 3/0 ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD |
| Connection Type | I-Line™/Load Lug/Drawout |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 9.73 in H x 2.94 in W x 4.8 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | H |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 573.75 |
| Gross Volume per Pack Metric | 9402.04 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.1000 lb |
| Gross Weight per Pack Metric | 1.86 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 11.9380 in |
| Height [Metric] | 11.4000 cm |
| Item Group | 01112 |
| Length | 37.8460 in |
| Length [Metric] | 37.8000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421133&lang=en-us |
| Mounting Type | Plug-In |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 pH |
| Returnable | Y |
| Standard | CE-UL LISTED-IEC-CSA |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | S29386 |
| Temperature Rating | 104 °F |
| Trip Range | 350 to 750 A |
| Type | Type HDA |
| UNSPSC | 39121601 |
| UPC 11 | 78590141645 |
| UPC 12 | 785901416456 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 21.5900 in |
| Width [Metric] | 21.8000 cm |
| Wire Size | 14 to 3/0 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Interrupt Rating | 18/25/14/20 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE |
| Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields |
| Flexible and simple offer, with proven performance |
| Direct access to energy metering and energy efficiency |
| AC-phase connection |
| 18 kA at 480 VAC, 25 kA at 240 VAC, 14 kA at 600 VAC, 20 kA at 250 VDC interrupt rating |
