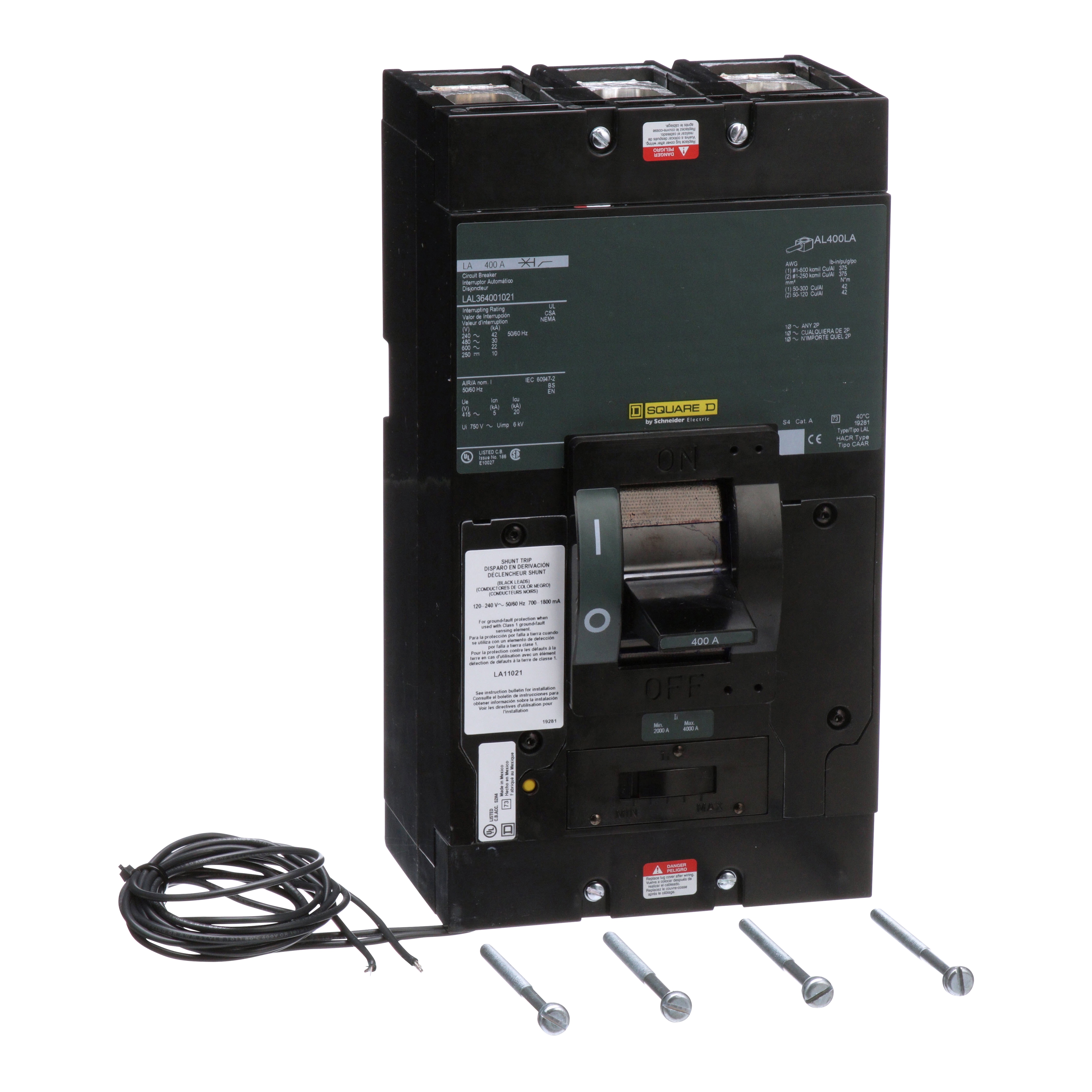

Square D™ I-Line™ LAL364001021 Type LAL Standard Molded Case Circuit Breaker With Shunt Trip, 600 VAC/250 VDC, 400 A
Custom_Product_Images_Illustration
Square D™ I-Line™ LAL364001021 Type LAL Standard Molded Case Circuit Breaker With Shunt Trip, 600 VAC/250 VDC, 400 A
SKU97777
MFGR #LAL364001021
Your Cost: $3,114.53/ea
List: Square D LAL364001021 MOLDED CASE CIRCUIT BREAKER 600V 400A,10 kA at 125 V DC-10 kA at 250 V DC-22 kA at 600 V AC-30 kA at 480 V AC-42 kA at 240 V AC,250 V DC-600 V AC,2000...4000 A,400 A,250 V DC-600 V AC,3P,400 A,L-Frame,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Square D LAL364001021 MOLDED CASE CIRCUIT BREAKER 600V 400A,10 kA at 125 V DC-10 kA at 250 V DC-22 kA at 600 V AC-30 kA at 480 V AC-42 kA at 240 V AC,250 V DC-600 V AC,2000...4000 A,400 A,250 V DC-600 V AC,3P,400 A,L-Frame,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Actuator Type Toggle Alternate Catalog Number LAL364001021 ARRA Compliant N Buy American Compliant N Catalog Number LAL364001021 Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 11 in H x 6 in W x 5.84 in D EU RoHS Indicator Y Frame L Gross Volume Per Pack 2052.00 Gross Volume per Pack Metric 33626.12 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 16.8400 lb Gross Weight per Pack Metric 7.64 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 22.6060 in Height [Metric] 23.1000 cm Item Group 00935 Length 44.1960 in Length [Metric] 44.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428505&lang=en-us Mounting Type Unit Number Of Poles 3 Phase 3 pH Returnable N Standard IEC-CSA-UL LISTED Trip Range 2000 A, 400 A, 4000 A Type Standard UNSPSC 39121601 UPC 11 78590133949 UPC 12 785901339496 Warranty Description Contractual Warranty:18 months Width 29.2100 in Width [Metric] 29.2000 cm Wire Size (1) 1 AWG to (1) 600 kcmil, (2) 250 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Interrupt Rating 10/220 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC UNIT MOUNT AL400LA terminal identifier 42 kA at 240 VAC, 30 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125 VDC, 10 kA at 250 VDC interrupt rating AL400LA terminal
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | LAL364001021 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LAL364001021 |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11 in H x 6 in W x 5.84 in D |
| EU RoHS Indicator | Y |
| Frame | L |
| Gross Volume Per Pack | 2052.00 |
| Gross Volume per Pack Metric | 33626.12 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 16.8400 lb |
| Gross Weight per Pack Metric | 7.64 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 22.6060 in |
| Height [Metric] | 23.1000 cm |
| Item Group | 00935 |
| Length | 44.1960 in |
| Length [Metric] | 44.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428505&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | N |
| Standard | IEC-CSA-UL LISTED |
| Trip Range | 2000 A, 400 A, 4000 A |
| Type | Standard |
| UNSPSC | 39121601 |
| UPC 11 | 78590133949 |
| UPC 12 | 785901339496 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.2100 in |
| Width [Metric] | 29.2000 cm |
| Wire Size | (1) 1 AWG to (1) 600 kcmil, (2) 250 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Interrupt Rating | 10/220 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC |
| UNIT MOUNT |
| AL400LA terminal identifier |
| 42 kA at 240 VAC, 30 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125 VDC, 10 kA at 250 VDC interrupt rating |
| AL400LA terminal |
