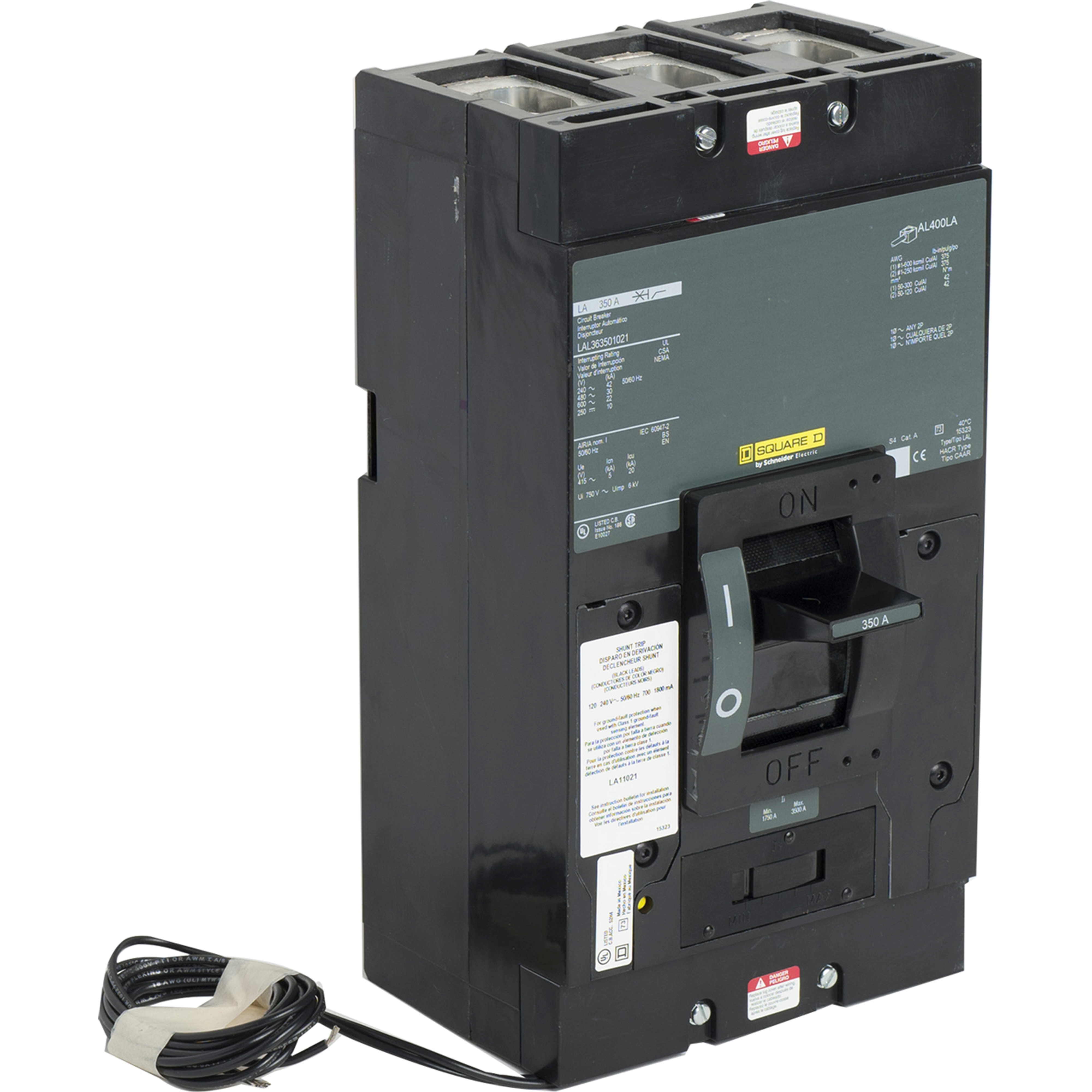

Square D™ I-Line™ LAL363501021 Molded Case Circuit Breaker, 600 VAC/250 VDC, 350 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ LAL363501021 Molded Case Circuit Breaker, 600 VAC/250 VDC, 350 A, 3 Poles
SKU375126
MFGR #LAL363501021
Your Cost: $3,114.53/ea
List: Square D LAL363501021 MOLDED CASE CIRCUIT BREAKER 600V 350A,10 kA at 125 V DC-10 kA at 250 V DC-30 kA at 480 V AC-22 kA at 600 V AC-42 kA at 240 V AC,250 V DC-600 V AC,1750...3500 A,350 A,250 V DC-600 V AC,350 A,3P,L-Frame,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Square D LAL363501021 MOLDED CASE CIRCUIT BREAKER 600V 350A,10 kA at 125 V DC-10 kA at 250 V DC-30 kA at 480 V AC-22 kA at 600 V AC-42 kA at 240 V AC,250 V DC-600 V AC,1750...3500 A,350 A,250 V DC-600 V AC,350 A,3P,L-Frame,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Actuator Type Toggle Alternate Catalog Number LAL363501021 ARRA Compliant N Buy American Compliant N Catalog Number LAL363501021 Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE Connection Type Line/Load Lugs Country of Origin MX Currency USD Dimensions 11 in H x 6 in W x 5.84 in D EU RoHS Indicator Y Frame L Frame Frequency Rating 50/60 Hz Gross Volume Per Pack 1827.00 Gross Volume per Pack Metric 29939.05 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 16.7800 lb Gross Weight per Pack Metric 7.61 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 22.8600 in Height [Metric] 22.8600 cm Item Group 00935 Length 44.4500 in Length [Metric] 44.4500 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428399&lang=en-us Mounting Type Unit Number Of Poles 3 Phase 3 pH Returnable N Standard IEC-UL LISTED-CSA Temperature Rating -13 to 158 °F Trip Range 1750 to 3500 A Type Type LAL UNSPSC 39121601 UPC 11 78590133948 UPC 12 785901339489 Warranty Description Contractual Warranty:18 months Width 29.4640 in Width [Metric] 29.4640 cm Wire Size 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 350 A Interrupt Rating 42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125/250 VDC Trip Type Thermal Magnetic/Shunt Trip Voltage Rating 600 VAC/250 VDC UNIT MOUNT 42 kA at 240 VAC, 30 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125 VDC, 10 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | LAL363501021 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LAL363501021 |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lugs |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11 in H x 6 in W x 5.84 in D |
| EU RoHS Indicator | Y |
| Frame | L Frame |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1827.00 |
| Gross Volume per Pack Metric | 29939.05 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 16.7800 lb |
| Gross Weight per Pack Metric | 7.61 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 22.8600 in |
| Height [Metric] | 22.8600 cm |
| Item Group | 00935 |
| Length | 44.4500 in |
| Length [Metric] | 44.4500 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428399&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | N |
| Standard | IEC-UL LISTED-CSA |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 1750 to 3500 A |
| Type | Type LAL |
| UNSPSC | 39121601 |
| UPC 11 | 78590133948 |
| UPC 12 | 785901339489 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.4640 in |
| Width [Metric] | 29.4640 cm |
| Wire Size | 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 350 A |
| Interrupt Rating | 42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125/250 VDC |
| Trip Type | Thermal Magnetic/Shunt Trip |
| Voltage Rating | 600 VAC/250 VDC |
| UNIT MOUNT |
| 42 kA at 240 VAC, 30 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125 VDC, 10 kA at 250 VDC interrupt rating |
