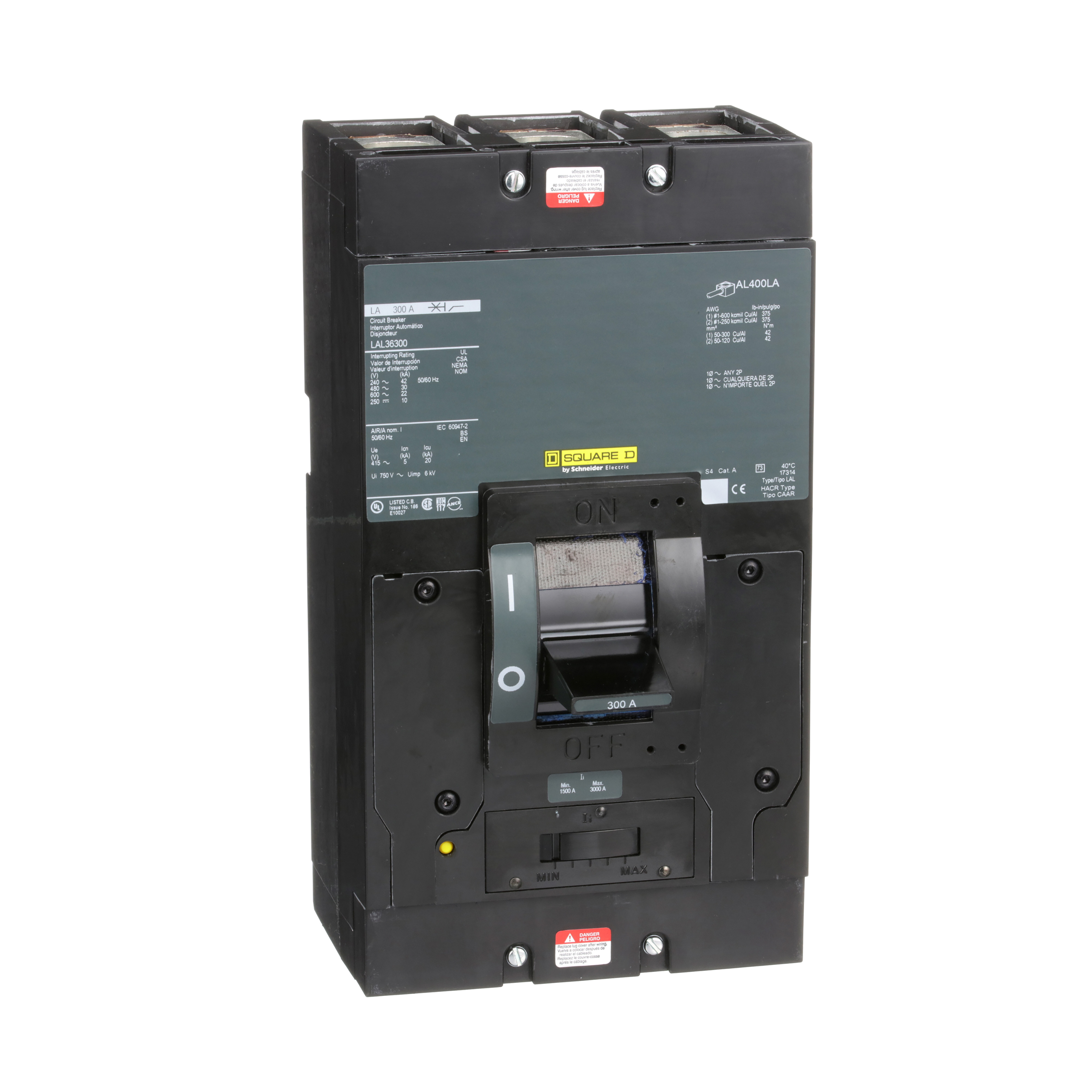

Square D™ I-Line™ LAL36300 Type LAL Standard Molded Case Circuit Breaker, 600 VAC/250 VDC, 300 A, 10 to 22 kA Interrupt
Molded Case Circuit Breakers
33316
MFG #: LAL36300
Square D™
2943.92000
/ ea
Square D LAL36300 MOLDED CASE CIRCUIT BREAKER 600V 300A,300 A,50/60 Hz,600 V AC,L-frame,Molded Case Circuit Breaker,Thermal Magnetic,UL, CSA
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8046242360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=LAL36300(3D Rendering URL)
- Brochure URL - e9f87798d24f515013ee85317d5fec2b373cba12.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_7e3b07b05c8d33c7fcb64ea19cb7d3fab67f1ecc4293fb50c9b5163a7211476d.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_I6V2BROH0S7GFUZM.pdf(Install Instructions 1 URL)
- Install Instructions URL - files?p_Doc_Ref=48049-034-04(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_H6BSYD5VE94OW8AZ.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_3B5N0SQZMCV2YPGK.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_UJ5NOAZ0EV83TSRK.pdf(Tech Drawing URL)
- Tech Bulletin URL - 11003_E31DYQAR924IXNFJ.pdf(Tech Bulletin URL)
- User Manual URL - 11003_IUWM5CQKV63TGP8O.pdf(User Manual URL)
- Tech Drawing URL - 11003_T71GVIMCHPO9NKAZ.pdf(Tech Drawing URL)
- Tech Bulletin URL - files?p_enDocType=Data Bulletin&p_File_Name=0600DB1004.pdf(Tech Bulletin URL)
- User Manual URL - 11003_I2FG5HLETCJ8W1NO.pdf(User Manual URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=LA_LC_LH_3P_400A_OUTLINE_001.dwg(Tech Drawing URL)
- Features
| UNIT MOUNT |
| Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions |
| Thermal magnetic circuit breakers use bi-metals and electromagnetic assemblies to provide overcurrent protection |
| Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads |
| 42 kA at 240 VAC, 30 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125 VDC, 10 kA at 250 VDC interrupt rating |
| 400 A frame |
| Unit mount |
| AL400LA terminal |
