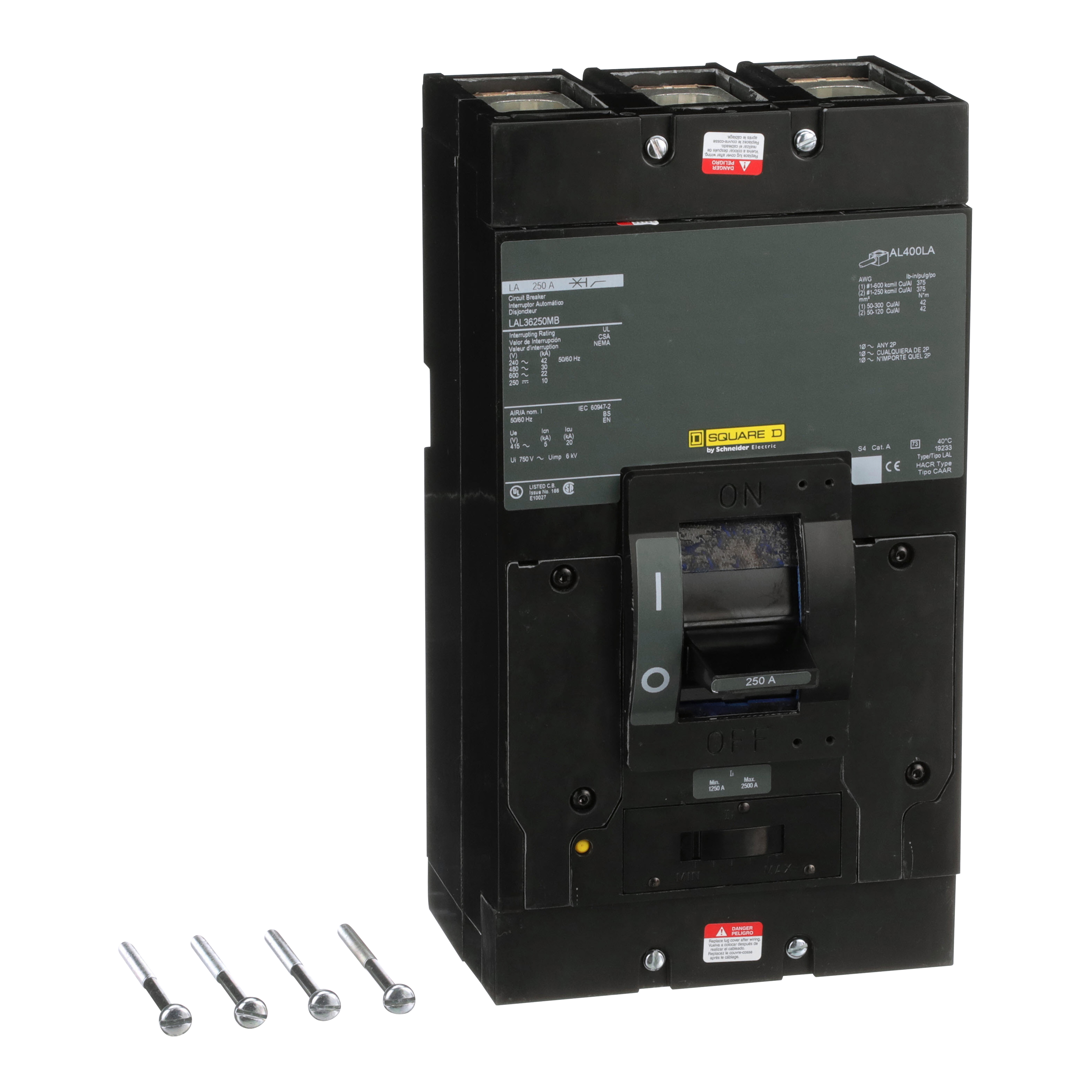

Square D™ I-Line™ LAL36250MB Molded Case Circuit Breaker With Short Lever Operator, 600 VAC/250 VDC, 250 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ LAL36250MB Molded Case Circuit Breaker With Short Lever Operator, 600 VAC/250 VDC, 250 A, 3 Poles
SKU361602
MFGR #LAL36250MB
Your Cost: $2,603.80/ea
List: Square D LAL36250MB MOLDED CASE CIRCUIT BREAKER 600V 250A,250 A,50/60 Hz,600 V,L-Frame,Molded Case Circuit Breaker,Thermal Magnetic
Square D LAL36250MB MOLDED CASE CIRCUIT BREAKER 600V 250A,250 A,50/60 Hz,600 V,L-Frame,Molded Case Circuit Breaker,Thermal Magnetic
Actuator SHORT LEVER Actuator Type Short Lever Alternate Catalog Number LAL36250MB ARRA Compliant N Buy American Compliant N Catalog Number LAL36250MB Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE Connection Type Line/Load Lugs Country of Origin MX Currency USD Dimensions 11 in H x 6 in W x 5.84 in D EU RoHS Indicator Y Frame L Frame Frequency Rating 50/60 Hz Gross Volume Per Pack 1811.25 Gross Volume per Pack Metric 29680.95 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 16.2500 lb Gross Weight per Pack Metric 7.37 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 22.8600 in Height [Metric] 23.1000 cm Item Group 00935 Length 44.4500 in Length [Metric] 43.9000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428225&lang=en-us Mounting Type Unit Number Of Poles 3 Phase 3 pH Returnable Y Standard IEC-CSA-UL LISTED Substitute Product Catalog Number AL400LA Temperature Rating -13 to 158 °F Trip Range 1250 to 2500 A Type Type LAL UNSPSC 39121601 UPC 11 78590100554 UPC 12 785901005544 Warranty Description Contractual Warranty:18 months Width 29.2100 in Width [Metric] 29.7000 cm Wire Size 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125/250 VDC Trip Type Thermal Magnetic Voltage Rating 600 VAC/250 VDC V UNIT MOUNT 42 kA at 240 VAC, 30 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125 VDC, 10 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator | SHORT LEVER |
| Actuator Type | Short Lever |
| Alternate Catalog Number | LAL36250MB |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LAL36250MB |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lugs |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11 in H x 6 in W x 5.84 in D |
| EU RoHS Indicator | Y |
| Frame | L Frame |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1811.25 |
| Gross Volume per Pack Metric | 29680.95 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 16.2500 lb |
| Gross Weight per Pack Metric | 7.37 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 22.8600 in |
| Height [Metric] | 23.1000 cm |
| Item Group | 00935 |
| Length | 44.4500 in |
| Length [Metric] | 43.9000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428225&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | IEC-CSA-UL LISTED |
| Substitute Product Catalog Number | AL400LA |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 1250 to 2500 A |
| Type | Type LAL |
| UNSPSC | 39121601 |
| UPC 11 | 78590100554 |
| UPC 12 | 785901005544 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.2100 in |
| Width [Metric] | 29.7000 cm |
| Wire Size | 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 A |
| Interrupt Rating | 42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125/250 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC/250 VDC V |
| UNIT MOUNT |
| 42 kA at 240 VAC, 30 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125 VDC, 10 kA at 250 VDC interrupt rating |
