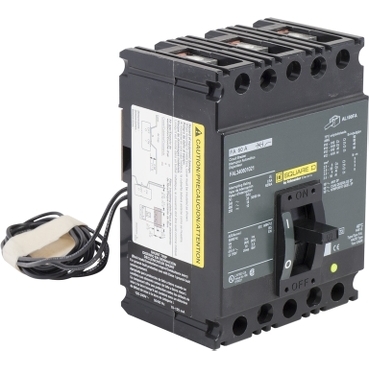

Square D™ I-Line™ FAL340601021 Type FA Molded Case Circuit Breaker, 480 VAC/250 VDC, 60 A, 3 Poles
Custom_Product_Images_Illustration
Square D™ I-Line™ FAL340601021 Type FA Molded Case Circuit Breaker, 480 VAC/250 VDC, 60 A, 3 Poles
SKU96698
MFGR #FAL340601021
Your Cost: $1,636.91/ea
List: Square D FAL340601021 MOLDED CASE CIRCUIT BREAKER 480V 60A,3P,480 V AC,60 A,Circuit Breaker,F-Frame,Thermal Magnetic,UL Listed
Square D FAL340601021 MOLDED CASE CIRCUIT BREAKER 480V 60A,3P,480 V AC,60 A,Circuit Breaker,F-Frame,Thermal Magnetic,UL Listed
Catalog Number FAL340601021 Connection Type Line/Load Lugs Country of Origin MX Dimensions 6.4 in H x 4.5 in W x 4.13 in D Enclosure Type NEMA 1/3R/4/4X/5/7/9/12 Frame F Frequency Rating 50/60 Hz Gross Weight Per Pack 5.1200 lb Item Group 00902 Mounting Type Unit Number Of Poles 3 Phase 3 pH Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E10027CSA C22.2 No. 5-02 File No. LR7551Federal Specification W-C-375B/GENNEMA AB1IEC 60947-2HACR Ratedeccn: EAR99 Temperature Rating 50 °C Trip Range 800 to 1450 A Type Type FA UNSPSC 39121616 UPC 11 78590112896 UPC 12 78590112896 Wire Size 12 to 1/0 AWG Al/14 to 1/0 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 60 A Interrupt Rating 25 kA at 240 VAC/18 kA at 480 VAC/10 kA at 250 VDC Trip Type Thermal Magnetic/Shunt Trip Voltage Rating 480 VAC/250 VDC UNIT MOUNT 100 A frame size Lugs on both ends 18 kA at 480 VAC, 25 kA at 240 VAC, 10 kA at 250 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | FAL340601021 |
| Connection Type | Line/Load Lugs |
| Country of Origin | MX |
| Dimensions | 6.4 in H x 4.5 in W x 4.13 in D |
| Enclosure Type | NEMA 1/3R/4/4X/5/7/9/12 |
| Frame | F |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 5.1200 lb |
| Item Group | 00902 |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E10027CSA C22.2 No. 5-02 File No. LR7551Federal Specification W-C-375B/GENNEMA AB1IEC 60947-2HACR Ratedeccn: EAR99 |
| Temperature Rating | 50 °C |
| Trip Range | 800 to 1450 A |
| Type | Type FA |
| UNSPSC | 39121616 |
| UPC 11 | 78590112896 |
| UPC 12 | 78590112896 |
| Wire Size | 12 to 1/0 AWG Al/14 to 1/0 AWG Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 60 A |
| Interrupt Rating | 25 kA at 240 VAC/18 kA at 480 VAC/10 kA at 250 VDC |
| Trip Type | Thermal Magnetic/Shunt Trip |
| Voltage Rating | 480 VAC/250 VDC |
| UNIT MOUNT |
| 100 A frame size |
| Lugs on both ends |
| 18 kA at 480 VAC, 25 kA at 240 VAC, 10 kA at 250 VDC interrupt rating |
